Car Speakers

JVC HX Car Coaxial Speakers

Shallow, Slim Size Makes Installation Easier

JVC Mobile Entertainment’s HX speaker line includes five models that sport a shallow, slim design, providing easier installation in a wide variety of vehicles. All HX Series Speakers feature twin roll edge woofers that create less interference for the woofer projection and provide increased amplitude, increased sound pressure, and less distortion.

Tweeter/Midrange towers have also been designed to be slimmer within the speaker structure, which creates a more suitable mounting option behind factory panel locations. The 6.5″ coaxial versions (CS-HX648X and CS-HX638X) also feature universal mounting-hole patterns for easier upgrading of OEM-type speakers. Two new sizes are now offered in both 4″ and Oversized 6-3/4″ Coaxial versions.

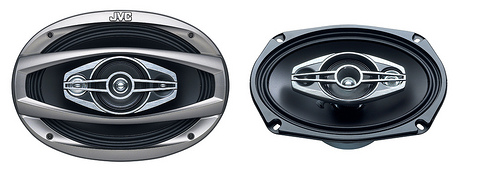

JVC CS-HX6958X

JVC Mobile’s CS-HX6958X is a 6″ x 9″ 5-way coaxial speaker with a frequency response of 25Hz to 30,000Hz and 510W peak / 80W RMS power handling. The speaker is composed of aramid fiber and carbon fiber composite olefin cone woofer, poly-ether imide tweeters, and contains a heat-resistant voice coil. The CS-HX6958X speaker will carry an MSRP of $149.95.

JVC CS-HX6948X
JVC CS-HX6948X

Also in the lineup is the CS-HX6948X 4-way 6″ x 9″ coaxial speaker with a frequency response of 25Hz to 30,000Hz and 490 peak/80W RMS power handling. The speaker is also built with a strontium magnet in the woofer, for superior midrange sound. The CS-HX6948X has an MSRP of $119.95.

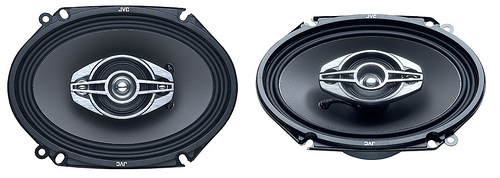

JVC CS-HX6848X
JVC CS-HX6848X

Also in the lineup is the CS-HX6848X 4-way 6″ x 8″ / 5″ x 7″ coaxial speaker with a frequency response of 30Hz to 25,000Hz and 310 peak/50W RMS power handling. The speaker is also built with a strontium magnet in the woofer, for superior midrange sound. The CS-HX6848X has an MSRP of $89.95.

Advertisement. Scroll to continue reading.

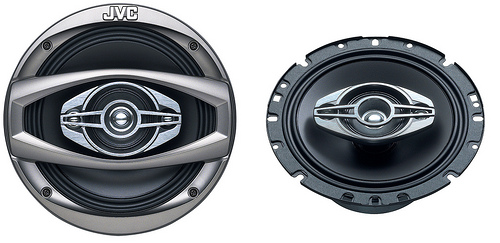

JVC CS-HX748X
JVC CS-HX748X

JVC Mobile’s CS-HX748X is a 4-way 6-3/4″ coaxial speaker with a frequency response of 30Hz to 25,000Hz and 310 peak/50W RMS power handling. The speaker is composed of aramid fiber and carbon fiber composite olefin cone woofer, poly-ether imide tweeters, and contains a heat-resistant voice coil. The CS-HX748X has an MSRP of $119.95.

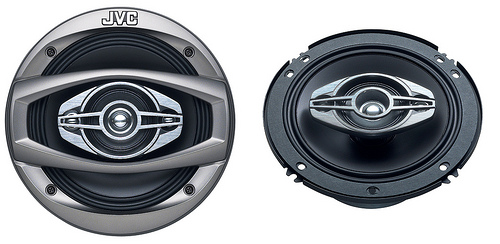

JVC CS-HX648X
JVC CS-HX648X

JVC Mobile’s CS-HX648X is a 6.5″ round, 4-way coaxial speaker with a frequency response of 30Hz to 25,000Hz and 310W peak/50W RMS. The CS-HX648X features a strontium magnet and neodymium magnet for superior midrange, as well as a heat-resistant voice coil. The CS-HX648X speakers have an MSRP of $109.95.

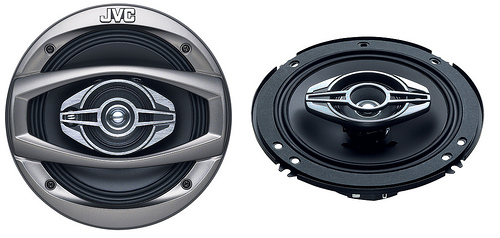

JVC CS-HX638X
JVC CS-HX638X

A second 6.5″ coaxial speaker, the CS-HX638X, is a 3-way configuration with a shallow, slim design for more versatile installation. The speaker has a frequency response of 30Hz to 25,000Hz and 250W peak/40W RMS. The CS-HX638X also features a strontium magnet and neodymium magnet for improved sound midrange, as well as a heat-resistant voice coil. The CS-HX638X speakers have an MSRP of $79.95.

JVC CS-HX538X
JVC CS-HX538X

The CS-HX538X is a 5.25″, 3-way coaxial speaker. The speaker features a frequency response of 30Hz to 25,000Hz and 230W peak/40W RMS power handling. The speaker is composed of aramid fiber and carbon fiber composite olefin cone woofer, poly-ether imide tweeters, and contains a heat-resistant voice coil. The CS-HX538X speakers have an MSRP of $69.95.

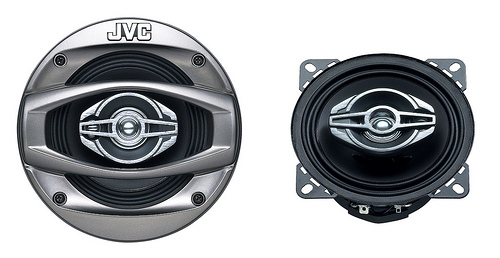

JVC CS-HX438X
JVC CS-HX438X

JVC Mobile’s CS-HX438X is a 3-way 4″ coaxial speaker with a frequency response of 45Hz to 24,000Hz and 160 peak/25W RMS power handling. The speaker is composed of aramid fiber and carbon fiber composite olefin cone woofer, poly-ether imide tweeters, and contains a heat-resistant voice coil. The CS-HX438X has an MSRP of $119.95.
