Car Speakers

JL Audio MX-Series Marine Coaxial Speakers and Subwoofers


JL Audio marine performance made in the USA

Building serious marine products requires a real commitment to environmental testing and materials specification. This testing is critical to building products that will not only sound great in your boat, but will also sound great for many, many years. JL Audio’s new MX-Series products are designed and built to greatly exceed industry standards for Salt-Fog and UV exposure and are covered by a 2-Year Limited Warranty.

The MX-Series coaxials are acoustically engineered to deliver powerful, clean sound in open-air boat environments. Their 0.75-inch silk dome tweeters deliver sparkling high frequency detail, while the long excursion, high-efficiency woofer delivers impressive bass energy and clean mid-range. The MX coaxials are well suited for operation with an amplifier, or even with head unit power, and are available in a standard, drop-in marine 6.5-inch model and an oversized 7.7-inch design for those seeking additional output and efficiency.

MX770-CCX Coaxial System

The new MX10IB3 subwoofers deliver stunning low-frequency performance without the need for a dedicated enclosure. Their infinite-baffle design makes them well-suited for a variety of installation locations. Long-excursion capability and DMA-optimized motor systems keep the bass clean and tight, even at the high listening levels needed to overcome wind and motor noise.

According to Manville Smith, V.P. of Marketing for JL Audio, “These American-built products make high-end audio performance accessible to a greater number of boaters than ever before.”

MX10IB3 Subwoofer Driver Features

  • Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated for marine duty
  • Marine-grade, synthetic fiber spider with progressive roll design
  • DMA-optimized long-excursion design for enhanced output, bass extension and power handling
  • UV-resistant polymer baskets
  • Optimized for infinite baffle operation
  • Nominal Diameter: 10 in. (250 mm)
  • Actual Outside Diameter: 10.75 in. (273 mm)
  • Continuous Power Handling: 175W
  • Xmax: 0.41 in. (10.4 mm) one-way, linear
  • Impedance: 4 ohm
  • Mounting Depth: 5.02 in. (128 mm)
  • MSRP: $229.95
  • Availability: 2nd Quarter, 2009

MX Coaxial Speaker Systems Woofer Features

  • Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated for marine duty
  • Marine-grade, synthetic fiber spider with progressive roll design
  • Precisely engineered dust cap profile for smooth upper-end response
  • DMA-optimized long-excursion design for enhanced output, bass extension and power handling
  • UV-resistant polymer baskets
  • Optimized for cockpit-mount (infinite baffle)
  • Tweeter Features
    • Neodymium motor system
    • 0.75-inch silk dome diaphragm with specifically formulated treatment to withstand UV and salt-spray exposure
    • Ferrofluid-cooled and damped for improved response and power handling
    • Permanent grille-mounted design ensures optimal high-frequency performance with no loss of woofer radiating area
  • Crossover Features
    • Natural woofer rolloff with 2nd order high-pass filter on tweeter
    • Solid-state tweeter protection prevents tweeter failures due to abuse and resets automatically.

MX650-CCX Coaxial System (standard, wide-flange speaker is a direct replacement for most marine 6.5-inch speakers.)

  • Nominal Diameter: 6.50 in. (165 mm)
  • Actual Outside Diameter: 6.90 in. (175 mm)
  • Continuous Power Handling: 75W
  • Impedence: 4 ohm
  • Mounting Depth: 2.74 in. (69.5 mm)
  • MSRP: $279.95/pr. Availability: Now

MX770-CCX Coaxial System

  • Nominal Diameter: 7.7 in. (196 mm)
  • Actual Outside Diameter: 7.70 in. (196 mm)
  • Continuous Power Handling: 75W
  • Impedence: 4 ohm
  • Mounting Depth: 3.15 in. (80 mm)
  • MSRP: $339.95/pr. Availability: 2nd Quarter, 2009

New for 2009…

  • Sport Grilles in Black/Titanium now available for Enclosed Tower Coaxial Speaker Systems
    • Availability: February, 2009
  • Engineered as a complete system
    • Systems incorporate a marine coaxial specifically engineered for small box operation to deliver excellent sound quality.
  • Fiberglass Construction
    • Rock-solid fiberglass construction with a smooth gel-coat finish for durability.
    • Beautiful polished aluminum accents add a dramatic, high-end touch.
  • Flexible mounting options
    • Designed to mount with tower mounting hardware featuring a quick-release, adjustable rotation mechanism or with hardware designed for deck mounting.
    • All mounting hardware is true saltwater grade, forged/machined aluminum.

Enclosed Coaxial Speaker Models

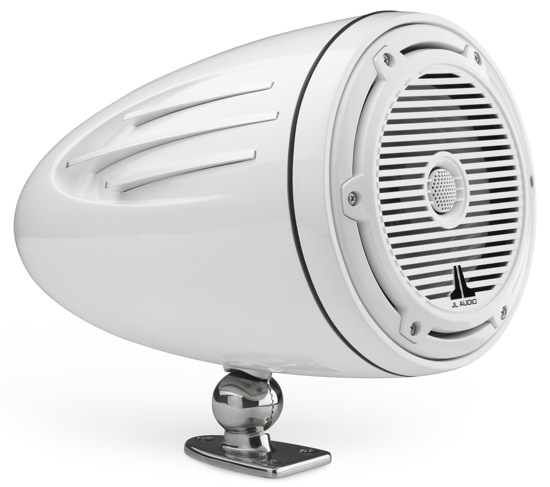

M770-ETX:

  • 7.7-inch Tower Coaxial Enclosed System, 100W, 4 ohms
  • White with Classic Grille or Black / Titanium with Sport Grille
  • Individual mounting fixtures to fit a wide range of pipe sizes are sold separately.
  • MSRP: $1,199.95/pr.

M770-ETX-DM:

  • 7.7-inch Deck-Mount Coaxial Enclosed System, 100W, 4 ohms
  • White with Classic Grille only.
  • Deck-mounting hardware is included.
  • MSRP: $1,199.95/pr.
  • Deck-Mount Coaxial Enclosed Systems include mounting hardware.

Now Available: Sport Grilles for M770-CCX Coaxials:

  • MSRP: $469.95/pr.
  • Availability: Now
M770-ETX-DM-CG-WH-FRT

This aggressively styled spoked grille design features interchangeable logo badges in different colors and looks great in sport-styled boats. Available in all-white and titanium / black color combinations.

White speakers with Sport Grilles include white, black and red interchangeable logo badges to customize your installation.

Titanium / Black speakers with Sport Grilles include titanium, black and red interchangeable logo badges to customize your installation.

New for 2009…

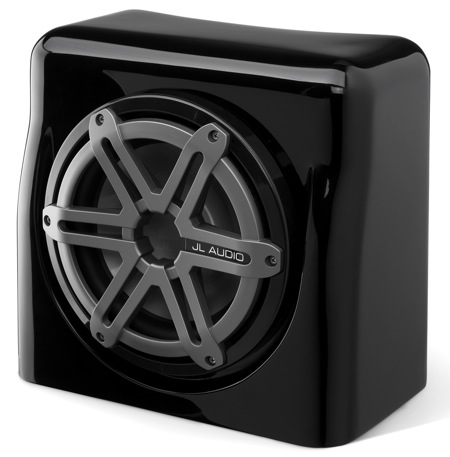

FS110W5-SG-TB
Enclosed, All-Fiberglass Subwoofer System featuring our M10 W5 Subwoofer Driver

  • Sealed Enclosure
  • Durable Gel-Coat Finish
  • Available in two versions:
    • White with Classic Grille: FS110-W5-CG-WH
    • Black with Sport Grille: FS110-W5-SG-TB
  • MSRP: $649.95
  • Availability: 1st Quarter, 2009
