Nagaoka Unveils MP-700 Moving Permalloy Phono Cartridge Ahead of High End Munich 2025

With a non-traditional phono cartridge design, NAGAOKA’s MP-700 elevates the vinyl record listening experience at a rather steep price.

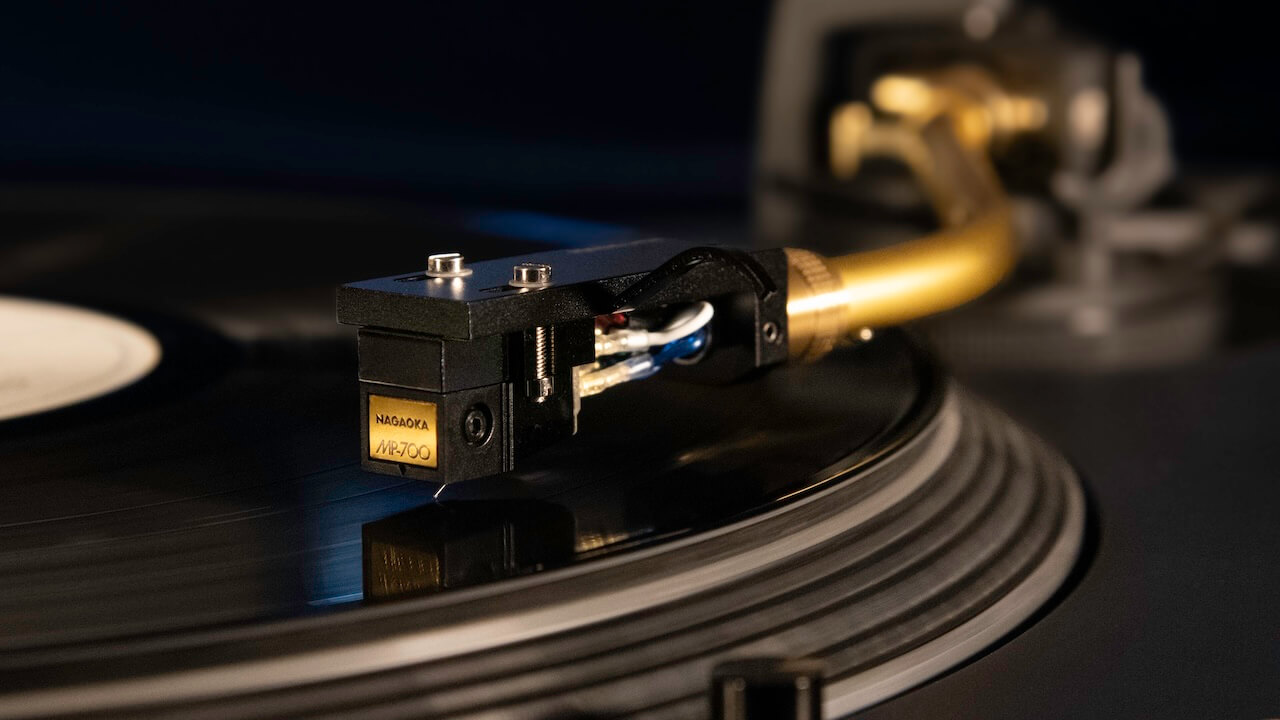

NAGAOKA MP-700 Phono Cartridge Playing Vinyl Record

Nagaoka, a renowned manufacturer of phono styli and cartridges, has announced its new flagship model in the esteemed MP Series — the MP-700. The cartridge will make its official debut at High End Munich 2025, running from May 15th through 18th. Fittingly, this marks the cartridge’s premiere at the final Munich edition of the show before it relocates to Austria in 2026.

Nagaoka takes a unique approach with the MP-700, opting for a Moving Permalloy (MP) design rather than a conventional Moving Magnet (MM) configuration. In this setup, a lightweight permalloy element is affixed to the cantilever, significantly reducing moving mass. This allows the stylus to track with greater speed, freedom, and precision—resulting in more refined, detailed, and accurate sound reproduction.

NAGAOKA MP-700 Phono Cartridge

The MP-700 features a boron cantilever paired with a newly developed micro-ridge nude diamond stylus measuring 0.12 x 0.3 mil. This high-performance combo boosts accuracy and detail retrieval, allowing it to extract the finest nuances from vinyl grooves.

To further optimize performance, the MP-700 uses the softest damper in the entire NAGAOKA MP series, enabling the boron cantilever and stylus to operate with greater freedom and sensitivity. While a softer damper can sometimes raise concerns about stability, NAGAOKA has countered this with a newly integrated suspension wire in the pivot system—delivering both responsiveness and control.

The suspension wire effectively manages the movement of both the cantilever and stylus, ensuring stability without compromising clarity—especially in the high frequencies. The result is improved separation, detail across the frequency spectrum, and more accurate bass and timbral reproduction. The MP-700 delivers a vivid, lifelike listening experience that brings your vinyl collection to life.

The MP-700 comes with a shielded case and cartridge frame crafted from ultra-duralumin, enhanced with a three-layer surface treatment: nickel plating, black tin plating, and an insulating coating. This treatment minimizes static interference, improves heat and wear resistance, and preserves the exterior’s longevity.

Nagaoka MP-700 Case

Specifications

Nagaoka ModelMP-700
Product Type Phono Cartridge – Moving Permalloy
Price$1,399
Output Voltage (1 kHz, 5cm/sec)4mV
Frequency Response 20-27,000 Hz
Channel Separation (1 kHz) 30 dB
Channel Balance (1 kHz)1.0 dB or less
Recommended Load Impedance:47 KΩ
Recommended Load Capacitance100 pF
Vertical Tracking Force1.4 g
CantileverBoron
Stylus Tip Micro-ridge Naked Diamond
Cartridge Weight8.0 g
Cartridge & Headshell Weight26.3 g
Replacement StylusJN-P700
NAGAOKA MP-700H Phono Cartridge

The Bottom Line

There are a wide range of phono cartridges available, and the NAGAOKA MP-110 from our 2024 Editors’ Choice list is an affordable option for modest systems. However, if you have a high-end turntable and audio system, the NAGAOKA MP-700’s unique design might deliver the performance you are seeking.

If you are attending High End Munich 2025, NAGAOKA is expected to be on hand showing off its design and capabilities.

Price & Availability

The MP-700 will be available worldwide starting May 13, 2025, commemorating NAGAOKA’s 85 years anniversary.

  • MP-700H: $1,499 (cartridge with headshell)
  • MP-700: $1,399 (cartridge)
  • JN-P700: $789 (Stylus)

Every NAGAOKA cartridge is handcrafted in Japan by skilled artisans, upholding the brand’s commitment to precision and quality.
