TEAC has expanded its Reference 500 Series with the new NT-507T, an all-digital network transport designed for high-resolution audio streaming. Built as a companion to the UD-507 DAC/preamp but compatible with any USB-equipped DAC, the NT-507T features TEAC’s proprietary TRDD-5 discrete DAC and the advanced Network Engine G4, delivering premium performance for audiophiles seeking a dedicated digital streaming solution.
TEAC NT-507T: Pure USB Streaming, No Touchscreen Needed

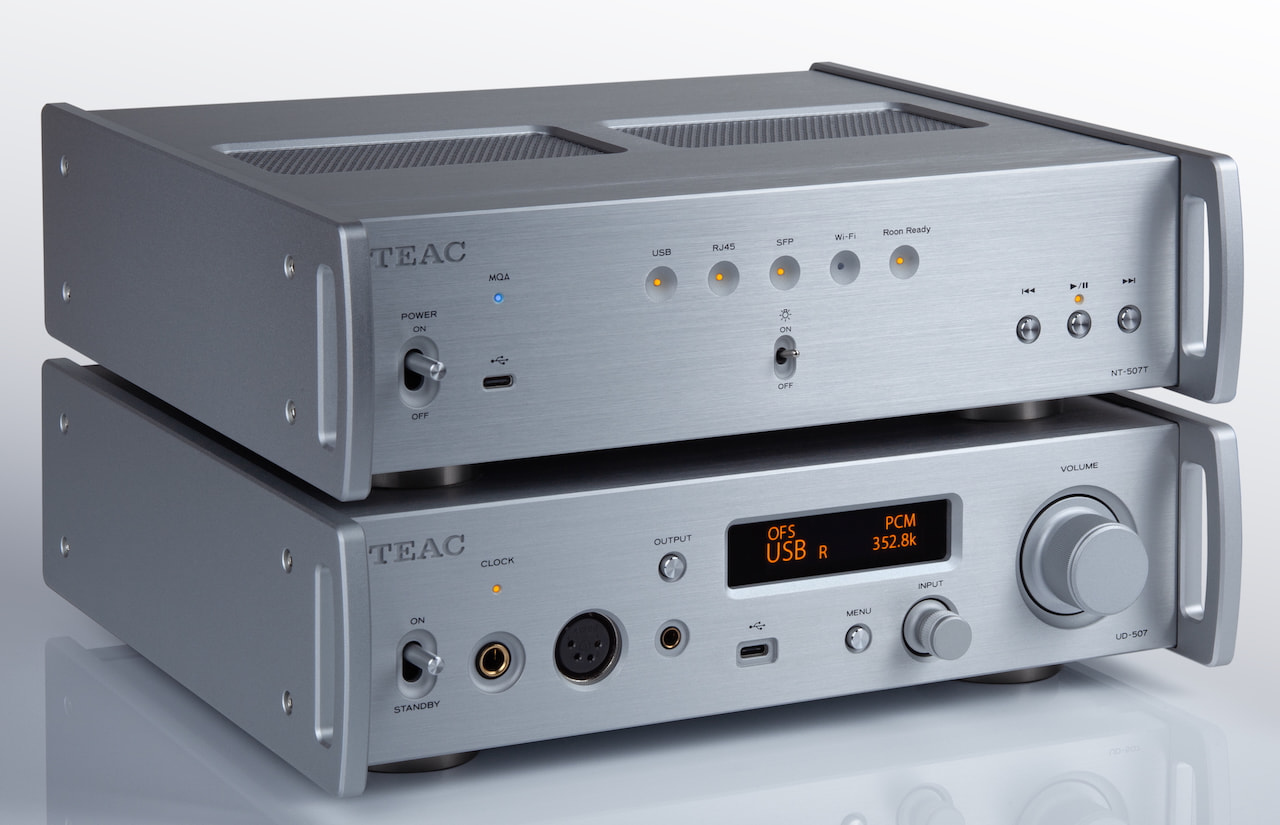

Yet another streamer enters the market—but this one doesn’t include its own DAC. The TEAC NT-507T outputs USB digital audio and pairs with the UD-507 DAC/preamp, which uses TEAC’s TRDD-5 discrete DAC. It is also compatible with any USB-equipped DAC.
TEAC keeps usability front and center with the NT-507T, which works with OpenHome-compatible apps, including TEAC’s own HR Streamer. The USB Volume Function allows users to adjust the volume of connected USB DACs or preamps directly from the app.
The NT-507T supports high-resolution streaming via TIDAL Connect, Spotify Connect, and Qobuz Connect, and includes a dedicated Roon Ready mode for integration with multi-room systems and high-resolution playback setups. Two USB ports allow direct connection of flash drives, HDDs, or SSDs, letting the NT-507T function as a basic music server—no need for a separate NAS.
The TEAC NT-507T is a dedicated digital streaming transport—no DAC, no touchscreen, just a purpose-built USB output for high-purity playback. Connectivity covers dual network interfaces with an integrated switch (SFP + RJ45), SFP optical isolation, Wi-Fi 6, and a high-quality USB Type-A output that handles DSD 22.5 MHz and PCM up to 768 kHz/32-bit.
Inside, a clean toroidal transformer with independent windings supplies dedicated power to the network, USB outputs, Wi-Fi, and LED sections, while discrete DC regulators and a linear power supply replace noisy switching circuits to maintain signal integrity. The NT-507T also features a semi-floating aluminum top panel and stress-less isolation feet to reduce vibration.
At its core is TEAC’s Network Engine G4, a processing platform developed specifically for audio streaming, ensuring timing accuracy and stable performance. Control comes via the TEAC HR Streamer app or other OpenHome-compatible apps, and the USB Volume Function lets you adjust connected DACs or preamps directly.
Two USB ports allow playback from flash drives, HDDs, or SSDs, making it a simple music server for those who don’t want yet another box cluttering the rack.
TEAC NT-507T Specifications
Network Section
- Supported File Formats: FLAC, ALAC, WAV, AIFF, MQA, DSF, DSDIFF (DFF), DoP, MP3, AAC (m4a)
- Supported Sampling Rates: PCM 44.1–768 kHz (16/24/32-bit, integer or floating), DSD 2.8/5.6/11.2/22.5 MHz

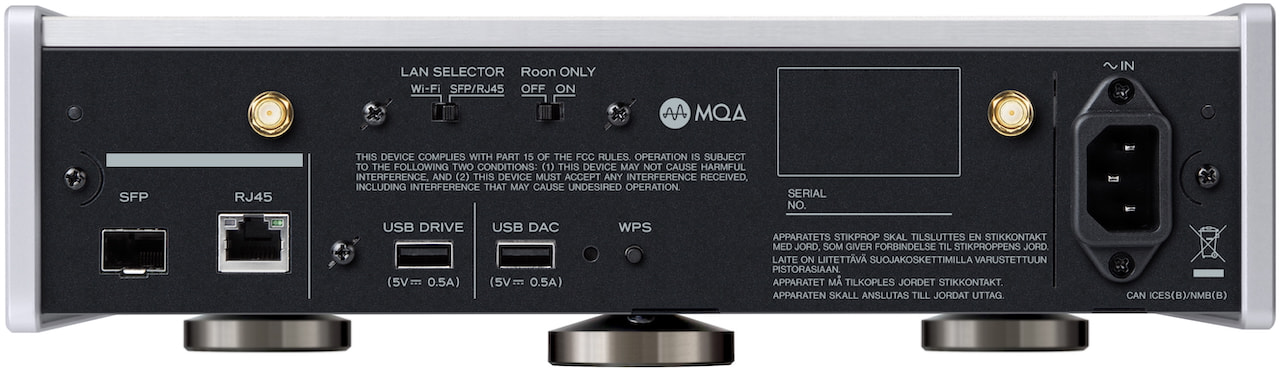

- Network Ports: Ethernet (RJ45) × 1, SFP optical × 1
- Wireless LAN: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6, 2.4 GHz / 5 GHz)
- USB Drive Ports: Type-A × 1 (Rear), Type-C × 1 (Front)
- Max power for bus-powered devices: 500 mA
- Digital Output: USB Type-A × 1 (dedicated DAC output)
Power & Design
- Power Supply: Large linear power supply with toroidal transformer and four independent windings for network, USB, Wi-Fi, and LED sections
- Regulation: Low-feedback discrete DC power regulators
- Chassis: Semi-floating 2.8 mm aluminum top panel with stress-less isolation feet
Streaming & Control
- App Support: TEAC HR Streamer, OpenHome-compatible control apps
- Streaming Services: TIDAL Connect, Qobuz Connect, Spotify Connect, TuneIn, Roon Ready (high-quality mode)
- USB Volume Function: Volume control for connected DACs/preamps via app
- Local Playback: USB ports support direct playback from flash drives, HDDs, or SSDs
Physical
- Dimensions (W × H × D): 290 × 84.7 × 246 mm (11 ½″ × 3 ⅜″ × 9 ¾″)
- Weight: Approx. 4.3 kg (9 ½ lbs)

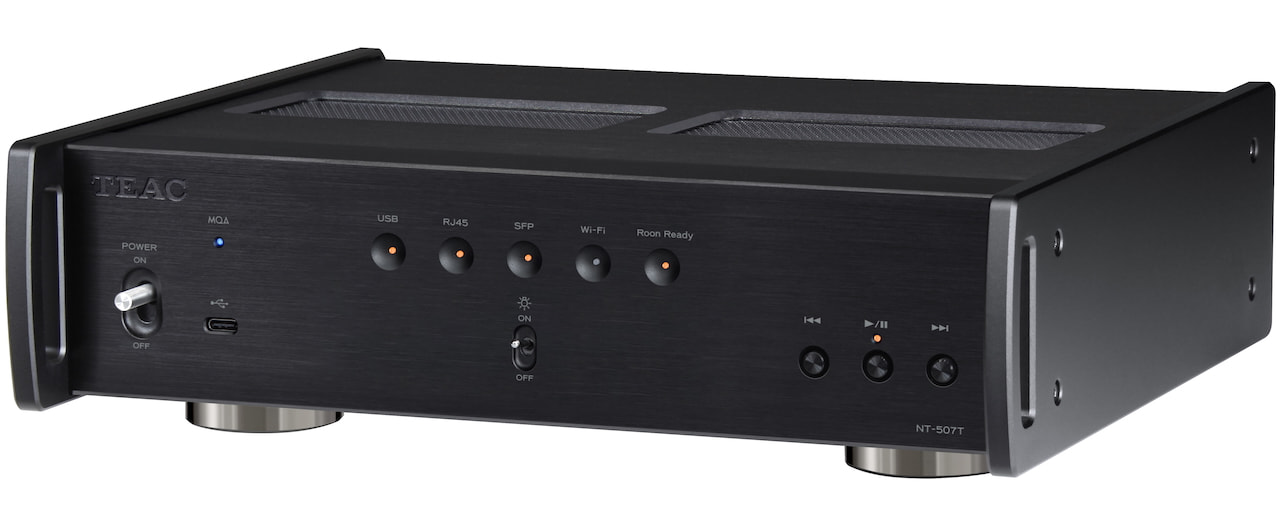

- Colors: Silver or Black
The Bottom Line
The TEAC NT-507T takes a purist approach to streaming—no DAC, no touchscreen, no bloat. Its strength lies in its clean digital architecture: the custom Network Engine G4, a linear power supply with isolated sections, and wide support for high-res formats up to DSD 22.5 MHz and PCM 768 kHz/32-bit. Build quality and engineering are unmistakably TEAC—rigid, quiet, and focused on signal integrity.
That said, at $2,499 USD, the NT-507T faces an uphill fight. Competitors like WiiM, Eversolo, Cambridge Audio, and Bluesound offer capable network players with built-in DACs, polished interfaces, and multi-room support for far less. The TEAC appeals to the minimalist who already owns a serious DAC and values precision over convenience. For everyone else, the lack of an onboard DAC or touchscreen may feel like an omission rather than a design choice.
For more information: teac.jp
