Headphone Amps

Rotel’s DX-3 DAC/Headphone Amplifier Doubles as a Preamp with Active Speakers

With support for 32-bit/384kHz PCM, DSD and aptX HD, the Rotel DX-3 cuts down on the number of components you need for headphone listening and active loudspeakers.

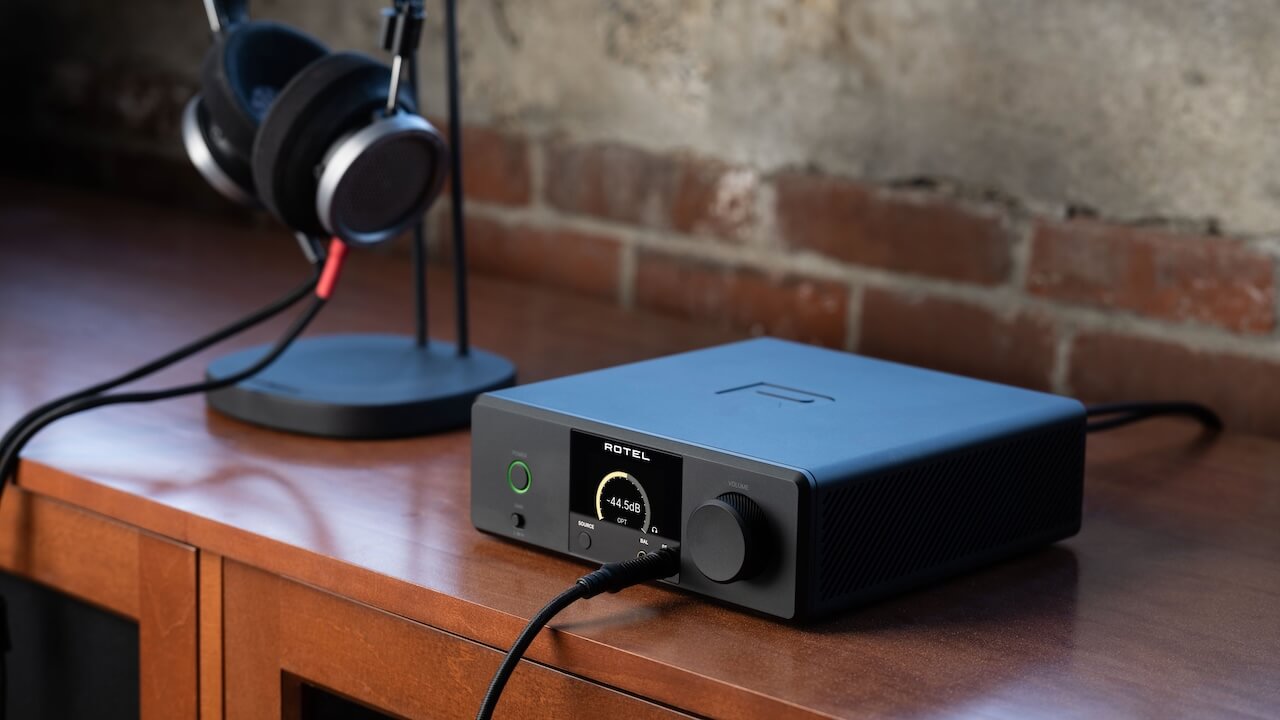

Rotel DX-3 Black Angle Front Lifestyle with Headphones

With CanJam NYC 2025 in the rearview mirror, we’re starting to see a number of new desktop DAC/headphone amplifiers enter the market. With mainstream acceptance of high-end headphones, solutions like the Rotel DX-3 are becoming increasingly more attractive and sensible to a lot of people.

If you’ve been looking for a compact DAC/Headphone amplifier that can handle a network streamer and other legacy components like a CD player or turntable, this new unit from Rotel might be a solid option.

The DX-3 is also a pre-amplifier and can be connected to a power amplifier or pair of active loudspeakers for those looking to minimize the number of components in their system.

Compact and Ready to Connect?

Rotel DX-3 Front Silver

The Rotel DX-3 offers several source input options including PC-USB (32-bit/384kHz) with DSD 4X support, Coaxial and Optical (24-bit/192kHz) digital inputs, RCA and XLR balanced outputs, and support for Bluetooth aptX HD and AAC.

The DX3 incorporates an ESS Sabre ES9028PRO 8-channel DAC, an ultra-low noise, custom in-house manufactured toroidal transformer with high current drivers and high-quality capacitors to ensure the best possible sound quality and enough power for your favorite pair of headphones.

The DX3 incorporates both analog and digital power supplies that are fully isolated from each other. This ensures minimal noise interference. For additional performance, the DX-3 also includes custom-engineered and tuned low pass filters utilizing a fully balanced, fully differential signal path.

Front panel headphone connections include both 4.4mm balanced and 6.35mm single-ended output jacks. For added headphone support, the DX-3 can adapt to a wide selection of wired headphones, including high, medium, and low impedance models. User-selectable amplifier gain is provided.

The DX-3 also functions as a standalone DAC and a fully functional pre-amplifier via XLR Balanced and RCA outputs. This provides a direct connection to an external amplifier, powered active speakers, or another compatible audio system.

The DX-3 incorporates solid build quality and features a full-color front panel status display so that user feedback is easily seen.

Volume is controlled by the NJW1195A fully differential analog controller, providing precise 0.5dB steps.

The DX-3 can be operated via front panel controls or via the included, intuitive aluminum extruded remote control.

Advertisement. Scroll to continue reading.

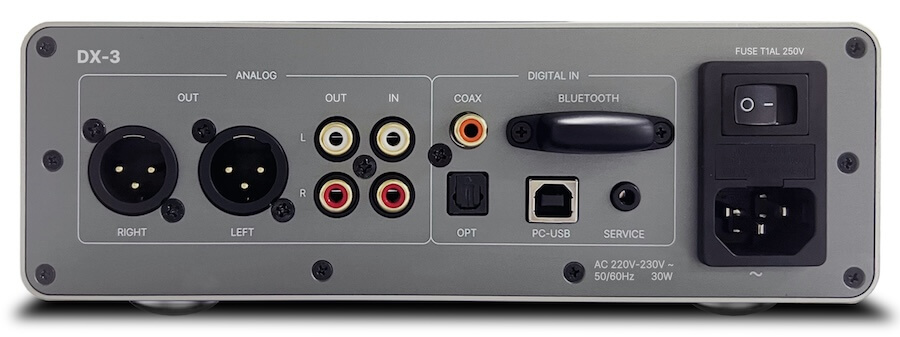

Rotel DX-3 Back

Rotel DX-3 Specifications

Model Rotel DX-3
Product TypeHeadphone Amp, Preamp and DAC
Price$1,499
HEADPHONE SECTIONHEADPHONE SECTION
Power Output (THD+N < 1%)Single-ended: (6.35 mm) 765 mW (16 Ω) 383 mW (32 Ω) 41 mW (300 Ω)
Balanced (4.4 mm) 2.8 W (16 Ω) 1.4 W (32 Ω) 150 mW (300 Ω
Total Harmonic Distortion (32 Ω, 1k Hz)Single-ended: < 0.008% @ Output = 70 mW
Balanced < 0.004% @ Output = 270 mW
Intermodulation Distortion (60 Hz: 7kHz, 4:1)Single-ended: < 0.01%
Balanced < 0.006%
Frequency Response 20 Hz – 20k Hz, (+0 dB, -0.2 dB)
Output ImpedanceSingle-ended < 0.3 Ω
Balanced < 0.6 Ω
Signal-to-Noise Ratio (IHF “A” weighted)Single-ended > 100 dB
Balanced > 110 dB
Gain0 dB @ Gain = H
-6 dB @ Gain = M
-12 dB @ Gain = L
Recommended Headphone Impedance16 Ω – 300 Ω
ANALOG SECTIONANALOG SECTION
Total Harmonic Distortion (20 Hz– 20k Hz)Unbalanced (RCA) < 0.006%
Balanced (XLR) < 0.003%
Intermodulation Distortion (60 Hz: 7k Hz, 4:1) < 0.001%
Frequency Response20 Hz – 20k Hz (+0 dB, -0.4 dB)
Signal-to-Noise Ratio (IHF “A” weighted) > 107 dB
Line Output Level / ImpedanceUnbalanced (RCA) 1 Vrms / 100 Ω
Balanced (XLR) 2 Vrms / 200 Ω
Input Sensitivity / Impedance1.2 V / 10k Ω
Input Overload5 V
Channel Separation> 86 dB @ 10k Hz
DIGITAL SECTIONDIGITAL SECTION
Total Harmonic Distortion (20 Hz– 20k Hz)Unbalanced (RCA) < 0.005%
Balanced (XLR) < 0.003%
Line Output LevelUnbalanced (RCA) 1.6 Vrms
Balanced (XLR) 3.5 Vrms
Frequency Response 10 Hz – 20k Hz (+0 dB, -0.5 dB)
Signal-to-Noise Ratio (IHF “A” weighted) > 112 dB
Input Sensitivity / Impedance0 dBFS / 75 Ω
Digital Inputs SPDIF LPCM (up to 24-bit/192kHz)
PC-USBUSB Audio Class 2.0 (up to 32-bit/384kHz )* *Driver installation required
Support DSD (up to 11.2 MHz) and DoP (up to 5.6MHz)
Bluetooth with aptX HD, AACYes
Roon TestedYes
GENERALGENERAL
Power RequirementsUSA 120 V, 60 Hz Europe 230 V, 50 Hz
Power Consumption30 W
Standby Power Consumption< 0.5 W
Dimensions (WHD)215 x 76 x 247 mm 8 1/2” x 3″ x 9 3/4
Front Panel Height70 mm / 2 3/4”
Net Weight3.2 kg, 7.1 lbs
FinishBlack and Silver

The Bottom Line

The Head-Fi revolution has created somewhat of a monster with a seemingly endless river of new headphones, IEMs, portable, and desktop amplifiers for consumers to select from. Consumers desire the path of least resistance to incorporate headphones and loudspeakers into their listening regimen and products like the new Rotel DX-3 simplify the process.

At $1,499 USD, the DX-3 faces a lot of competition from brands like Topping, Schiit Audio, FiiO, iFi, and WiiM Audio that offer solutions with many of these features for less money – and often also incorporate a network streamer in the same box.

The DX-3 does support Roon for those who use the music playback software and we suspect that it offers the trademark performance that has made Rotel one of the best “value” brands in high-end audio.

What we don’t know is how this DAC/Headphone amplifier sounds and we’ll leave that to Will Jennings to test over the next few months. We hope to try it with some of the latest headphone offerings like the Grado Signature S950, HP100 SE, and Meze Audio Poet.

Pricing & Availability

The Rotel DX-3 is offered in either a black or silver finish with a suggested retail price of $1,499.00 and will be available in Europe and the UK in March 2025, with wider international distribution to follow.
