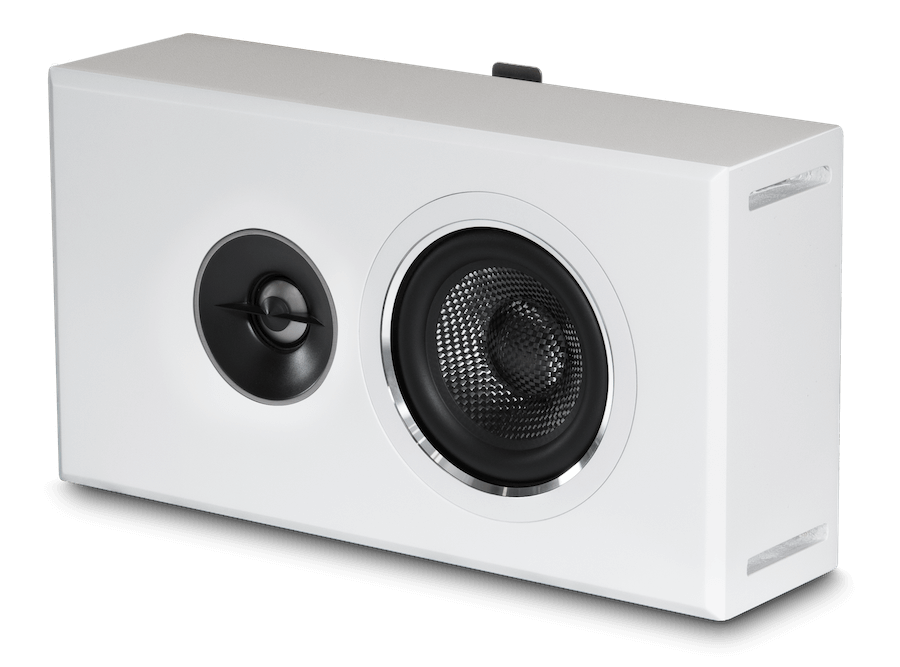

PSB Speakers has expanded its PWM series on-wall speaker range with its smallest model yet, the PWM Sat. Available in black or white, the PWM Sat delivers audiophile-grade performance in a slim, décor-friendly design. It incorporates driver technology derived from PSB’s flagship Synchrony Series, combining a 1-inch titanium dome tweeter and a 4-inch woven carbon fiber woofer to deliver detailed, dynamic sound in a slim, wall-mounted form factor ideal for home theater or surround applications.

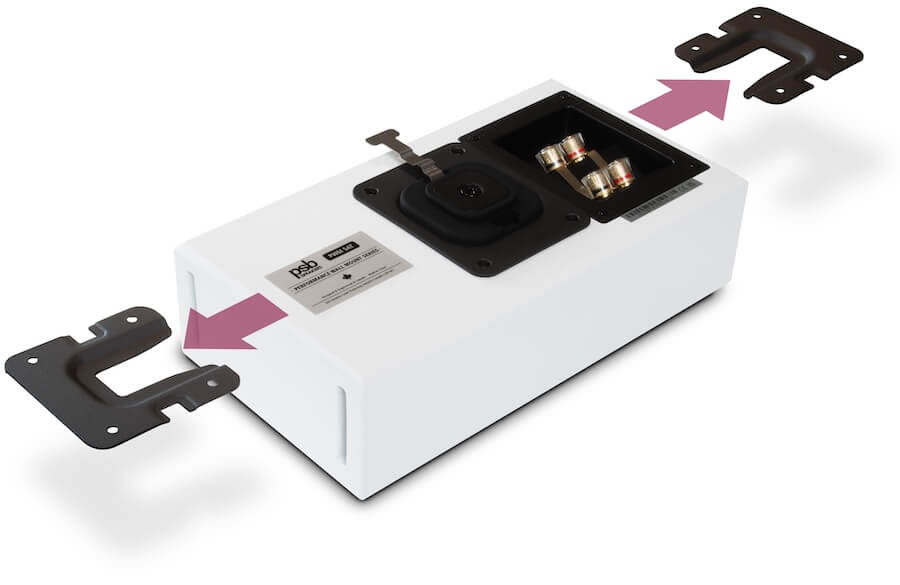

For installation, the PWM Sat uses a two-piece locking bracket system that allows secure mounting in horizontal, vertical, or ceiling orientations. This versatile design makes it suitable for use as main left/right channels, side or rear surrounds, height channels in a Dolby Atmos setup, or as a compact 2-channel system when paired with a subwoofer.
The PWM Sat is designed to seamlessly match other models in PSB’s PWM Series and integrates effortlessly into any existing PSB setup. Visually discreet yet sonically powerful, it is tonally matched with PSB’s on-wall, in-room, and architectural speakers, ensuring a consistent sound signature throughout an entire system. This gives listeners the flexibility to expand their setups without sacrificing performance or coherence.
Combining high performance, compact size, and strong value, the PWM Sat fits naturally within PSB’s expanding lineup of home and architectural audio solutions.
Key Features
- Slim, compact form factor that blends into any environment.
- PSB Synchrony-based driver platform with 1” titanium dome tweeter and 4-inch woven carbon fiber woofer.
- Maintains clarity at low volume and dynamic impact at high output.
- Flexible bracket system that provides for horizontal, vertical, or ceiling mounting.
- Tonally matched with other PSB speaker models, supporting easy integration.
- Versatile applications: front, surround, height, or 2-channel system with subwoofer.

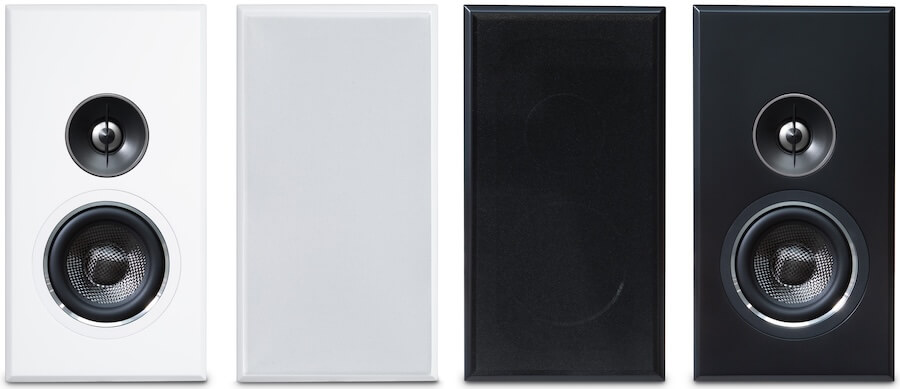

- Available in Satin Black or Satin White finishes.
Specifications
| PSB Model | PWM Sat |
| Product Type | On-Wall Speaker |
| Design Type | Bass Reflex |
| Price (Pair) | $1,099 USD (tariff adjusted) $1,299 CAD |
| Tweeter | 1″ (25mm) Titanium Dome with Ferrofluid |
| Woofer | 1 x 4″ (100mm) Carbon Fibre Cone Rubber Surround Cast Basket |
| Frequency Response (On Axis @ 0° ±3dB) | 90 – 23,000Hz |
| LF Cutoff -10dB | 62Hz |
| Sensitivity | Anechoic Chamber: 83dB Listening Room: 85dB |
| Impedance | Nominal: 8 Ohms Minimum: 6 Ohms |
| Construction (Cabinet) | MDF (Medium Density Fiberboard) |
| Grille Face | Acoustic Transparent Cloth |
| Dimensions (WHD) | 12 x 6.5 x 3.38 inches 305 x 165 x 85mm Depth With Grill: 3.5” (90mm) |
| Weight | 20 lbs (9.1 kg) |
| Finish | Satin Black, Satin White |
| Grille Type | Magnetic, Cloth Grille |
The Bottom Line
The PSB PWM Sat hits the mark for anyone looking to add serious performance to a clean, wall-mounted setup without the bulk of floorstanding speakers. It carries the brand’s signature balance of warmth, clarity, and precision, while pairing naturally with PSB’s BP7 or BP8 subwoofers for a full-range experience.

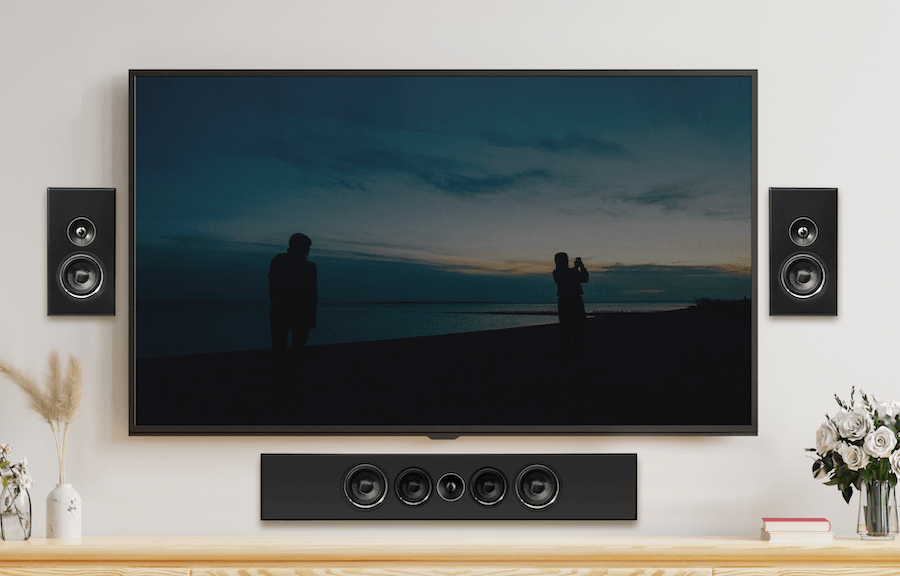

If you have a wall-mounted TV, speakers like the PWM Sat make perfect sense—they can be mounted to the left, right, above, or below the screen, creating a more accurate and immersive soundstage that aligns directly with the TV’s position. In other words, the sound feels like it’s coming from the screen itself, rather than from traditional speakers placed on a shelf or the floor beneath it.
The on-wall category is heating up, with strong competition from Acoustic Energy, Monitor Audio, and DALI—but PSB’s proven engineering and Synchrony-derived driver tech give the PWM Sat real credibility as a high-performance, space-saving option for modern home theaters.
Price & Availability
The PWM Sat is priced at $1,099/pair at PSB Speakers (tariff adjusted) and $1,299 CAD per pair, and is available from PSB and Authorized Dealers.
