Ortofon’s 2M Series might be its cash cow—beloved by vinyl-curious audiophiles and “MM forever” folks—but the now-retired Quintet Series of moving coil cartridges were hardly slackers. Affordable by MC standards, they offered a real taste of what low-output coils can do without torching your checking account.
Enter the new MC X Series, Ortofon’s four-part follow-up to the Quintet lineup. Designed from the ground up, this new range includes the MC X10 ($369), MC X20 ($629), MC X30 ($879), and the top-tier MC X40 ($1,199). Yes, this is still the “sane” end of the MC pool—no titanium-bodied, cryo-treated, unicorn-hair coils here—but don’t mistake that for lack of ambition.
All four cartridges share the same core architecture and body; the differences lie in the stylus and cantilever materials. The MC X40 goes posh with a boron cantilever, while the other three stick with trusty aluminum. Stylus profiles step up progressively, and tracking performance improves accordingly.
Ortofon didn’t just tweak the old Quintet formula—they started from scratch. The new models are built around a honeycomb-shaped stainless-steel core, produced using Metal Injection Moulding (MIM). It’s trickle-down tech from their bonkers high-end MC-90X, and it shows. This structure forms the base for a new generator design, hand-wound coils made from ultra-thin, high-purity silver wire, and a freshly engineered magnet system.
Yes, it’s all built in Denmark, and yes, Ortofon even manufactures the rubber for the suspension in-house. That level of vertical integration is almost unheard of—and gives them a level of QC control that most cartridge makers can only dream about.
From a spec perspective, the MC X cartridges are dead-on practical. Output is a sensible 0.4mV to 0.5mV—easy enough for a proper MC phono stage to handle. Tracking force is a friendly 2 grams.
At 8.6 grams, they’re light enough for most modern tonearms. And they’re designed to play nice with 100 ohm MC inputs, which means they’ll drop into most systems with an adjustable MC phono stage with zero drama.
It’s a smart, clean update—more performance, same price brackets. And for those ready to graduate from MM without maxing out their Mastercard, Ortofon just made the path a whole lot clearer.
What really separates the four models in Ortofon’s new MC X lineup? Stylus shape. That’s the big one.
All four use the same body, generator, and basic construction, but the stylus—the part that actually rides the groove—is what defines their sound and price point. And no, it’s not just marketing fluff. The stylus doesn’t sit at the bottom of the groove—it traces the groove walls. So the shape of that diamond tip matters a lot: how much contact it makes, how well it tracks high-frequency details, how cleanly it handles inner groove distortion… all of that starts here.
Ortofon MC X Series Moving Coil Cartridges

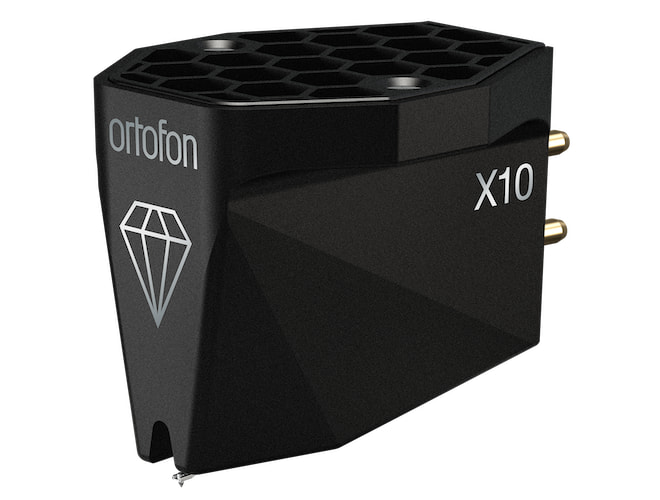

The MC X10 uses a refined elliptical stylus. It’s the simplest shape—rounded like a ballpoint pen. Easy to align, forgiving, but not the last word in resolution.
Ortofon MC X10 Cartridge Specifications
- Output Voltage: 0.4 mV @ 1kHz, 5cm/sec
- Channel Balance: 0.5 dB @ 1kHz
- Channel Separation: 24 dB @ 1kHz
- Frequency Response: 20 Hz – 20 kHz, ±2 dB
- Tracking Force (Recommended): 2.0 grams
- Compliance (Dynamic, Lateral): 13 μm/mN
- Stylus Type: Elliptical
- Stylus Tip Radius: r/R 8/18 μm
- Cantilever Material: Aluminium
- Stylus Suspension: Ortofon exclusive
- Coil System: Quad coil design
- Coil Wire Material: High-purity silver
- Internal Impedance (DC Resistance): 6 Ω
- Recommended Load Resistance: > 50 Ω
- Cartridge Weight: 8.6 grams
Next up, the MC X20 steps up to a nude elliptical stylus. It’s more narrow, sits deeper into the groove walls, and extracts more detail. Both of these use diamonds mounted on a metal shank, which is then glued to the cantilever—a common setup in this price range.
Ortofon MC X20 Cartridge Specifications
- Output Voltage: 0.4 mV @ 1kHz, 5cm/sec
- Channel Balance: 0.5 dB @ 1kHz
- Channel Separation: 25 dB @ 1kHz
- Frequency Response: 20 Hz – 20 kHz, ±1 dB
- Tracking Force (Recommended): 2.0 grams
- Compliance (Dynamic, Lateral): 15 μm/mN
- Stylus Type: Nude Elliptical
- Stylus Tip Radius: r/R 8/18 μm
- Cantilever Material: Aluminium
- Stylus Suspension: Ortofon exclusive
- Coil System: Quad coil design
- Coil Wire Material: High-purity silver
- Internal Impedance (DC Resistance): 6 Ω
- Recommended Load Resistance: > 50 Ω
- Cartridge Weight: 8.6 grams
With the MC X30, things get serious. It also uses a nude elliptical stylus, meaning the diamond is a single piece, directly mounted to the cantilever without the extra shank in between. That shaves off mass, improves transient response, and gives you a more agile sound. It’s a noticeable step up.
Ortofon MC X30 Cartridge Specifications
- Output Voltage: 0.4 mV @ 1kHz, 5cm/sec
- Channel Balance: 0.5 dB @ 1kHz
- Channel Separation: 26 dB @ 1kHz
- Frequency Response: 20 Hz – 20 kHz, ±1 dB
- Tracking Force (Recommended): 2.0 grams
- Compliance (Dynamic, Lateral): 15 μm/mN
- Stylus Type: Nude Fine-Line
- Stylus Tip Radius: r/R 8/40 μm
- Cantilever Material: Aluminium
- Stylus Suspension: Ortofon exclusive
- Coil System: Quad coil design
- Coil Wire Material: High-purity silver
- Internal Impedance (DC Resistance): 6 Ω
- Recommended Load Resistance: > 50 Ω
- Cartridge Weight: 8.6 grams
The MC X40 goes full snob—in a good way. It uses a nude Shibata fine-line stylus mounted on a boron cantilever. The fine-line shape gives even more groove contact and better high-frequency tracking. That boron? It’s stiffer and lighter than aluminum, which helps translate subtle details with less coloration and more speed.
Ortofon MC X40 Cartridge Specifications:
- Output Voltage: 0.4 mV @ 1kHz, 5cm/sec
- Channel Balance: 0.5 dB @ 1kHz
- Channel Separation: 26 dB @ 1kHz
- Frequency Response: 20 Hz – 20 kHz, ±1 dB
- Tracking Force (Recommended): 2.0 grams
- Compliance (Dynamic, Lateral): 15 μm/mN
- Stylus Type: Nude Shibata
- Stylus Tip Radius: r/R 6/50 μm
- Cantilever Material: Boron
- Stylus Suspension: Ortofon exclusive
- Coil System: Quad coil design
- Coil Wire Material: High-purity silver
- Internal Impedance (DC Resistance): 6 Ω
- Recommended Load Resistance: > 50 Ω
- Cartridge Weight: 8.6 grams
The Bottom Line
Ortofon doesn’t retire a successful cartridge line on a whim—and the new MC X Series makes it clear why. With trickle-down tech from their high-end models, quad-coil architecture, and precision-engineered suspensions, this is a focused assault on rivals like Hana, Dynavector, Goldring, and Audio-Technica across multiple price tiers.
Each model offers exacting channel balance, refined frequency response, and a stylus/cantilever combo tuned for audiophiles who still believe vinyl deserves their best. The MC X lineup isn’t just a refresh—it’s a statement that Ortofon intends to dominate the sub-$1,000 MC space with surgical accuracy and real sonic gains.
For more information: ortofon.us
Where to buy:
- MC X10 – $369 at Amazon
- MC X20 – $629 at Music Direct
- MC X30 – $879 at Music Direct
- MC X40 – $1,199 at Music Direct
