New Products

Olive O6HD Audiophile Music Server

Features 24-bit Sound, Fully Balanced Differential DAC and 10-inch Glass Touch Screen

Olive Media Inc. introduced its flagship music server for home stereo systems, the handcrafted Olive O6HD . The culmination of over five years of design and innovation in the category, the O6HD is an audiophile's dream.

Every design choice on the O6HD was made with purity of sound as a priority, making the O6HD Olive's most advanced offering to date. Olive pioneered the HD music category, matching recording engineers' golden standard of 24-bit studio recording sound and up to 192 kHz sample rate. This offers music lovers an experience that is more than 250 times the resolution of CDs and is as perfect as recorded music can get. The O6HD represents an assembly of premium components to facilitate this experience that would cost tens of thousands of dollars to recreate elsewhere.

Olive O6HD Music Server - Back

This attention to performance with component choices represents the details that audio purists crave:

Fully balanced differential DAC Design
At the heart of the 06HD is a fully balanced differential DAC, with a matched pair of TI's top-of-the-line 24-bit/192 kHz DAC modules (Burr-Brown PCM1792) for the inverted and non-inverted signals on each of the right and left channels. With a Signal-to-Noise ratio of 124 dB, the sounds come from a truly black background, revealing all the nuances and subtleties. The patent-pending DAC design is enhanced with additional premium components:

  • Ultra-low jitter master clock
    A separate temperature-compensated crystal oscillator, with jitter of less than 10 picoseconds after re-clocking virtually eliminates jitter. This best in class clocking eliminates the edginess issues found in some digital music players. The resulting sound is of unequalled transparency and tonal accuracy.
  • High-performance Sample Rate Converter
    The new O6HD uses the latest TI SRC4194 to up-sample any lower audio standard to 24-bit/ 384 kHz, guaranteeing incredible purity in high frequencies and low-level detail.
  • High-end output stage
    Enjoy warm, open and spacious sound. The O6HD eliminates slewing induced distortion byusing ultra-fast op-amps with at least 20V/us slew-rate, and a gentle 2nd-order Bessel reconstruction filter. Witnessed in its exceptionally flat frequency response (+0/-0.5db, 20Hz-20kHz) and ultra-low THD+N of less than 0.0007% (at 20Hz-22kHz).
  • Dedicated headphone DAC
    The O6HD also features a separate 24-bit/192 kHz PCM1792 DAC and TPA6120A2 High Performance Audio Amplifier for headphone use, giving users the sharpest possible sound regardless of how they're listening.

High-Precision Linear Power Supply
The obsession for sound performance behind the O6HD's design is further evidenced with the unique presence of dedicated power supplies for the analog and digital components. The highly sensitive analog section is powered by a dedicated linear power supply with a custom-built ultra-low noise toroidal transformer. A separate AC line filter, with noise attenuation at close to 80dB, reduces noise floor from the start.

Iconic Design, Hand-Built in the USA
Olive's O6HD embodies design with purpose: each feature in the service of performance, the whole an aesthetic treat. To deliver on this promise, Olive has selected design elements that first and foremost enhance the listening experience. The pinnacle of Olive's sound, technology, and design, the O6HD ultimately serves as a showcase piece for the home.

Advertisement. Scroll to continue reading.

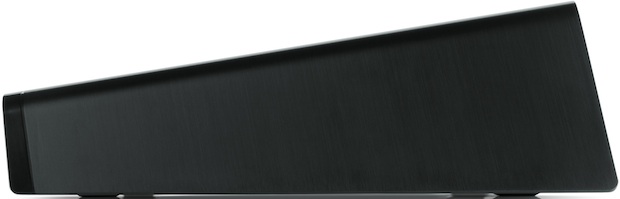

Olive O6HD Audiophile Music Server - Black - Side

More than just a shell, the O6HD's elegant aluminum enclosure eliminates operational noise and resonances. A distinctive angled front includes a huge 10.1″ glass-on-glass color touch-screen, both of which allow for easy navigation of the music library. The music library has capacity for up to 6,000 CDs in original quality or up to 20,000 High Definition tracks on the O6HD's internal 2TB hard disk drive, which is cushioned in 8 layers of noise-canceling padding.

Even the 06HD's Anti-Vibration Feet play a role in producing sound that is pure, with each foot designed in a 2-part, special polymer mold. This allows the chassis to float above its supporting surface and protect it from outside vibrations and resonances, which can negatively affect sound performance. Furthermore, Olive has chosen a unique fan-less cooling system further eliminates operating noise.

The care that went into the design of the O6HD also goes into its construction. The entire series is custom-built in small quantities at Olive's facilities right in downtown San Francisco, USA. This ensures the highest quality for each and every product; nothing is left to chance.

Pricing and availability
The O6HD music server is available in limited quantities in black or silver directly from Olive (; 1.877.296.5483) for $4,999 (2TB).
