High performance Class D amp features improvements making it more efficient, significantly lighter and more energy-efficient
Velodyne has introduced the SC-600D amplifier, an improved version of the SC-600. The SC-600D features a Class D amplifier – the original SC-600 featured a Class A/B design – which improves efficiency, reduces its weight to 17lbs and reduces “wasted” energy by turning AC power into usable output.
“The updated amplifier offers installers a number of improvements over its predecessor, the SC-600 amplifier, including a robust 80% conversion efficiency,” said Bruce Hall, president of Velodyne. “The SC-600D is lighter and easier to install and features the exact same rear-panel connections as the SC-600 amp.”
Designed to power Velodyne's SC-600 IW in-wall subwoofer and SC-600 IF/IC in-floor/in-ceiling subwoofers, the “plug and play” SC-600D is a 400-watt dynamic, 200-watt RMS power Class D amplifier that provides superior headroom for clean, powerful bass.
The rack-mounted SC-600D is easy incorporated into a system thanks to its 12-volt trigger, IR repeater jack and RS-232 control capability. Each SC-600D comes complete with a full-feature IR remote providing four different listening preference settings.
Features
- Superior headroom for dynamic bass with impact and authority
- Exclusive Velodyne distortion-limiting circuitry prevents audible distortion

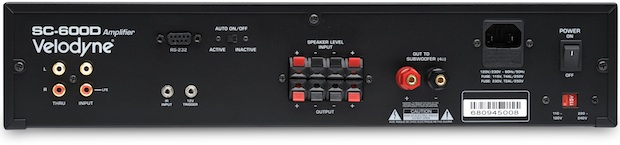

- System friendly: 12-volt trigger, IR repeater jack, RS-232 Controllable (Crestron Certified)
- Twin systems can be run via rear-panel pass through to a second SC-600D amp (a single SC-600D amp running two subs is not possible)
- Easy connection to the subwoofer with conventional speaker wire I Very reliable, with a strong warranty – three years parts and labor
| Model | SC-600D Amplifier |
| Amplifier Class D | 400 watts Dynamic 200 watts RMS Power |
| High Pass Crossover | 80 Hz (6 dB/octave) |
| Low Pass Crossover | 30-160 Hz, Defeatable, 24 dB/octave slope |
| Inputs | Line and Speaker Level |
| Outputs | Line level, 80 Hz up, speaker level |
| Phase | 0°, 90°, 180°, 270° |
| Dimensions (H/W/D) (Inc. feet & knobs) | 3.6″ x 17″ x 13″ (9 x 43.2 x 33 cm) ** Allow two extra inches in depth for wire connectors and power cable. ** Includes feet. Feet can be removed for rack mount use. Unit is approximately “two rack units” high. |
| Warranty (parts/labor) (North America) | Three years (electronics) Five years (drivers) |
| Shipping Weight (approx.) | 17 lbs. (7.7 kg) |
