New Products

Panasonic AG-AF100 Micro Four Thirds Professional HD Camcorder


Best-in-Class 4/3″ Sensor Delivers Depth of Field and Field of View Similar to that of 35mm Movie Camera; Camcorder Uses Low-Cost Still Camera and Film-Style Lenses

Panasonic announced the AG-AF100, the industry's first professional Micro Four Thirds video camcorder optimized for high-definition video recording, will start shipping on December 27th at a suggested list price of $4,995.

Targeted at the video and film production communities, the AF100 delivers the shallow depth of field and wider field of view of a large imager, with the flexibility and cost advantages of a growing line of professional quality, industry-standard micro 4/3-inch lenses, filters, and adapters. The full HD 1080 and 720 production camera offers superior video handling, native 1080/24p recording, variable frame rates, professional audio capabilities, and compatibility with SDHC and SDXC media.

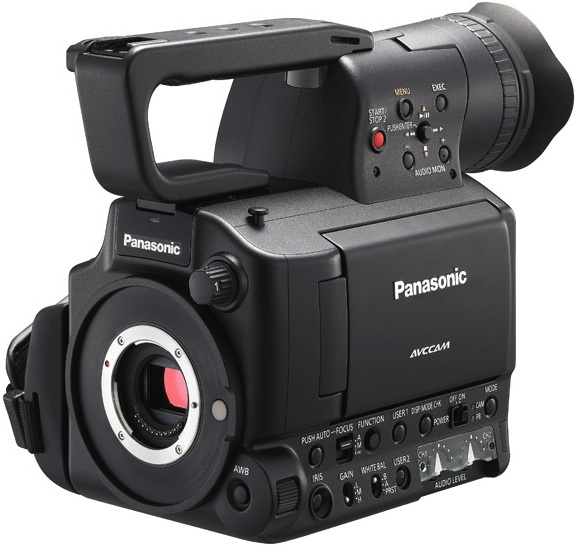

Panasonic AG-AF100 Micro Four Thirds Professional HD Camcorder Body

The AF100 incorporates a large 4/3-inch,16:9 MOS imager that minimizes skew with fast imager scanning, and incorporates low pass filters for elimination of aliasing and moire. Additionally, it has a built-in optical ND filter. The camcorder records 1080 at 60i, 50i, 30P, 25P (Native) and 24P (Native), and 720 at 60p, 50p, 30p, 25p and 24p native,in AVCHD's highest-quality PH mode (maximum 24Mbps). The AF100 also records in AVCCAM's HA (17 Mbps) and HE (6Mbps) modes, 1080i only. Ready for global production standards, the camcorder is 60Hz and 50Hz switchable. Equipped with an interchangeable micro 4/3-inch lens mount, the AF100 can utilize an array of low-cost, widely-available still camera lenses as well as film-style lenses with fixed focal lengths and primes.

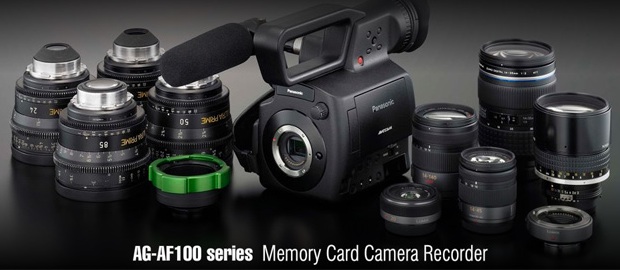

Panasonic Micro Four Thirds Lenses

Variable frame rates are available in 1080p, selectable in 20 steps from 12p to 60p at 60Hz and 20 steps from 12p to 50p at 50Hz. Standard professional interfaces include uncompressed 4:2:2, 8 Bit HD-SDI out; HDMI out; and USB 2.0. It records SMPTE timecode and is able to perform timecode synchronizing via the video output seeing timecode in. It has a built-in stereo microphone and features two mic/line, switchable XLR inputs with +48V Phantom Power capability. The camera can record 48-kHz/16-bit two-channel digital audio recording (in PH mode only) and supports LPCM/Dolby-AC3 in any of the modes.

This newest Panasonic AVCCAM camcorder is the first to enjoy the benefits of advanced SDXC media card compatibility in addition to existing SDHC card support. SDXC is the newest SD memory card specification that supports memory capacities above 32GB and up to 2TB. With two SD slots for continuous recording, the AF100 can record up to 12 hours on two 64GB SDXC cards in PH mode, with automatic clip spanning across the two cards.

Panasonic AG-AF100 Micro Four Thirds Professional HD Camcorder

Weighing only 3.5 pounds (without lens or battery), the AF100 is packed with high-end features including Dynamic Range Stretch in all modes and frame rates; six built-in, customizable scene files that are exchangeable for quick and easy matching between multiple cameras; seven built-in gamma curves with four selectable color matrices; Syncro-scan shutter; and a high-resolution LCD and viewfinder.

It also offers a focus assist that can be used while recording, which is color-on peaking and a focus bar; two sets of adjustable zebras; two manual black and white balance choices, and preset White Balance at 3200K, 5600K or variable; a waveform monitor and vectorscope for more accurate monitoring of broadcast safe levels. Other essential features include pre-record; an intervalometer function that can be set for up to 24 hours, programmable User Buttons; a Smart Battery interface for recording up to four hours with a 5400mA battery; metadata recording; and a wireless infrared remote controller.

Advertisement. Scroll to continue reading.

The AG-AF101 is the model number for european countries. Panasonic will support the AF100 with a three-year limited warranty (one year plus two extra years upon registration).

Panasonic AG-AF100 Micro Four Thirds Professional HD Camcorder

Other features / specifications

  • Internal ND filter: 1/4, 1/16, 1/64 or Off (rotary switch).
  • Focus-assist function: edge coloration, focus bar display.
  • DRS (Dynamic Range Stretch): automatically reduces compression of black or blown highlights in high contrast scenes.
  • Thumbnail viewing, clip deletion and SD card to SD card copying and meta-data recording functions.
  • Pre-rec and Interval rec functions.
  • Relay recording: Relay recording from one SD card to another without interrupt.
  • WFM display function: the wave form of the video being recorded is easily displayed on an LCD monitor.
  • Shot mark function: the useful shot mark function allows marking of clips as good, bad or others.
  • User buttons: three user buttons allow high-frequency functions to be performed with a single push.
  • Audio volumes: allows manual adjustment of audio inputs (2 ch).
  • Video output (pin jack x 1), HD/SD SDI output (BNC x 1), HDMI output (HDMI Type A x 1).
  • USB 2.0 (Type B) allows connection to PC/Mac.
  • XLR audio inputs (XLR x 2, Line/Mike selectable, +48V compatible), Internal microphone (stereo).
  • Audio outputs (RCA x 2), Headphone (stereo mini jack x 1 (3.5mm diameter)).
  • Camera Remote (super mini jack x 1; zoom, S/S, mini jack x 1; focus, iris).

“The design of the AF100's best-in-class 4/3-inch sensor affords depth of field and field of view similar to that of 35mm movie cameras in a more affordable camera body.” What's more, Panasonic engineering ingenuity has resolved the aliasing and moire that has haunted the DSLR shooter. Indeed, the proof of concept of the AF100 was based on what we heard from and saw customers doing: purchasing DSLR cameras because they liked the look of the image, but then agonized over all of the workarounds required to come out with an acceptable high definition recording.”
— Jan Crittenden Livingston, Product Line Business Manager, Panasonic Solutions Company
