Cw-4000hd



Bronze Member
Username: Redwater71

Post Number: 83
Registered: Sep-06
Anyone heard of the new unit / have one ?
Could it handle N*3 ? Must be pricey ??


Bronze Member
Username: Redwater71

Post Number: 84
Registered: Sep-06
Forgot to include this info ...

Display Resolution
1080P
1080i
720P
480P
Standard definiton


Gold Member
Username: Brucester

Post Number: 1640
Registered: Jul-06
will add some features:

Got this from CW web site

Key Features

This feature packed High Definition Linux Media Center is designed to provide a wide range of personal and broadcast media playback.

The CW-4000HD utilizes 15th generation software that provides a wide range of media applications such as:


* Satellite/Digital TV - Free to air HDTV and SDTV broadcast reception.
o Pause LiveTV
o Electronic Program Guide (EPG)
o Custom EPG search
o Instant & Timer recording of broadcast media*
o Closed Captioning
o Toggle through Satellite/Digital TV sources
o Signal information
o Channel history
o Satellite/Digital TV streaming server
o Video Zoom & Aspect control
o Video Vibrance control
* IPTV - Free to air Internet TV broadcast reception.*
o Organized list of popular IPTV channels.
o Video Zoom & Aspect control
* P2PTV - Peer to peer video stream interfacing.*
o Organized list of popular P2PTV channels.
o Video Zoom & Aspect control
* Video - Player for many of the most common video formats via network, portable or local filesystems.
o mpg, avi, mov, and many more...
o DVD-ISO and DVD file structure
o Alternate audio track support
o Video Zoom & Aspect control
* DVD - Internal CD/DVD device providing playback of DVD video discs.
o DVD menu and navigation
o Video Zoom & Aspect control
* VCD - Internal CD/DVD device providing playback of Video Compact Discs.
o VCD and SVCD support
o Video Zoom & Aspect control
* CD - Internal CD/DVD device providing playback of CD audio discs.
o Automatic CDDB loading (Compact Disc Database)*
o Audio stream video animation
* Music - Player for many of the most common audio formats via network, portable or local filesystems.
o mp3, ogg, wav, and many more...
o Playlist creation
o Playlist loop, loop once, shuffle, random
o Audio stream video animation
* IPRadio - Free to air Internet Radio broadcast reception.*
o Organized list of popular IPRadio channels.
o Audio stream video animation
* News - Stay informed by retrieving the latest content from the news feed sites you are interested in.*
o Organized list of popular News feeds.
o Assign your favorite News feed as a ticker.
* Web - Internet web browser*
o Display and interact with text, images, videos, music and other online information.
o Support for popular media formats/plugins including Flash
* Pictures - Picture viewer for many of the most common image formats via network, portable or local filesystems.
o Watch a slideshow of your favorite pictures
o Adjust the view of your pictures by using zoom, flip, rotate
* Weather - Weather applette*
o Get current local weather conditions
o Select your city, temperature scale, and update frequency
* Games - Support for an external Mame installation package.*
o Browse and play your favorite Mame games that you own via network, portable or local filesystems.
o Customize your keyboard or game controller configuration
* Roaster - Convert your recordings to various formats.*
o Prepare DVD
o Burn DVD
o Prepare Video
o Burn Video


* Hard drive installation required.
* The external Mame installation package is only meant for those users who are legally entitled to its proper use.
* Internet connection required.



Specifications


The CW-4000HD is a available in a black finish with high-gloss front panel and silver highlighting.

Dimensions:
- Width: 367 mm (14.45 in)
- Height: 99 mm ( 3.89 in)
- Depth: 350 mm (13.78 in)


Hardware:
- Processor: AMD 4600 X2 Processor
- Memory: 512MB DDRII RAM Expandable to 8GB
- Flash Drive: 1GB Fast System Flash
- Hard Drive: Not Included
- Video: Nvidia GeForce 7050
- Satellite Tuner: Genpix Skywalker-CW3K (internal)
- Input terminal: F-type 75 Ohm
- Receiving frequency: 950~2150 MHz tuning range
- Input level: -65~-25dBm
- Support MCPC and SCPC
- Symbol rate: 256Ksps~30 Msps
- FEC Codes: 1/2,2/3,3/4,5/6,7/8 and Auto
- QPSK, 8PSK, 16QAM
- LNB/switch control: 13/18V (or 14/19V), 22khz, Tone Burst, DiSEqC 1.0/1.2, Legacy switch commands, 450 mA
- ATSC Tuner: (optional)
- Latest LG 5th generation tuner for enhanced reception.
- Supports QAM 64 and QAM 256 Cable signals.
- One TV antenna 75 ohm reception port.
- One stereo connection jack to sound card for analog TV.
- Video Output: HDMI/SVGA/Component/S-Video
- Audio Ouput: Analog and SPDIF Dolby Digital Audio output
- USB Ports: 4 USB v2.0 ports on back panel and 2 USB v2.0 ports on front panel.
- Ethernet Port: RJ-45 10/100/1000 Mbits compatible.
- DVDRW: Read/Write DVDs and CDs.


Software :
- Java 1.5 Graphical User Interface
- Open Source Linux Operating System
- Version 2.6 Kernel
- X Windows Environment
- VDR (Video Disk Recorder)
- atscepg
- epgsearch
- extrecmenu
- femon
- nacc
- nvsettings
- radioinfo
- radiolist
- satlist
- setup
- skinsoppalusikka
- streamdev-server
- xine
- yaepg
- zaphistory
- zoom
- GQview image viewer
- Roaster mpg, iso, and disc builder
- Firefox web browser (Bon Echo)
- Lighttpd web server
- EPDFview pdf viewer
- Samba file server (Windows style networking)
- Xine multimedia player


Configurability

This CaptiveWorks High Definition Linux Media Center software is designed to provide a highly configurable environment to suit a wide range of specific needs.

The CW-4000HD software is upgradeable via Internet, Network share, CD/DVD, and USB storage device.

# Updates - Stay up to date with the convenience of the internal update system.

o Add/Edit custom Download Servers
+ Enable/Disable automatic update alert
+ Enable/Disable automatic update download

# Antenna - Set up and scan your styles of Antenna configurations.

o Satellite
+ Switches
# None
# DiseqC
# Mini DiseqC
# 22 Khz Tone
# Uncommitted
+ LNB's
# None
# Universal
# Universal2
# Circular
# Linear
# DP Circular
# DP Linear
# WB Circular
# C Band
+ Motor
o ATSC *
o Cable *

# Network - Integrate your High Definition Linux Media Center into your home network.

o Enable/Disable Network
+ Edit Network Hostname
+ Edit Network Workgroup
+ Edit Network connection type
# Obtain Address Automatically
# Static Network Address
o Mount Shared Folders from your other home network PC's

# Display - Set your display device connection type.

o Primary Connection
+ HDMI
+ VGA
+ Component
+ S-Video
o Display Resolution
+ 1080P
+ 1080i
+ 720P
+ 480P
+ Standard definiton
o Set menu theme style

# Profiles - Create and customize profiles to suit your needs.

o Password protect
o Enable sharing of a profile on your network (shared via samba and web server)
o Customize/auto-assign channel lists
o Customize/auto-assign applications


* Optional ATSC card required to utilize this feature.

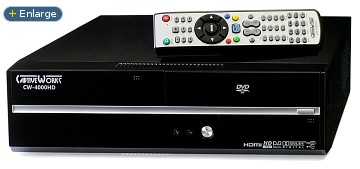

here is the pic.

Upload


Gold Member
Username: Plymouth

Canada

Post Number: 4523
Registered: Jan-08
Thanks Bruce for the info

the third brand receivers feature 1080p
