King,Nalin,Plymouth- Multi satellite switch



Bronze Member
Username: Kanishk

Post Number: 20
Registered: Nov-07
Friend of mine has has d*sh 500plus with 110,119 and 118.7 and a seperate dish for 61.5. All four connected to dpp44 feeding to two receivers. He just got another d*sh 500 pointed to 82 and 91 and the lnb is twin with built in switch. How can he connect this new dish to dpp44? What kind of set up he needs? Any additional switches or any additional hardware? Thanks in advance.


Gold Member
Username: Plymouth

Canada

Post Number: 4429
Registered: Jan-08
kanishk

Buy 2 diseq switch 2X1 and 2 Selector A-B

Connect 2 LNB on diseq input and diseq output on B, your Dp44 output on A, A-B output to receiver.
Repeat it for the other receiver.


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3602
Registered: Oct-06
Actually
If yo got 118.7, yo won't need 61.5

First, see if 110/118/119 work on yor DP44
DP44 is a great switch if compatible with yor receiver and LNBs

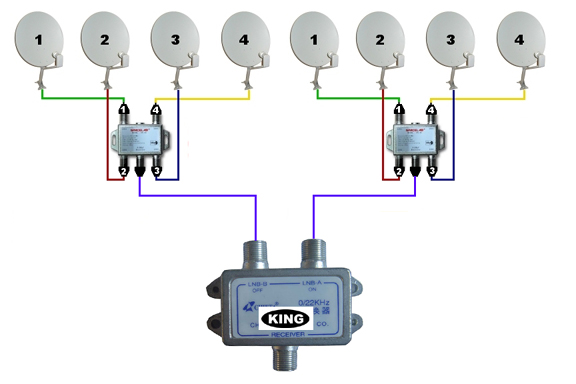

But if yo want to use 2 simple DISEqC this is how to:
Upload

Keep in mind 118/119 is one LNB
Yo may use input 3, 4 for other satellites
Twin LNB can be used for 82/91 1-coax to each D-Switch


Bronze Member
Username: Kanishk

Post Number: 21
Registered: Nov-07
Thanks Plymouth and King for the reply. But he is using all the in-ports of DPP44. How he is going to hook 81/92 to the DPP44? May be we will try Plymouth's method or may be as king suggested, he may not need 61.5. Thanks we will report back.


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3603
Registered: Oct-06
He's using all the in-ports
Are they all working well?

DP44 is expandable
Or combine two sats to a 22k Sw

Fore example:
110 and 61.5 to a 22k sw
82/91 from a twin LNB or another 22k sw

22k ON for 110 and OFF for 61.5

22k sw has 2 inputs to 1-output
Is like an A/B switch
A and B toggle 1-on while the other off
And vise versa

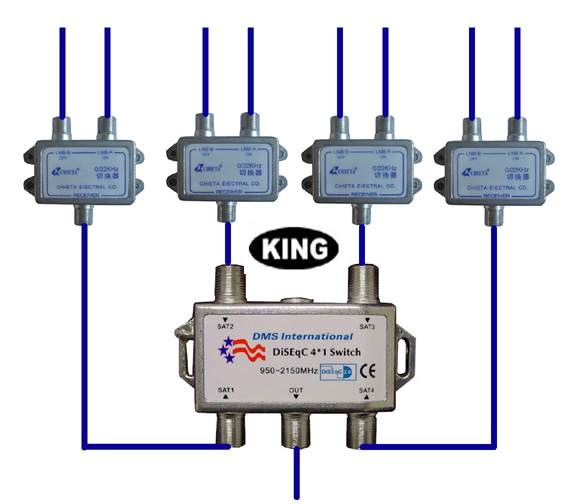

Pretend D-Switch bellow is DP44
Antenna setup to each Sat must match 22K ON or OFF


Upload

IT IS NOT THE GREATEST SOLUTION
But will allow yo to interchange all satellites
Most people 4 satellites more than plenty

If this is not best solution
Then be prepared for yor own custom wiring

Time share is the only way to accomodate 6 satellites
Upload

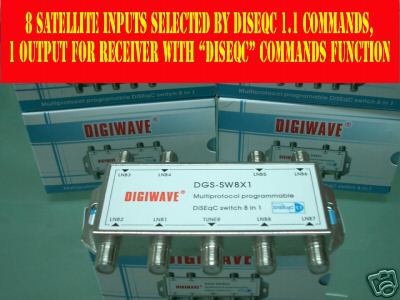

- Yo can also use 2 sets of this 8x1 switch
- But each LNB must be dual
- 2 identical switches directly fed from each dual LNB
- 1 to each port of 8x1 switch


Upload


Bronze Member
Username: Kanishk

Post Number: 22
Registered: Nov-07
Thanks King with excellent illustration and explanation. Now tell us where we can buy 22K Sw and how much it costs. By the way, yes he is using all the ports on his DPP44 (one for each 61.5,110,119 and 118.7) and working well.


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3604
Registered: Oct-06
Try e-bay
Buy 2 Sw22k
Come back and tell me how it worked
Ask questions as yo need

Canada
http://cgi.ebay.com/NEW-SW22-22KHZ-22-KHZ-2X1-TONE-BURST-FTA-MULTI-SWITCH_W0QQit emZ220288807683QQihZ012QQcategoryZ67880QQcmdZViewItemQQ_trksidZp1742.m153.l1262

US
http://cgi.ebay.com/ECODA-22-KHZ-SW22-22KHZ-2X1-TONE-BEST-FTA-MULTI-SWITCH_W0QQi temZ160288952773QQcmdZViewItem?hash=item160288952773&_trkparms=72%3A1205%7C39%3A 1%7C66%3A2%7C65%3A12%7C240%3A1318&_trksid=p3286.c0.m14


Gold Member
Username: Plymouth

Canada

Post Number: 4433
Registered: Jan-08
King
I don't have suggest it because i don't know if it work on Dishnet LNBs.


And look it and give me your comment

https://www.ecoustics.com/electronics/forum/home-video/518918.html

Thanks
