Audioengine’s New HXL Dongle DAC Supports DSD and Hi-Res Audio Playback

At $169, the Audioengine HXL portable headphone amp features dual DACs and balanced outputs for improved sound from mobile devices.

Audioengine HXL Dongle DAC

Texas-based Audioengine, the brand known for handcrafted home music systems and sound-first engineering, is launching the HXL: a compact, portable headphone amplifier and DAC that delivers high-fidelity audio on the go. Officially available October 6, 2025, for $169 USD, it’s “not a dongle,” even though… well, yes, it kinda is.

The HXL was designed for one clear mission: deliver serious headphone performance in a portable, plug-and-play package. Whether you’re mixing tracks, editing audio, or just enjoying your favorite album, the HXL offers clarity, control, and headroom usually reserved for much larger gear. No batteries. No complicated setup. No dongles—well, not officially. Just balanced, high-resolution sound wherever you go.

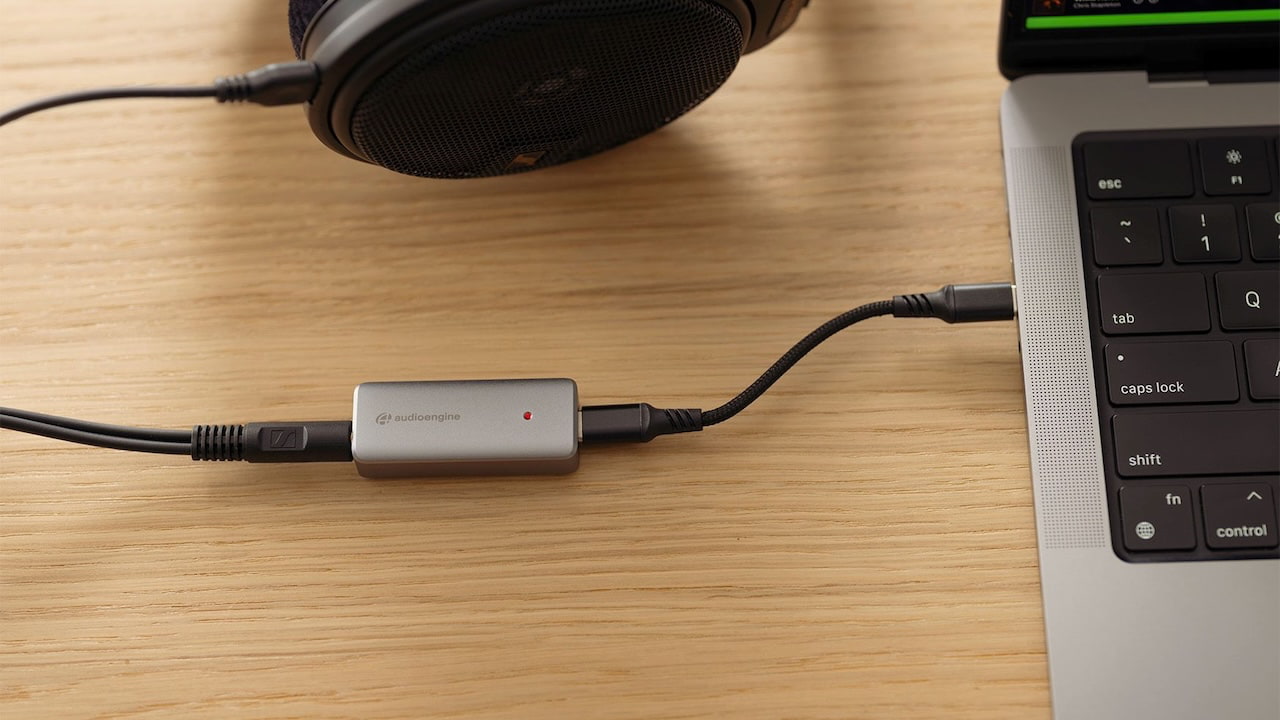

The HXL connects directly to your phone, tablet, or computer via USB-C and draws power from the host device. Inside its CNC-machined aluminum chassis are dual CS43131 DACs, a 60-step digital hardware volume control, and both 3.5mm single-ended and 4.4mm balanced outputs.

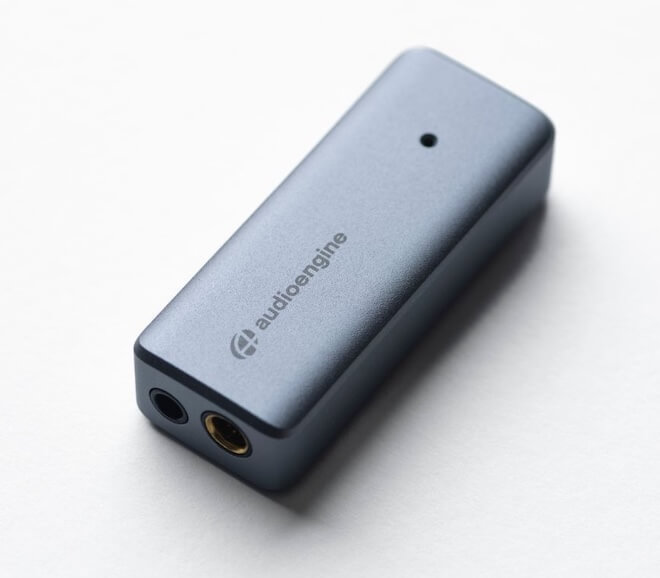

audioengine-hxl-dongle-dac-inputs

Audioengine HXL: Technical Features and Performance Overview

The Audioengine HXL packs serious headphone amplification and DAC performance into a compact, pocket-sized aluminum chassis—think of it as a portable powerhouse that, yes, technically could pass for a dongle, but don’t call it that. It offers both 3.5mm single-ended and 4.4mm balanced outputs, giving users the flexibility to drive everything from everyday headphones to high-impedance studio models.

At its core are dual CS43131 DACs paired with an SA9312 chipset, capable of handling PCM files up to 32-bit/384kHz and DSD256 natively, ensuring clean, high-resolution playback.

A 60-step digital hardware volume control sits directly on the device, while a simple LED display shows playback resolution, making it easy to see whether you’re listening to PCM or DSD content.

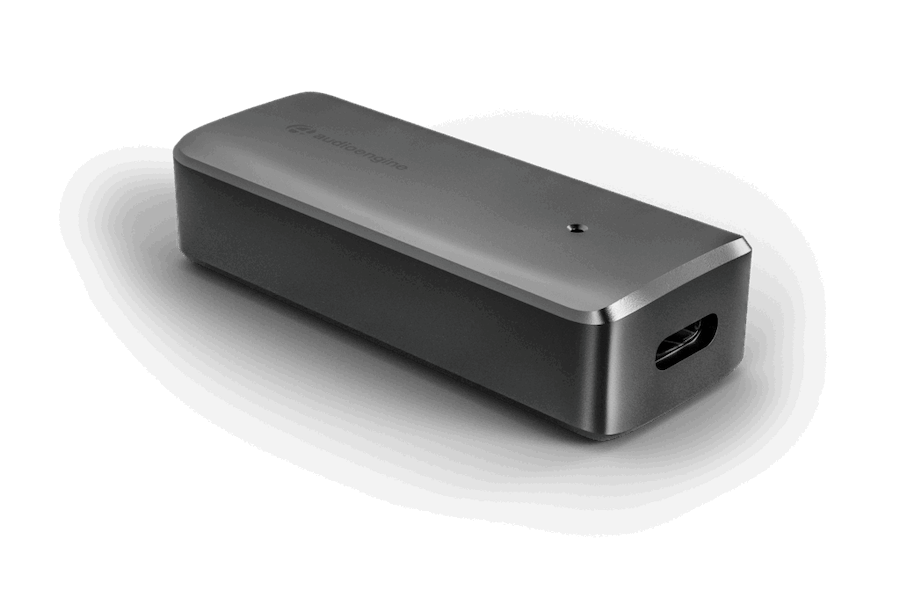

audioengine-hxl-dongle-dac-usb

Its low-noise design, including an external crystal oscillator, low-jitter PLL clock, and carefully regulated power circuitry, produces an impressively quiet noise floor (<1 µV), wide frequency response (20Hz–40kHz ±0.1dB), and extremely low distortion (THD+N of 0.0002%).

Output performance is generous, with the 3.5mm delivering 2.06 Vrms at 600 Ω and the balanced 4.4mm output reaching 4.09 Vrms, alongside ultra-low output impedance (<0.5 Ω) for tight, controlled sound. Signal-to-noise ratios peak at 132 dB balanced and 125 dB single-ended, while crosstalk measures an impressive -129 dB and -96 dB, respectively.

The HXL’s plug-and-play design works across all major operating systems without apps or drivers, and its rugged CNC-machined aluminum case makes it travel-ready for use anywhere—from headphones to powered speakers.

Included in the box are the HXL itself, a USB-C to USB-C cable, a USB-C to Lightning adapter, and a Quick Start Guide—so yes, it’s portable, powerful, and technically a dongle, but don’t tell Audioengine I said that.

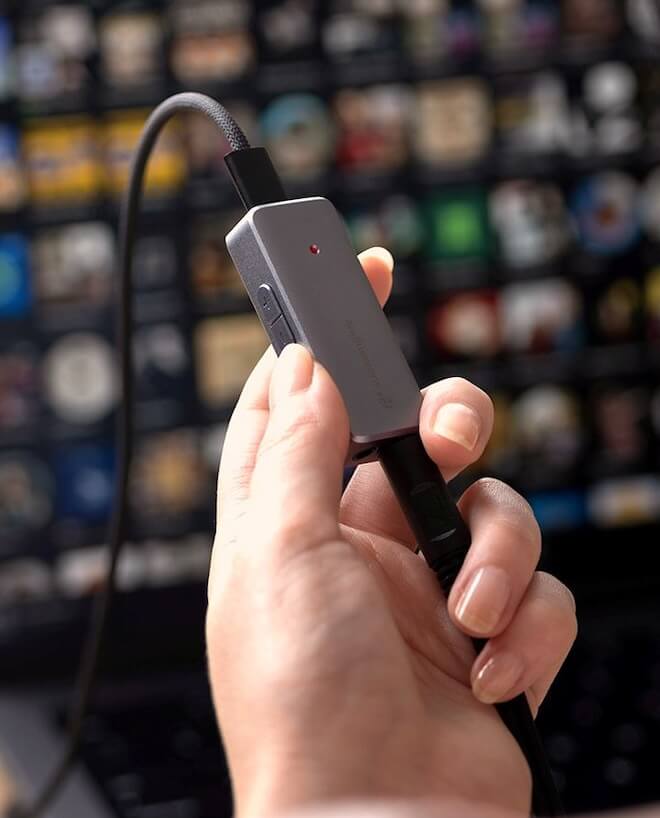

audioengine-hxl-dongle-dac-in-hand

The Bottom Line

The Audioengine HXL is a compact, well-engineered portable headphone amp and DAC that punches above its size without pretending to be something it’s not. Its dual CS43131 DACs, 60-step hardware volume control, and balanced 4.4mm output give it serious headroom, low noise, and high-resolution clarity suitable for both casual listening and demanding studio work.

Advertisement. Scroll to continue reading.

The USB-C-powered design keeps it simple—no batteries, no setup headaches, and yes, technically a dongle, though Audioengine would never call it that.

On the plus side, the HXL offers excellent versatility with single-ended and balanced outputs, wide headphone impedance support (10–600 Ω), and a rugged CNC aluminum chassis that’s genuinely travel-ready. The LED playback indicators and plug-and-play operation across major OSes add to its convenience.

On the downside, it lacks onboard EQ or app integration, and the 60-step digital volume, while precise, may feel less tactile than a traditional analog knob. Compared with competitors like iFi, FiiO, and Questyle, the HXL holds its own in portability and build quality, though audiophiles chasing extreme headroom or ultra-rare features may still lean toward higher-end options in those lines.

Where to buy: $169 at Crutchfield | Amazon | Audioengine
