Viewsat & nfusion antenna settings



New member
Username: Wahidniran

ON Canada

Post Number: 1
Registered: Jan-11
Hi all,

I don't know much about satellites or how to set them up. Recently, I tried to upload a new file to my nfusion solaris, and it went nuts. So I changed it back to Factory Default. Everything's been wiped clean, including the User Settings, Antenna Settings, and etc. I live in Ottawa, Canada, I have two dishes, my LNB Types are Standard as I understand it (I have two LNBs on one of the dishes though, don't know if it makes a difference). So the dishes are pointed right and everything, now I'm wondering if anyone could tell me the Antenna Settings, User Setting, and etc I need to enter to get my channels back. Also, I read that nfusion is down anyways, so I might get my friend's Viewsat Ultra, so it would also help a lot if you could tell me the settings I should use for that just in case. I tried to enter some things i read in threads and stuff, nothing works. Even though I get some good S&Q still when I scan for channels none work.
Any help will be very much appreciated!


Silver Member
Username: Informer

Post Number: 181
Registered: Mar-09
"Quoto"
WahidN........ including the User Settings, Antenna Settings I have two dishes, my LNB Types are Standard as I understand it (I have two LNBs on one of the dishes though, don't know if it makes a difference). So the dishes are pointed right and everything, now I'm wondering if anyone could tell me the Antenna Settings, User Setting,


Could you tell us what satellites are you two Dishes pointed to?


New member
Username: Wahidniran

ON Canada

Post Number: 2
Registered: Jan-11
97w and 61.5, and those are the two I get pretty good signals on. It's just that channels that scan don't work at all, or I might be doing something wrong.

this is what i've been entering:

Satellite..............97w GALAXY25
LNB Power .............ON
LNB Type............Standard
LNB Freq...............10750
22KHz..................OFF
TP Freq................12122
DiESqC 1.0.............Port 2
DiESqC 1.1.............Disable
Switch......................Disable
Motor..................OFF

or for 61.5

Satellite..............61.5 ECHO 3 & RAIN
LNB Power .............ON
LNB Type............Standard
LNB Freq...............11250
22KHz..................OFF
TP Freq................12122
DiESqC 1.0.............Port 1
DiESqC 1.1.............Disable
Switch......................Disable
Motor..................OFF

i think i am wrong with the TP Freq and Switch


Platinum Member
Username: Plymouth

Canada

Post Number: 15937
Registered: Jan-08
WahidN

For 97W put your LNB Type to Universal then perform a channel scanning, if it not work try Port 1!

Nothing to get on 61.5W


New member
Username: Wahidniran

ON Canada

Post Number: 3
Registered: Jan-11
when i put it on universal before i also got a LNB Freq LO which i don't know what to enter.
Also, it is still in factory default, do i need to upload a new bin?


Platinum Member
Username: Plymouth

Canada

Post Number: 15938
Registered: Jan-08
Try Lock TP: 11936H 20000

Do you have a linear LNB to get this satellite?


New member
Username: Wahidniran

ON Canada

Post Number: 4
Registered: Jan-11
I have no idea what linear LNB is. I've got two dishes one with one LNB and the other has two LNBs attached. And i guess somewhere there is a switch connecting all together.


Platinum Member
Username: Plymouth

Canada

Post Number: 15939
Registered: Jan-08
Does those satellites worked before?


Silver Member
Username: Informer

Post Number: 182
Registered: Mar-09
WahidN
Your Receiver Setting for Galaxy 19 at 97.0°W
seem to be OK. Try this, point your largest dish
to Galaxy 19, the dish from your location must be
at lest 33" a 36" would be better with a Linear LNB

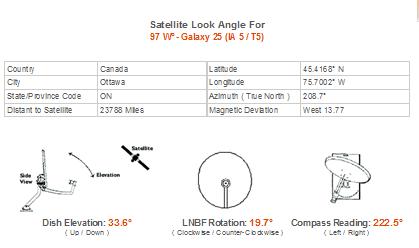

From your location Ottawa, Canada use these settings
Upload


New member
Username: Wahidniran

ON Canada

Post Number: 5
Registered: Jan-11
Yes, they've worked until I tried to upload a new bin on nfusion. Right now I am not at home, but I will follow every step and post the results. So I guess I just should leave it at factory default then? Thanks a lot for your help guys!


New member
Username: Wahidniran

ON Canada

Post Number: 6
Registered: Jan-11
So I did everything you guys told me. I got really Strong signals Lock TP 11936 h 20000, but after the scan just as before, the channels don't work. Black screen, it does say "Service not available i-ON / n-ON / p-OFF / Emul-OFF / SUNS Connected" No idea what that means. And the scan only gave me about 60 channels.


Platinum Member
Username: Plymouth

Canada

Post Number: 15941
Registered: Jan-08
There is more than 250 channels on 97W!

Do a hard reboot with the back panel switch!


Silver Member
Username: Little_bear

Sudbury, Ontario Canada

Post Number: 132
Registered: Mar-08
WahidN.. I don't know much about satellites or how to set them up. Recently, I tried to upload a new file to my nfusion solaris, and it went nuts.

What new file did you try to load ?


WahidN........ I need to enter to get my channels back.

What channels did you lose??

What Satellites are you two Dishes pointed too??


Platinum Member
Username: Plymouth

Canada

Post Number: 15942
Registered: Jan-08
Desert Fox

Read the thread!

2 dishes are pointed on 61.5W and 97W

WahidN

Do a factory default and a hard reboot then try again!
