Need advice with switch and splitters



New member
Username: Golam

Post Number: 9
Registered: Aug-06
Need your advice folks. Currently I have a Bell sub and will be running NFPS with CW800. Right now I have 3 lnbs (91, 82, 119) but only the first two are connected with SW21 switch to the bell box. I need to do the following:

- connect the 119 lnb with a switch
- split the receiver cable between Bell and CW

First of all is this possible? Can I run one cable and split into two boxes? What's the best advice for switches?


New member
Username: Golam

Post Number: 10
Registered: Aug-06
Do I have to run a second cable to connect the second box. Is there a way to split and use both BEV sub and CW?


Bronze Member
Username: Satscanner_ca

BeaversbushGreat White ...

Post Number: 62
Registered: Dec-10
Post your set up, dish or dishes and lnb types
http://www.google.ca/images?hl=en&q=dish+pro&um=1&ie=UTF-8&source=univ&ei=57QLTf ucEYb9nAeK3bjWDQ&sa=X&oi=image_result_group&ct=title&resnum=2&ved=0CDMQsAQwAQ&bi w=1440&bih=766


Bronze Member
Username: Golam

Post Number: 11
Registered: Aug-06
I have 2 dishes. One with dual lnb connected with an SW21 running inside home. Another dish with universal lnb not connected to any switch. My goal is to run a single cable and split for the two boxes (bev sub and CW800)


Silver Member
Username: Chevrolet

Post Number: 427
Registered: Sep-10

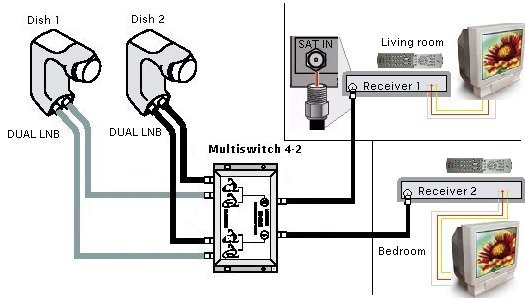

follow this schematic
Upload


Bronze Member
Username: Satscanner_ca

BeaversbushGreat White ...

Post Number: 75
Registered: Dec-10
Were did my earlier posts reguarding this go? wtf?


Platinum Member
Username: Plymouth

Canada

Post Number: 15756
Registered: Jan-08
A multi switch does not work with a Bell receiver!

Use the 2 other outputs of your Bell LNB with a diseq switch then hook 82,91 and 119 to this diseq to your CW, keep your setup for the Bell receiver!

2 cables is needed to make that work properly, one for each receiver!


Bronze Member
Username: Golam

Post Number: 12
Registered: Aug-06
Can I use the antina out of the CW and connect to bell box or use a/b switch to keep one cable?


Diamond Member
Username: Nydas

Post Number: 20416
Registered: Jun-06
golam chow: You WILL need two cables. Keep your current setup intact and run a second set of wires from all three LNBs to a disEqC switch which is essentially a 4 in one out switch. Use this second setup for the CW connection..


Bronze Member
Username: Golam

Post Number: 13
Registered: Aug-06
thanks for all your suggestions.


Silver Member
Username: Chevrolet

Post Number: 437
Registered: Sep-10
Author Subject: Need advice with switch and splitters
golam chowNew member
Username: Golam
Post Number: 9
Registered: Aug-06
Posted on Friday, December 17, 2010 - 12:39 pm:

Need your advice folks. Currently I have a Bell sub and will be running NFPS with CW800. Right now I have 3 lnbs (91, 82, 119) but only the first two are connected with SW21 switch to the bell box. I need to do the following:

- connect the 119 lnb with a switch
- split the receiver cable between Bell and CW

Yes you can,follow my drawing above and do this
wire shown going to the living room first connect
to an A/B switch then from A connect
to Bell TV Receiver and from B connect the CW receiver



First of all is this possible? Can I run one cable and split into two boxes? What's the best advice for switches?

From a Multi switch to the A/B switch in the same room YES you can



PlymouthPlatinum Member
Username: Plymouth

Canada

Post Number: 15756
Registered: Jan-08
Posted on Friday, December 17, 2010 - 06:54 pm:

A multi switch does not work with a Bell receiver!



Bell ExpressVu: SW21, 4 way Multiswitch and SW44.}}


New member
Username: Vicrod

Post Number: 1
Registered: Dec-10
Hello, I have a problem hooking up a switch. I have a 2 in 1 switch; I have the HDMI cable going to output from the TV, a Roku on one input and the Dishnetwork VIP722 on the other. The Roku switches fine, the DishNetwork doesn't. Any ideas? I know it sounds so darn simple. All I want to accomplish is to be able to swithc the Roku and the TV....

Thanks.


Silver Member
Username: Chevrolet

Post Number: 460
Registered: Sep-10
Victor Rodriguez
If you can't get help here try our Home Video Section

http://forums.roku.com/viewtopic.php?t=4284&sid=e87c08ff533f6ff4c177b2b6c76fbe1e

Cheers
