True FTA question for multiple birds on a fixed dish



Bronze Member
Username: Jusme

Post Number: 34
Registered: Jun-06
Can I get Galaxy 18 (123W), 16 (99W), 3C (95W), 17 (91W) on one dish in a fixed position with an adjustable LNB mounting bar? Or is the 123w Bird too far away to get from the others?

Thanks.


Gold Member
Username: Plymouth

Canada

Post Number: 8589
Registered: Jan-08
jake ross

You had not list where you live.

I have 2 dishes with motor, a 33" and a 18" and I get over 25 satellites.

You can get all these satellites and much more with a motorized system.

You can't use a multi bracket as for a Circular dish which is need a 18" dish, you can buy a Invacom Universal Circular/Linear LNB and get both signal, but the aiming for this antenna is very difficult and need to be made by a person experienced.


Bronze Member
Username: Jusme

Post Number: 35
Registered: Jun-06
Ok, thanks. I have a motorized system, but would rather have a fixed dish to feed multiple sets from one dish through switches and multiple LNB's. I use Invacoms.


Gold Member
Username: Dimwitt

Post Number: 1219
Registered: Aug-06
Sorry to hijack your thread, but....when i see 95w I get curious, does your receiver open the rtn channels at 95w.

Looking to buy ariza 700 for those channels, just want to make sure they work before spending 300.00 for ten of them.

C801 00 E134079992603E3B ;RTN (95.0W) (NAG 1)

provider ID is either C801 or C901


Gold Member
Username: Plymouth

Canada

Post Number: 8601
Registered: Jan-08
jake ross

You can't get satellite with less of 9 degree because you will not able to positionned LNB side to side.


Gold Member
Username: Tapeman

New York Citay in-HD, NY

Post Number: 4230
Registered: Oct-06
Plymouth
Yo can get 4 degrees apart with a 90CM dish very easy
[link removed]

Jake
91 with any sat on a 30" dish is no problem
But using a 90 CM dish is the way to go
75CM=30"
90CM=36"
1M=40"

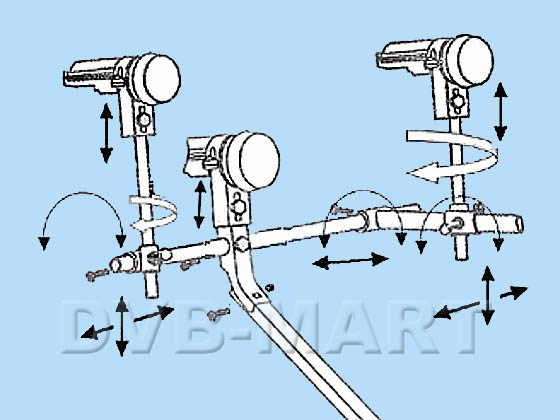

Look into this multi LNB Bracket
Available on e-bay by MX-Mart
Upload

Also SatelliteAV in California sell special LNBs and brackets
[link removed]

Let me tell yo
This is a very challenging installation
But very doable on a 90CM to an expert installer
If yo were to try it
start with 2 LNBs then add one LNB at a time

Just for curiosity
What are yo getting on 99W?
I'm guessing CCTV on 95W is what yor looking for
What state do yo live in?


Gold Member
Username: Plymouth

Canada

Post Number: 8604
Registered: Jan-08
Thank King for the info on Mini LNB.

It can work in regard with the position where you live.

What you do with 93W and 95W?

You can use 2 dishes with standard LNB with enough space you only take one satellite on two.

The best way is motorized dish always on good azimut.



Bronze Member
Username: Jusme

Post Number: 36
Registered: Jun-06
That's the bracket I bought, except it holds 6 separate LNBs.


Gold Member
Username: Plymouth

Canada

Post Number: 8606
Registered: Jan-08
Jake you can't get all satellites you listed,"""Galaxy 18 (123W), 16 (99W), 3C (95W), 17 (91W)"""

OK for 99, 95 and 91 but too far for get all Tp on 123W(possible if you live in Californy).
The problem is when you move away from the dish center,you lose the focus point and lose much signal.


Gold Member
Username: Tapeman

New York Citay in-HD, NY

Post Number: 4232
Registered: Oct-06
Plymouth
I get 123W with a 20" dish in NY area
http://www.lyngsat-maps.com/maps/galaxy18_ku.html

Jake
Plymouth and I asked yo where yo live?
The bracket yo bought and what I posted are 2 different things
I'm very familiar with the one that holds 6 LNBs
It's not the same

I need to know what are yo trying to get with 99W and what state do yo live in?
If yo still want my advice


Gold Member
Username: Plymouth

Canada

Post Number: 8608
Registered: Jan-08
King for sure you not get all 123w TPs with a 20".

6 LNBs on circular dish work fine if you are in center but with Linear??????

King is right, tell us where you live.



Silver Member
Username: Rekman

Mntl-Quebec-...

Post Number: 554
Registered: Jun-06
Hi PLYMOUTH.
long time I havent been here. am too busy- doing some renovation at home.

So ?? wats new ??..
Has the indian channels been released ??.
Any light that they would be releasing soon ??

Give me news about it please.
Remind you I have :-
Viewsat Ultra 200.
Dish 30".


I Need Indian channels and American channels & cartoon..

Awaiting for your reply.


New member
Username: Aam245

Post Number: 7
Registered: Jun-07
Plymouth
I am successful in importing channel file into Channel Master saved originally on USB from SV8kHD.

Now that I have 118.8 bird strange thing is that all the PIDs etc for international channels are showing correct in that file in the channel master. For example GEONW SID 902, TP=11806 all PIDs are correctly showing as 4642 and 4643 for that bird. So whats the use of creating / adding a dummy channel with these PIDs when the PIDs are already correct in the original channel althugh they are scrambled.

Donno what to do. Guidance is appreciated. Please note that I am not pointing at 61.5. I am pointing at 118.8.
Thanks


Gold Member
Username: Plymouth

Canada

Post Number: 8610
Registered: Jan-08
Hi! MKM

No signal on all satellites for me tonight because a ?&*# snow fall.

I can get all local channels with my new antenna on roof.

Nothing new with Indian channels only many rumor.

As I said for your dish found a installer who can help you, from here it's very difficult for me to help you, I don't know what try new.


Gold Member
Username: Plymouth

Canada

Post Number: 8611
Registered: Jan-08
Aam

You can get nothing on 118.8W, those channels are only on 61.5W


Silver Member
Username: Rekman

Mntl-Quebec-...

Post Number: 555
Registered: Jun-06
Thanks for answering me PLYMOUTH.

Snow ???...Ohh !! I pray it dont fall until Automn.
Here : since Thursday its still raining and strong wind.

OK Then I will come back when I have time. Hope the Nagra 3 will come soon.
People must keep Praying for the release huh !!!

Ok bye


Gold Member
Username: Plymouth

Canada

Post Number: 8616
Registered: Jan-08
Bye MKM


New member
Username: Aam245

Post Number: 10
Registered: Jun-07
Plymouth
Those channels are also available on 118.8 however with different VIDs and PIDS. All the international channels and even more are also available on 118.8

It seems on 61.5 you are asking people to manually input the PIDs and creat dummy channels for them...however why it cant be done to 118.8 channels...because when i open the file in the channel master their PIDs are already correct.


Gold Member
Username: Plymouth

Canada

Post Number: 8619
Registered: Jan-08
Aam

The pid numbers have nothing to do with the encryption, The PID is a adress on compressing signal from a transponder for be able to put many channels video audio and data in same signal.

Why the dummy channels work with manualy entering on 61.5W and not with a scan, because the data info on channel is not there and the scan can't found this channels, it is ghost channels.
Many channel not encrypted are on Feed channels for Local TV from the national provider like FOX.

Your channels are scramble because gone on N3.
