King Taperman, I need your help



New member
Username: Dannymasoc

CA USA

Post Number: 1
Registered: Nov-06
King, I've recently had 18 inch dish for 91, 97 and a 500 dish for 110,119. I've just bought a Fortec Star 90cm dish with 3 LNB for 110, 118+119, 129-- to replace dish 500. How to connect for 4 receiver?
Your suggestions will be very appreciated.


New member
Username: Dannymasoc

CA USA

Post Number: 2
Registered: Nov-06
Oh sorry King, i forgot to tell you that I'm living in Southern California


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3220
Registered: Oct-06
Danny
I'll help yo in few minutes
I'm in a middle of some serious FTA tests


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3222
Registered: Oct-06
Danny
6 sats to 4 receivers that's tough
Firstly
How do use an 18" dish for 91/97?

Secondly
- DP44 (4-sats to 4 receivers) maybe best affordable choice if yo have DP or DPP LNBF (about $70) from e-bay but it requires 1000mA which most FTA receivers don't support
- DP34 is very similar to DP44 but for (3-sats to 4 receivers)

- Either choice will still not get yo 6 sats to 4 receivers

There are some real high tech switches but still best will be 3 sats

Thirdly
Suggested solution will be to cascade yor own switches but yo have to very good wiring installer, on a scale 1 to 10 (must be 10)

Another possible solution is to use a DP34, one HF splitter, 2 or 3 22K Sw and must be good wiring installer on a scale 1 to 10 (must be at least 9) but fewer wirings


Gold Member
Username: Plymouth

Quebec city, Quebec Canada

Post Number: 3287
Registered: Jan-08
From Sadoun.com

Connecting 4 Receiver x 8 Dishes (LNBFS)

*

Hook each 2 Dual Output LNB's to a 4x4 MultiSwitch (you will need Qty 4).
*

Repeat 3 times for each pair of LNB's
*

Hook one output from each MultiSwitch to a 4x1 DISEqC switch (you will need Qty 4)

Setup each DiSEqC switch

*

Port 1 22k off
*

Port 1 22k on
*

Port 2 22k off
*

Port 2 22k on

*

Hook each DiSEqC switch to one receiver


Gold Member
Username: Plymouth

Quebec city, Quebec Canada

Post Number: 3288
Registered: Jan-08
Here is the link:

http://sadoun.com/Sat/Installation/Multi-LNBF/4-receiver-8-lnbfs.htm

Use 3 multiswitch not 4


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3224
Registered: Oct-06
Sadoun got one mistake
It's a 3x4 switch not a 4x4

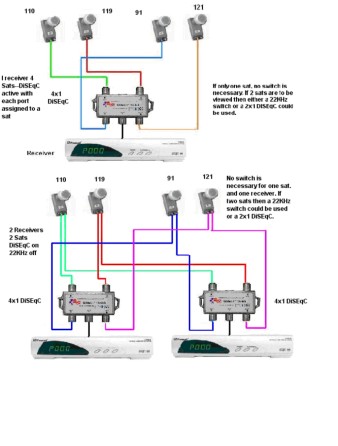

It will look something like this:
But this is for 4 sats
Combine 2 sats to one by 22k Sw to make it 8 sats just before D-switch
I have'n sketched yet

Upload

Reference
https://www.ecoustics.com/cgi-bin/bbs/show.pl?tpc=2&post=1496586#POST1496586


Gold Member
Username: Plymouth

Quebec city, Quebec Canada

Post Number: 3291
Registered: Jan-08
No King

Like this but 3 4x4 multiswitch(select 2 LNB with 0-22Khz Tone) for 6 LNBs and use 3 port on 4ways Diseq
Select Legacy in LNB menu
Upload


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3227
Registered: Oct-06
Yep
I see what they meant
4x4 will slightly be less wiring
http://sadoun.com/Sat/Products/Zinwell/Zinwell-SAM4402-3A-DirecTV-Approved-Multi switch.htm

But I was gonna combine 2-sats with a 2 way 22k sw right before D-switch

But still this is a nightmare to connect and make it work even by the best FTA expert

Too much coax connections
I don't know if worth it


Gold Member
Username: Plymouth

Quebec city, Quebec Canada

Post Number: 3292
Registered: Jan-08
It work on Viewsat but not all receiver

I think it work too with Fortec star

Need Legacy option


New member
Username: Dannymasoc

CA USA

Post Number: 3
Registered: Nov-06
King and Plymouth,
Thanks a bunch.

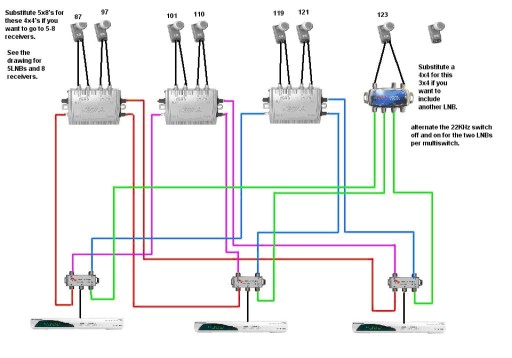

Today, my friend draw this for me
But the problem is only 5 satellite were carried.
He told me if want 1 more sat, just get 1 more 4x4.
How do you guys think, is that possible Upload


Gold Member
Username: Plymouth

Quebec city, Quebec Canada

Post Number: 3307
Registered: Jan-08
Danny
Yes add 1 4x4 multiswitch and connect each output on port 3 on each Diseq


Gold Member
Username: Tapeman

New York City in-HD, NY

Post Number: 3237
Registered: Oct-06
Yes that sketch should work
However to get to wrok

- Yo have to apply all coax coming from LNBs first
- One by one yo try one DISEqC switch at a time
- Connect one coax to each receiver and apply antenna setup also one at a time


Use RG-6 quad shield with snap an seal connectors at least from LNB to switches to maintain highest DB signal without interference

Coming out of switches to receivers can be RG-6 Double shield as it is less money
I get 1000 feet for $50

Wires to switches must be Quad shield


New member
Username: Dannymasoc

CA USA

Post Number: 4
Registered: Nov-06
Thank you, King and Plymouth,
I'll try it tomorrow-Sunday.
Have a nice day.


Gold Member
Username: Doreenakadj

Ontario Canada

Post Number: 1803
Registered: Dec-06
5 Sats---8 receivers
7-8 Sats---3 Receivers
7-8 Sats---4 receivers




Upload
Upload
Upload
Upload


Gold Member
Username: Plymouth

Quebec city, Quebec Canada

Post Number: 3318
Registered: Jan-08
Doreen you forget some info

Upload
Upload
Upload
Upload


Gold Member
Username: Doreenakadj

Ontario Canada

Post Number: 1804
Registered: Dec-06
LOL Plymouth what's that all about with my name?


Gold Member
Username: Doreenakadj

Ontario Canada

Post Number: 1805
Registered: Dec-06
Sorry I am not like King bubble-head and try to take credit for someone else's work or product.


Gold Member
Username: Plymouth

Quebec city, Quebec Canada

Post Number: 3319
Registered: Jan-08
Doreen just for laugh
LOL
