- View Standard Definition/High Definition contents (MPEG2 and support MPEG4 AVC/H.264) - Fully Digital HDMI ( SD/HDTV formats) - Full Compliant of MPEG-S &DVB-S2 Digital & DVB broadcasting - 2 Common Interface - Front USB connection - Card Reader embedded - 950-2150 MHz input Frequency (IF Loop Throughout) - Satellite Scan - Simultaneous Scan with 4 Satellites - Flexible receiption of SCPC & MCPC from C/Ku-Band Satellites - Variable Input Symbol Rate (1-45 Msps) - Video output resolution: 480p,720p,1080i - User selectable output resolution - EPG (Electronic Program Guide) - Multi language OSD - Automatic PAL/NTSC Conversion - Fast Channel Change - 5000 Channels TV & Radio program - Timer Function (Automatic Turn On/ Off by Setting Function) - Conditional Access - RTC (Real Time Clock) - PIP , PIG (Picture In Graphic) - 5 Favorite List & Unlimited Programs per each - Powerful Channel Editing Fuction - Sorting: Alphabetic, Satellite, FTA/Scramble, Parental Lock - Move, Delete, Favorite Edit - Parental Lock, Channel Rename, Channel Skip - Manual PID/ Satellite & TP/ Network Scan - S/PDIF (Digital Audio or Dolby AC3 Stream out) - 1 optical digital output for Dolby Digital and PCM digital audio - Diseqc 1.2 and USALS Compatiable - Comparable of Setting the Frequency for SMATV System - SD Memory card compatible(JPEG,MP3,firmware download) - Software Upgrade via RS-232C (Receiver to Receiver, PC to Receiver) - Component Out (YPbPr) - Universal Remote - OTA

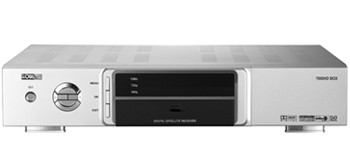

Pansat 7000 HD Specs
Front-End - 1 Input Connector F-type, IEC 169-24 - IF Input Frequency 950MHz to 2150MHz - IF Loop Throughout 950MHz to 2150MHz - Input Level -65 dBm~-25 dBm - LNB Power 13 /18VDC / 500mA Max - DiSEQqC Control Diseq1.2 & USALS compatible - Band Switch 22KHz Tone - Modulation method LDPC/BCH(DVB-S2) 8PSK/QPSK, DVB-S QPSK - Symbol Rate LDPC/BCH(DVB-S2) 8PSK/QPSK :10~30Msps / DVB-S QPSK: 1~45Msps - Viterbi Decoding Rate 1/2,2/3,3/4,5/6 and 7/8 - Reed Solomon Decoding FEC: 204, 188. t=8 - LDPC/BCH Punctured Code ,1/2,2/3,3/4,3/5,4/5,5/6,8/9,9/10 in DVB-S2
MPEG transport Stream A/V Decoding - Demultiplex According to ISO/IEC 13818-1 - Input syream Max. 90Mbit/s - Aspect Ratio 4:3, 16:9 - Video Resolution 1920 x 1080 - Audio Decoding MPEG Layer l & ll , MPEG-4 AAC+ - Audio Mode Single Channel /Dual Channel, Stereo, Joint Stereo - Audio Sampling Frequency up to 192KHz
Data port - Connector 9 Pin D-Sub Type - Protocol RS232 Asynchronous - Data Rate Max. 19.2Kbps
RF Modulator - Connector IEC 169-24, Male/ Female - Frequency 470-860MHz (UHF) - Output Channel CH 21-69 - TV Standard PAL-B/G,D/K, I,M Selectable
Front Panel - 4 Digits LED Channel Number Display - 8 keys Power,Channel Down/Up, Volume up/down,Menu,Exit,OK - VFD VFD Display
Rear Panel - IF Input F-type Connector - IF Loopthrough output F-type Connector - 6 Phone (Cinch) Video, Audio L, Audio R, YPbPr - Scart TV / VCR <---- This we won't get - S/PDIF Optical - HDMI Type A - S-VHS 4-pin Mini- Din - Modulator F-type - RS232 Serial Port 9 Pin D-Sub Type
Electrical and Mechanical - Input Voltage AC 90-250V, 50/60Hz - Power Consumption Max. 45 Watts - Standby Power Less than 10 Watts - Size(WxHxD) 340x245x65mm - Weight 2.1kg
well we use as a receiver for about a week or two, but then wen we are in dark for the next 10 months waiting for a fix, we must use it as a door stop in the front and back door. see how pansat people are creative and think about everything..they should add a cupholder on top too.
watch out guys, someone is going to post something about true FTA chanels working on all pansats..... like anyone is going to buy a PVR for true free programing!
Dear Users, The rumors are flying that we are down for good... THIS IS FALSE INFORMATION..... We are going trough a server migration. The database is secure, and in tact... please bare with us while we migrate the site... Thank You and do not believe the rumors you hear. We will be back... stronger then ever before! www.fta4dummies.com
Do you really think anyone will buy a Pansat now or in the future remember we started our boycott on the 1st of september will never again buy anything from Pansat no support for there product nor do there people come out with a status on what they are doing to try and fix the problem.
- Front USB connection - Card Reader embedded Plus, Mpeg-4 for HDTV... - SD Memory card compatible(JPEG,MP3,firmware download) This baby can be used if you get some plastic... But i am not sure of any permanent plastic fixes... Maybe you can do card sharing with one of ur family/friends? Hmm... This baby is gonna be useful if you do card sharing. Also, the SD card for if pansat gets a fix again, you can easily load bins without having to disconnect your pansat from the T.v. to bring to your computer. USB connection can be used to do something thats similar to plastic (i heard about it before in this forum.) I dont know, but you guys cant just hate it.
Oh and juanchg, there is no hard drive in this machine, don't just post stupid things like that... Why in the hell would there be a hard drive in a receiver? Just think about it + READ IT...
