Extreme makover: Atomic APX edition



Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2904
Registered: May-07
Bought the APX as a 10" last spring that was in need of a recone. Recone kit was ordered from David Moore aka Team PSI. Anyways on with the pics...!!!

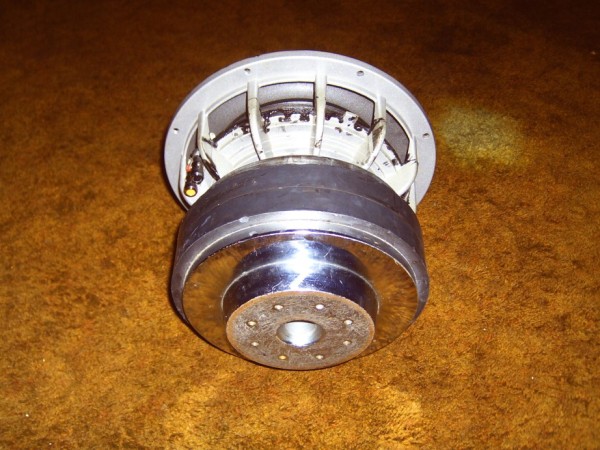

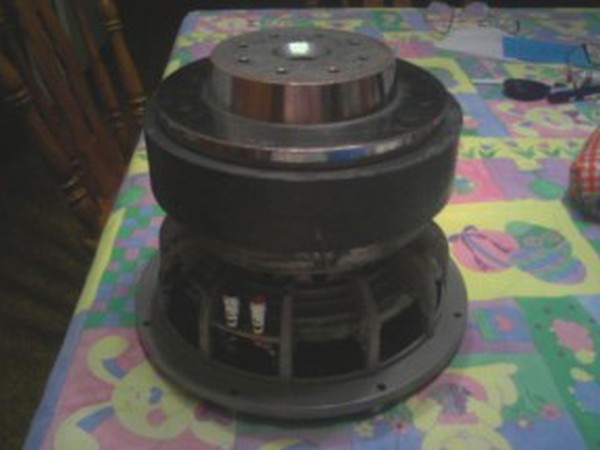

Here's some pics of her a lil 10", all that glue was a pita to clean off the motor.
Upload
Upload
Upload


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2905
Registered: May-07
On with the recone...

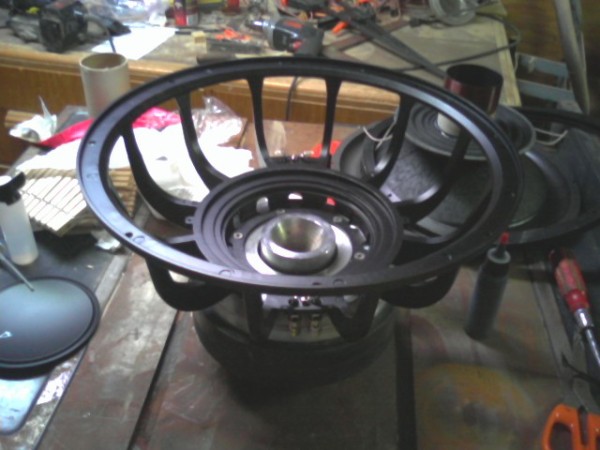

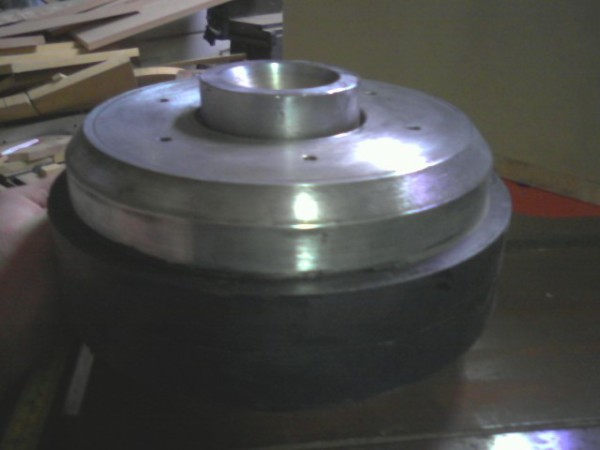

Cleaned the motor to bolt on the new basket
Upload
Upload

Shims for the gap
Upload
Upload


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2906
Registered: May-07
Upload

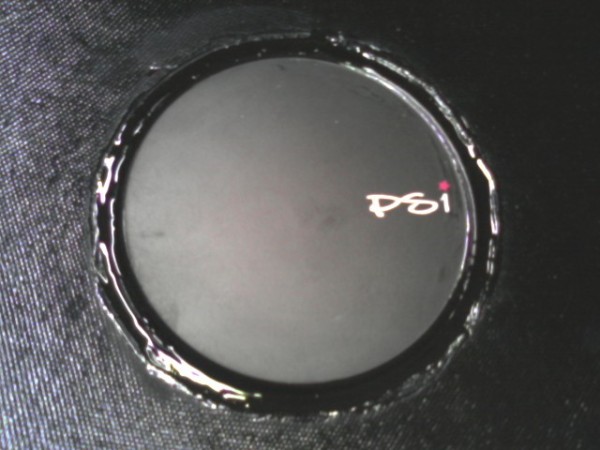

Titebond II was the perfect candidate for weight
Upload
Upload

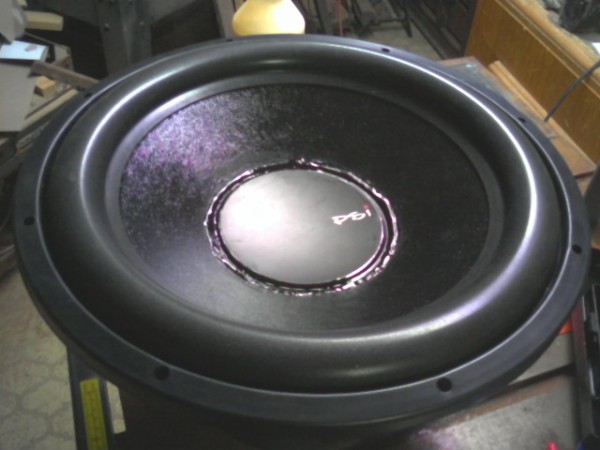

Isn't she cute?
Upload



Gold Member
Username: Th3pwn3r

I compensate...

Post Number: 9533
Registered: Jul-06
Sure, did you make sure the VC scrapes the pole piece?!


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2908
Registered: May-07
^ ya I made sure that they made a good connection


Platinum Member
Username: Insearchofbass

York, Pennsylvania

Post Number: 13019
Registered: Jun-04
Way to resurrect a beast


Diamond Member
Username: Wingmanalive

Www.stainles... .ecrater.com

Post Number: 21863
Registered: Jun-06
Nice tutorial.


Silver Member
Username: Domenico

BanginGMCArizona

Post Number: 404
Registered: Apr-09
Looks great.


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4236
Registered: May-07
it's alive!! IT'S ALIVE!!! IT'S ALIVE!!!! IT's ALIVE!!!!!


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4237
Registered: May-07
Upload

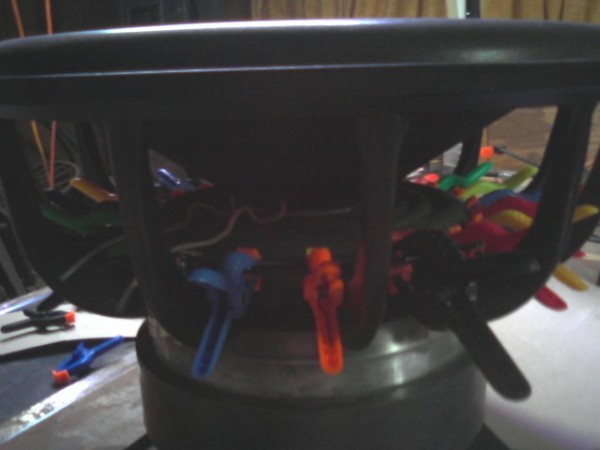

nice clamps lol. btw, I am kidding. Sweet recone. Now put er in a box on about 5k.


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2909
Registered: May-07
@ mark, them lil cheapo clamps came in handy. Hopefully start on the box in a few days. Going to be ran on my AQ2200 @ 0.7ohm for right now.

Thanks guys for the comments. I played it free air today and everything seemed solid


Diamond Member
Username: Wingmanalive

Www.stainles... .ecrater.com

Post Number: 21866
Registered: Jun-06
Some tools are both useful and cheap. Nothing wrong with a $1 clamp if it not only does the job but doesn't hurt your feelings when it breaks.


And those will break.



Reminds me of my surround replacement thread.


https://www.ecoustics.com/electronics/forum/car-audio/355935.html


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2911
Registered: May-07
Lol I couldnt help but think of that thread when I started this project. I think I told you before but I will say it again you did a very nice job on that surround replacement. I remember when I first saw it done I was blown away!

My next woofer project is replacing the cone on my la storm x1, which is very similair to the eclipse Ti. should be interesting. lets just say the cone didnt like it when I fed it 2kw


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4242
Registered: May-07
Paul's resurround thread is one on my alltime fav's on here. Top notch work... Clamps are no where near as g@y lmao!


Bronze Member
Username: Sundownz

Mooresville, NC USA

Post Number: 93
Registered: Nov-06
That gap looks super tight -- 4 layer coil ?

I re-coned an older Atomic motor recently and it had only 0.5mm clearance on both sides of the coil with a 4-layer... silly tight!


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2917
Registered: May-07
Yup 4 layer. the gap is ignorant tight! the gap is 81.8m in diameter


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 2256
Registered: Jun-07
that looks pretty nice


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4261
Registered: May-07
Gawddamn SDD. 81.8m in diameter?? How big is that fu<kin' sub?

With a gap that big, it has to resemble my 1st ex-wife..





























Silver Member
Username: Woofers4life

Lexington, Tennessee

Post Number: 157
Registered: Mar-09
mark i really just fell in the floor and laughed my ba!z off. reminds me of a few ex girlfriends as well haha.


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4262
Registered: May-07
LOL.. I feel ya.. I know a thing or two about them Tn. women.

I'm pretty sure SDD knows i'm fu<kin' around.


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4263
Registered: May-07
lol.. i just noticed that the clamps kinda match the tablecloth. lol



Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2919
Registered: May-07
ya we like to color coordinate our clamps and table cloths.

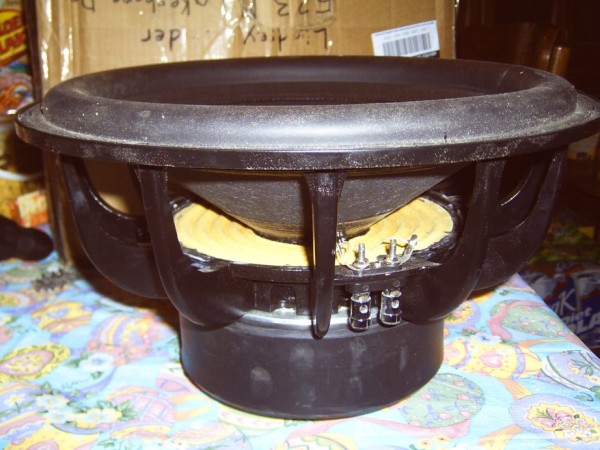

My mom always thinks we have to have decorative table cloths. check it out..heres some pics of moofers taken at different times..


Upload
Upload
Upload

...and you think my clamps are g@y, look what I have to put up with all year round
