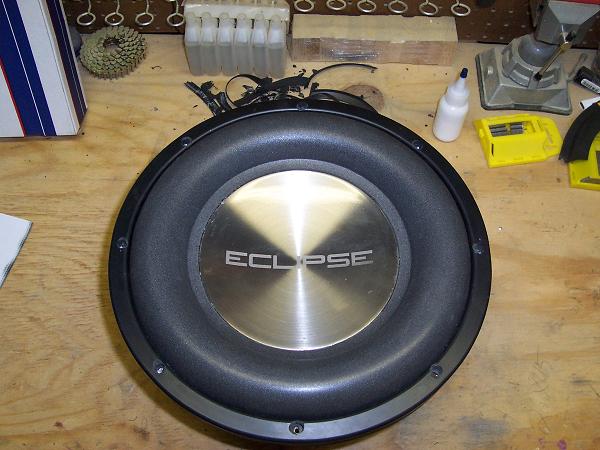

So I bought Isaac's 12" Eclipse TI sub awhile back. It had a 3" tear on the surround. The tear didn't make it's way through the surround but was going to.


Upload


What next? It was going to get fixed one way or another. So thanks to Brad for suggesting

http://www.speakerworks.net/kits.html

They had excactly what I needed. I figured I'd show you guys how relatively easy it is to repair a torn surround.


Kit has arrived. A pair of surrounds, glue, instructions and a brush. Why they sent me a pair of narrow surronds I have no clue, their mistake. Total cost of surrounds and kit: $48.




Upload

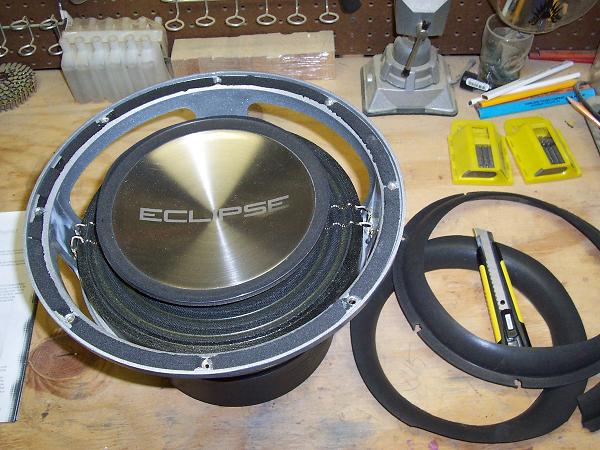

First order of business is to remove the old surround. It felt kinda weird taking a razor blade to the surround, like breaking a law or something. Lol.

Upload

Next was to remove the remaining surround material from the basket. Tool of choice? Your hands. It takes some time and patience but you can "roll" it off in time with some pulling. I was concerned about damaging the basket and used a sharp chisel to help. Used Goof off to help clean up the basket.

Upload


Next was to remove the old surround material from the cone. Obviously since this sub has a titanium cone this process was so much easier than if it were a paper or plastic cone. Same method, rolled it off using mostly my hands. Cleaned it up using Goof off as well.


Upload


So now we dry fit the new surround to make sure it fits. It does. PERFECTLY!


Upload


Now we raise the cone to accept the new surround. I raised it using a couple of aluminium bars.


Upload


Now we start with the glue. Applying it both to the surround and cone.


Upload


Once the surround is set it's important to apply pressure to the joint while it sets. I found an old masonry blade the perfect size and held it down with the best paper weights I could find. A pair of Pyramid royal reds. Who said they're worthless? Lol.


Upload


Once set I'm ready to glue the surround to the basket. It's important to center the surround/cone or you'll get the VC scratching the sides, a baaaad thing. I lifted the surround and applied the glue.


Upload


Now we firmly and uniformly clamp the surround to the basket. How did I find a way to do that? Well I grabbed an extension cord and used it in conjuction with many clamps to assure an even pressure along the surround. Worked for me.


Upload


Removed clamps after several hours, cleaned up any excess glue.


Upload


Replaced the rubber gasket and viola!


Upload


With just a little time and effort it wasn't very hard at all. A little patience and good hand skills and you're there.
