Box Build Please help!



New member
Username: Drittz

Post Number: 1
Registered: Nov-12
Hello, I need help with a box design for 2 15' Alpine Type S'.Im relatively new to car audio and don't quite understand how to design a box, but i definitely can build one. Please any help would greatly appreciated.

Car- 2001 Ford Focus Se Wagon


Gold Member
Username: Joe1234

Post Number: 1707
Registered: May-09
Post max dims for a box and the amp model you are powering the subs with.


New member
Username: Drittz

Post Number: 2
Registered: Nov-12
I have max dimensions in the car are 45x45 inches, and im hoping to get around 40inches wide or around there height doesn't really matter or length. The amplifier will be a Hifonics GLX1400.1D.


New member
Username: Drittz

Post Number: 5
Registered: Nov-12
I have max dimensions in the car are 45x45 inches, and im hoping to get around 40inches wide or around there height doesn't really matter or length. The amplifier will be a Hifonics GLX1400.1D.


Gold Member
Username: Joe1234

Post Number: 1709
Registered: May-09
Ok here is one possibility:

Enclosure Specifications:

Fb = 33 Hz
Vb = 7 ft^3

External Height = 17 in
External Width = 37 in
External Depth = 30 in

Port Width = 26 in
Port Height = 3 1/4 in

Cut Sheet List:

* All Dimensions in Inches.
* Wood Thickness is 3/4 for all Parts.

External Enclosure Parts:

2 x Top & Bottom (3 parts) = 37 x 30

Left & Right Sides = 28 1/2 x 14 3/4

Front & Back = 37 x 14 3/4

L Port Internal Assembly Parts:

Front to Back = 20 x 27 1/2

Port Left Side Assembly:
20 x 3 1/4
Port Right Side Assembly:
20 x 3 1/4

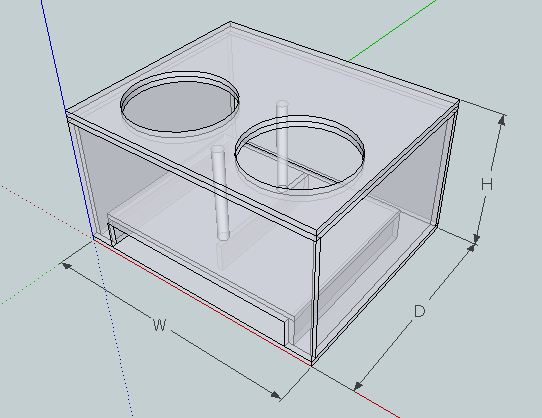

Assembly guide (generic dimenions):

Upload


Silver Member
Username: Makinblak

Monroe/Monticello, La/Ar

Post Number: 879
Registered: Oct-10
That's $10 worth of info right there


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 2625
Registered: Jun-07
wow... how nice
