How to wire amp to sub?



Silver Member
Username: Noob101

Taylorsville, Utah USA

Post Number: 227
Registered: Jul-07
How would i wire my amp to my sub...
Sub: Fi Q 12" dual 2

Amp: Ed nine.1

set it up like 3-5 years ago and forgot how i had it. Ha i believe i had it wired to 1 ohm at 1200 watts rms.. Any diagrams would be extremely helpful. Thanks guys.


Silver Member
Username: Alonzoub

Post Number: 173
Registered: Apr-10

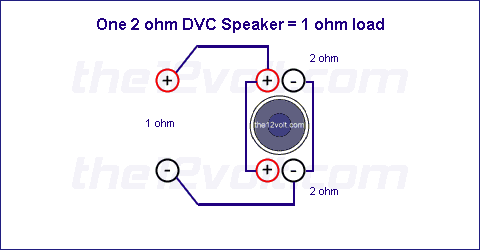

Just wire the coils in parallel for a 1-ohm load.

Like this:
Upload


Gold Member
Username: Loc_out

SoCal

Post Number: 3294
Registered: Feb-05
Flaw
use the link below has a bunch of information on how to wired sub's.

http://www.the12volt.com/caraudio/woofer_configurations.asp


Gold Member
Username: Th3pwn3r

I compensate...

Post Number: 9798
Registered: Jul-06
Just remember that wiring in parallel will drop the resistance and wiring in series will increase it.

2ohm+2ohm in parallel=1 ohm
2ohm+2ohm in series=4ohm


Bronze Member
Username: Caraudio4life

Clovis, CA USA

Post Number: 36
Registered: Nov-10
just make sure the wires plugging into amp are from two separate voice coils, after connecting each voicecoil with its appropriate wire. for some reason when i fix a buddies system they thought they wired in parrallel have it half right only they take a positive and negative from the same voice coil to the amp, so only one coil is on technically, hope this helps
