4-dr Nissan Titan 2-DD1008 build



Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 8465
Registered: Mar-04
0.8cuft per sub, ~37hz 'in-cabin' tuning.

Kinda a goofy box to build. Quite a few panels have to be trimmed out w/ a router and flush-trim bit.

Upload

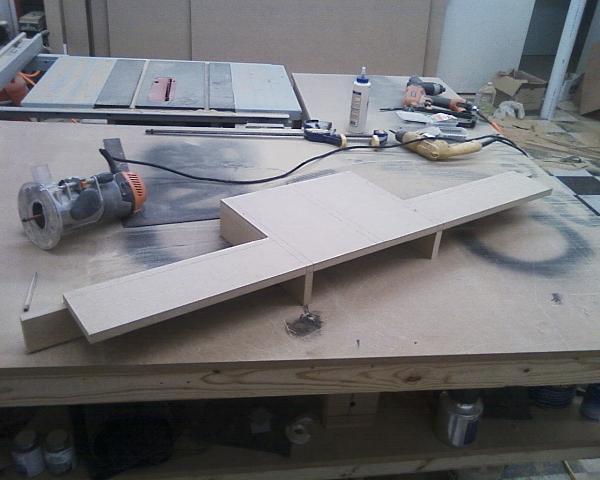

Base of the box w/ 3" risers to clear the trans-hump. 2 extra boards temporarily mounted to allow for that area of the panel to be flush-trimmed off.
Upload

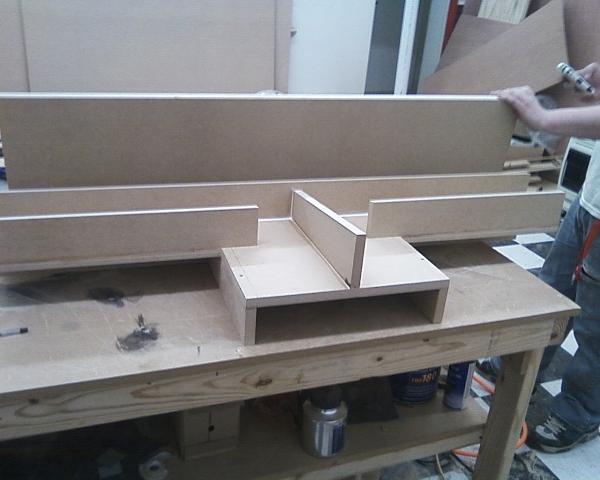

Port walls in.

Upload

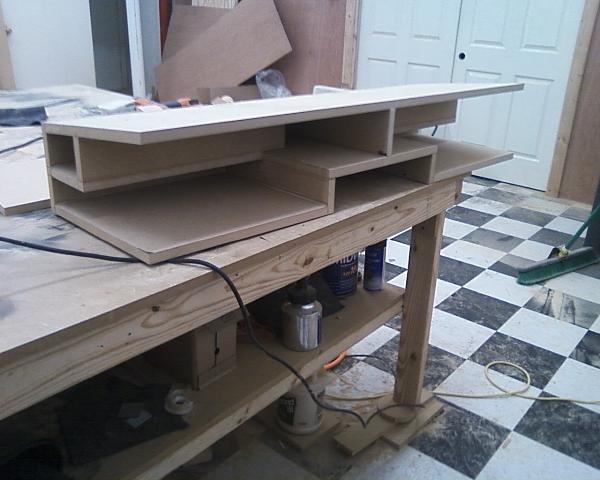

Center divider and back wall on.
Upload
Top on.


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 8466
Registered: Mar-04
Upload
Front and side walls on. Ports trimmed out w/ router flush trim bit.
Upload

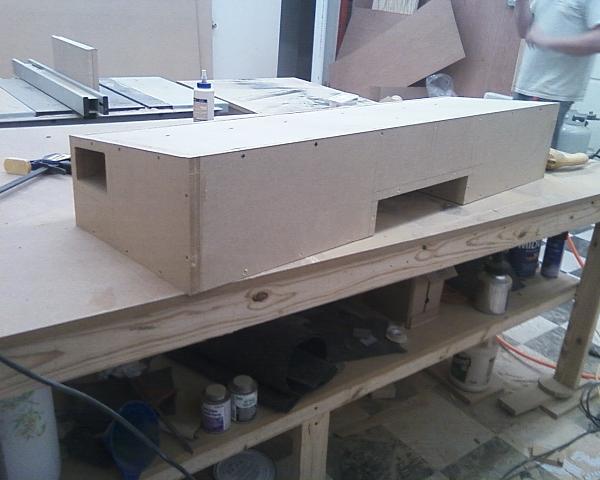

Trans-hump notch trimmed away w/ router.

Upload

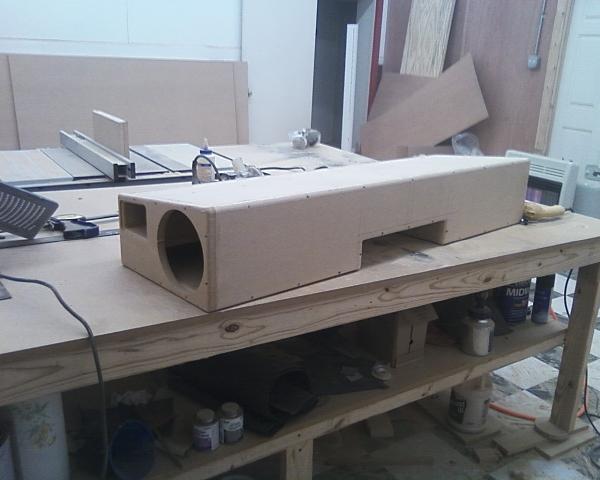

Sub holes cut, box and port rounded over
Upload


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 8467
Registered: Mar-04
Upload
Ports painted.
Upload
View inside from the sub cutout.
Upload

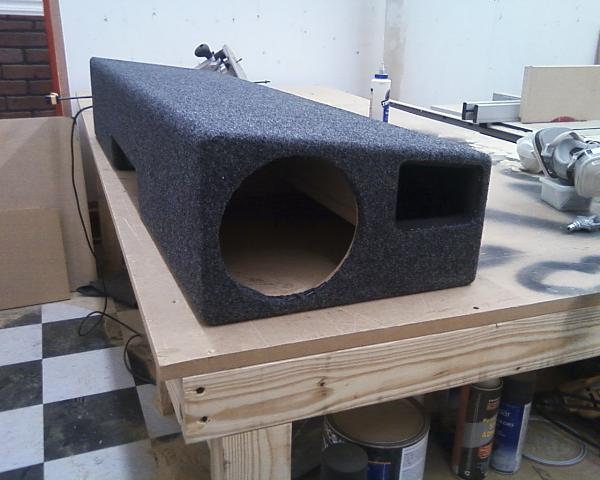

Box carpeted.
Upload
Another view of completed box.
No carpet seams on this one. Its glued and stretched, then stapled underneath.

The subs are mounted on the side to help w/ loading and to keep people from kicking them in. They will be ~4" from the doors of the truck. Our DD shipment will be in tomorrow. Just gotta run some 12ga wire in to the box and mount up the subs.


Gold Member
Username: Bernymac

Phnom Penh Cambodia

Post Number: 4894
Registered: Sep-04
Love your box building skills Canaan. Reminds me of a local box builder here that me and Chad use to go to all the time. His boxes were just flawless.


Gold Member
Username: Tatonka

-[Team Audible Insanity]-

Post Number: 3336
Registered: Mar-07
Only took us about 3 hours haha. Not bad tho for a first time build. Went really smoothly. Stay tuned tomorrow for some more builds =)


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 8468
Registered: Mar-04
Yea, took quite abit longer than usual to build this box. It's the first one of these, Nick was there to help me get it going.

I designed it last week, but getting the idea together of how to flush-trim the panels and make it fall in place took longer that simple square boxes. But, now that I've done it once...we can rebuild it quite a bit quicker.


Gold Member
Username: Gcs8

Atlanta, Ga

Post Number: 1927
Registered: Sep-09
very nice, tell us how it sounds.


Silver Member
Username: Makinblak

Monroe/Monticello, La/Ar

Post Number: 401
Registered: Oct-10
That is sickly complicated. I might bring my truck in for my next box seeing how you do things.

Also, if I wanted you to do my big 3 in 1/0, how much you think that would run?


Platinum Member
Username: Nd4spd18

Philadelphia, PA

Post Number: 11715
Registered: Jul-06
So you're back at the shop now and have time to build boxes... so that means you shipped my stuff right....


Bronze Member
Username: Canaanwhiite

Monroe, Louisiana USA

Post Number: 25
Registered: Nov-10
lol youll get it
