Rd sonance enclosure
|
Silver Member Username: Wackzirth88K-town, Il U.S. Post Number: 174 Registered: May-09 | i jus got one rd sonance 12. i want to build a ported box for it. i dont kno the recommended enclouse for it, but thought mark or someone would have a couple ideas. my trunks pretty small so it cant be taller than 15", any deeper than 18" and width prolly wont be a problem for a single sub enclosure. but throw it in there anyways cant be wider than 37". id like it tuned to like 32 hz or so. unless itll do better tuned a lil higher or lower. |
|
Silver Member Username: BoomtankRochester, NY USA Post Number: 666 Registered: Oct-06 | I have 2 15" RD Sonance, very nice subs. The 15's are in 3cu^ft @ 32Hz with 60sq^in port face each. Sound Great. Maybe try a 1.8cu @ 32 or 35hz. Should sound good. |
|
Silver Member Username: Wackzirth88K-town, Il U.S. Post Number: 175 Registered: May-09 | yea i was thinking like 1.75 cu ft or so. i dont really kno how to figure it. could someone shoot me some dimensions. eddy wat u got powerin the ur 2 15s. i jus got one to play with, see if i like it. its d2 and i got a rd 1000.1, 1300 rms at 1 ohm. im pry gonna break it in for like a month wired at 4 ohms then wire to 1 and see how it does |
|
Silver Member Username: BoomtankRochester, NY USA Post Number: 668 Registered: Oct-06 | I have a Treo SSX750.1 at 1 ohm for the pair. 1500 watts rms. I just received my rd 3250v2 and I am looking to run 3 15's at .667 ohm. I would set your gains to about 800-1000 watts rms for the one. If it seems like it can take more do it, but start off around 800 watts. Shoot me an email: eddy@structuredconceptsaudio.com I'll draw up a box and send you the dim's |
|

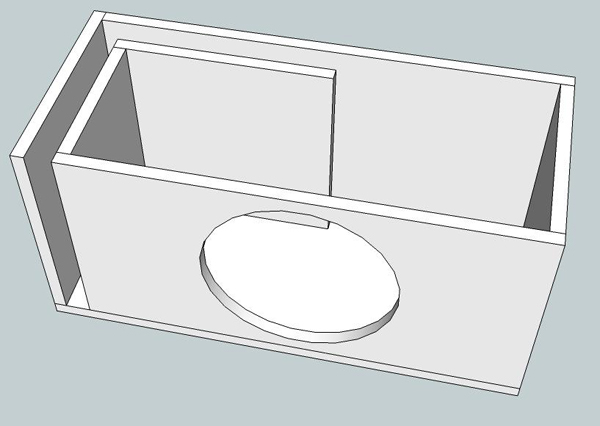

Silver Member Username: BoomtankRochester, NY USA Post Number: 672 Registered: Oct-06 | Cut Sheet Top 12.5 x 28in Bottom 12.5 x 28in Left 12.5 x 12.5in Back 27.25 x 12.5in Right 11 x 12.5in Front 25.75 x 12.5in Port 1 8.75 x 12.5in Port 2 12.75 x 12.5in 1.75 cu^ft tuned to 32 hz  |
|
Silver Member Username: Wackzirth88K-town, Il U.S. Post Number: 180 Registered: May-09 | jus sent u a email, but this works. thanks man |
|
Silver Member Username: KingtutusLincoln, Nebraska U.s.a Post Number: 613 Registered: Dec-07 | u wont need to wire that sub to 4 ohm just put ur gain at 1/2 to 3/4 of the way up. i had a 18" sonance v2 on a 1000d and i set mine at 80% and it loved it. and that was straight out of the box. |
|
Gold Member Username: SomedonniedudeIllinois Braaap MX Post Number: 2806 Registered: May-07 | ^dude cmon man you know better that to tell people to set their gains like that |
|
Silver Member Username: Wackzirth88K-town, Il U.S. Post Number: 183 Registered: May-09 | i know better than to set my gains like that |
|
Silver Member Username: KingtutusLincoln, Nebraska U.s.a Post Number: 614 Registered: Dec-07 | that is wat steve from rd audio told me to set it at. so fu(k u then if u dont like wat the owner told me to do. |
|
Silver Member Username: Wackzirth88K-town, Il U.S. Post Number: 184 Registered: May-09 | word is it the new rd 1000.1 or the older one that u have? |
|
Silver Member Username: KingtutusLincoln, Nebraska U.s.a Post Number: 615 Registered: Dec-07 | old one. that is y i said to set it lower then wat i had mine set at |
|
Silver Member Username: CozceSt. Louis ILLside, Pronounced: ... U.S.A. Post Number: 856 Registered: Mar-08 | lol |
|
Gold Member Username: Snowball123West Allis, WI Post Number: 3288 Registered: Oct-07 | KT, you're f*ckin retarded. |
|
Gold Member Username: SomedonniedudeIllinois Braaap MX Post Number: 2811 Registered: May-07 | So if he had a 9v line driver would you still tell him to set it like that? i hope not... |
|
Silver Member Username: Kingandsons07TEAM NEBRASKA Lincoln,NE Post Number: 984 Registered: Aug-08 | OMG HAHA |
|
Silver Member Username: KingtutusLincoln, Nebraska U.s.a Post Number: 616 Registered: Dec-07 | fu(k this site and fu(k all of u |
|
Gold Member Username: SomedonniedudeIllinois Braaap MX Post Number: 2813 Registered: May-07 | oh stop it you love us  |
|
Gold Member Username: Drant19DUB-C, TX Post Number: 2135 Registered: Aug-07 | KT, your adorable.. |
|
Silver Member Username: Kingandsons07TEAM NEBRASKA Lincoln,NE Post Number: 986 Registered: Aug-08 |  |
