Couple builds, one wierd box I build...
|

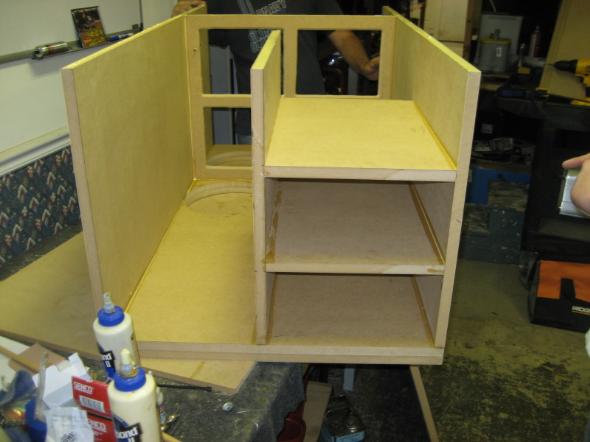

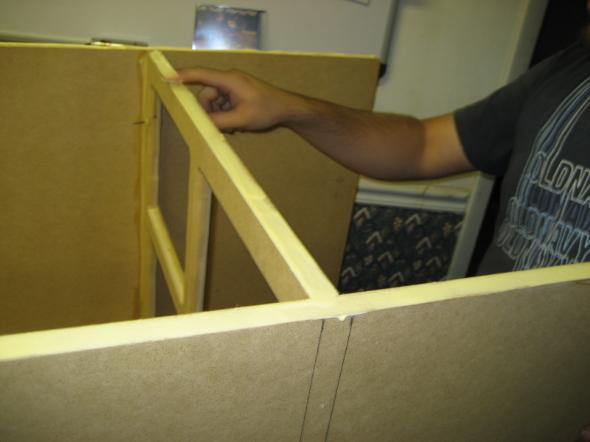

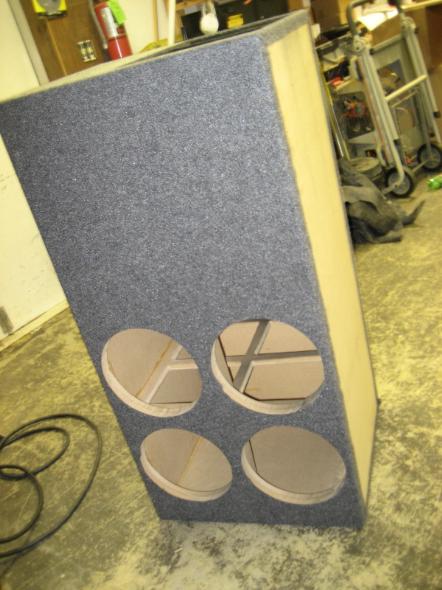

Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7543 Registered: Mar-04 | Well, had a few box orders this week at the shop. The first was a 4 DD512 box for a mid 90s ext chevy truck:     10cuft net, window braced, doubled baffled, 3 ports, subs forward, ports to drivers side wall. Customer wanted a box that could be used for SPL and daily. Like this he can plug a port and tune to 37hz, leave all of them open and tune to 46hz.    |
|

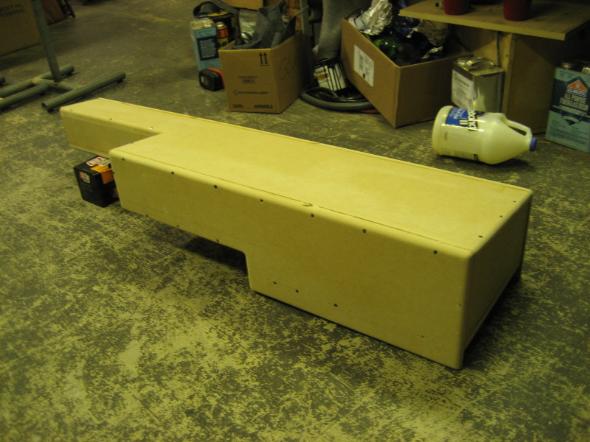

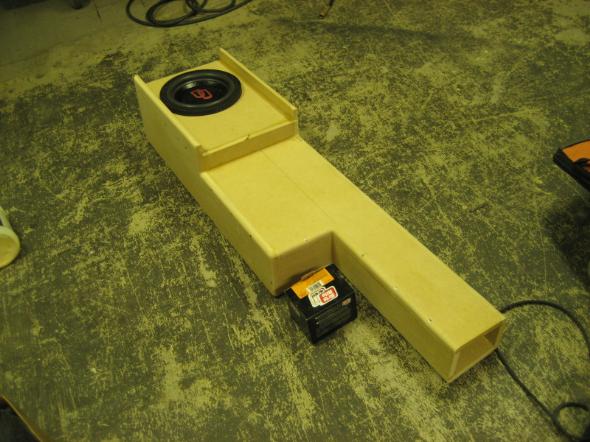

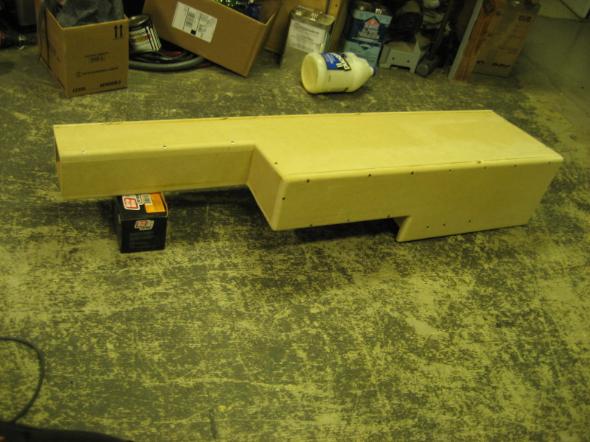

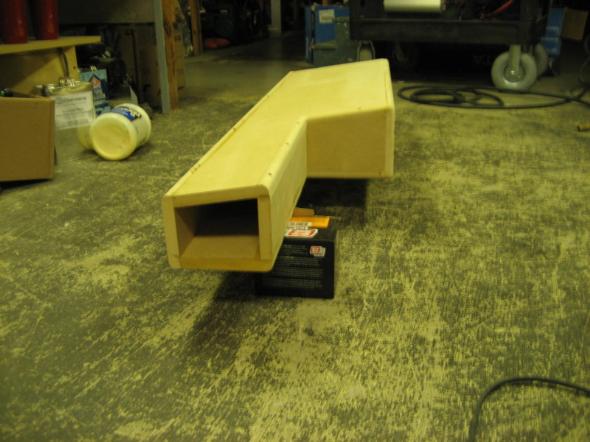

Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7544 Registered: Mar-04 | The second box is a kinda strange one. Its for 1 10" in '00+ ext cab chevy/gmc trucks. Downfire w/ port to passenger side wall. Looks odd, but the last times I built it, it out performed pairs of sealed 12's in the same trucks. Leaves plenty of room under the port on the passenger side to mount amp/batt.      This one is for a DD2510, I have another copy of this box cut out and ready to shoot together for a DD510 (different mount hole) for another customer. Kinda a weird box to carpet  |
|
Platinum Member Username: InsearchofbassYork, Pennsylvania Post Number: 11850 Registered: Jun-04 | haha as they say whatever works. Canaan I was wondering if we could talk about the wall we are planning to build. I want to do this right the first time. Do you have aol instant messenger? |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7545 Registered: Mar-04 | Hit me w/ an email Audible.Insanity@gmail.com |
|
Platinum Member Username: InsearchofbassYork, Pennsylvania Post Number: 11851 Registered: Jun-04 | ok will do. |
|
Platinum Member Username: InsearchofbassYork, Pennsylvania Post Number: 11852 Registered: Jun-04 | email sent |
|
Gold Member Username: Dustin3D&L Audio Tech.Dustin Post Number: 4980 Registered: Oct-05 | looks great canaan! |
|
Silver Member Username: WickedbassNashville, Tn Post Number: 730 Registered: Jan-08 | Lookin' good man! |
|
Diamond Member Username: WingmanaliveWww.stainles... .ecrater.com Post Number: 20814 Registered: Jun-06 | Not weird enough. Try again. |
|
Bronze Member Username: Cdb004I got 6 12s 153.1 daily Post Number: 91 Registered: Oct-08 | That 2510 in that box is nasty just got done listening to it very surprising. |
|
New member Username: CaptainobviousPost Number: 4 Registered: Jul-09 |

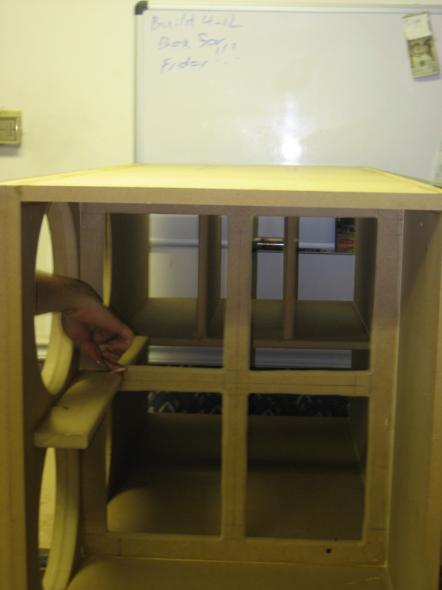

The bracing in this picture looks like a window pane. |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 3612 Registered: May-07 | sweetness |
|

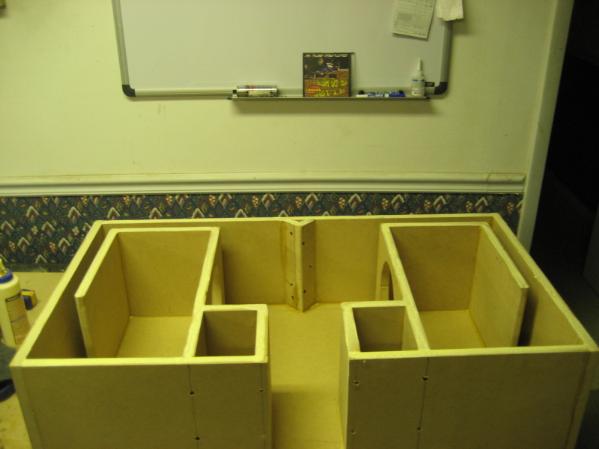

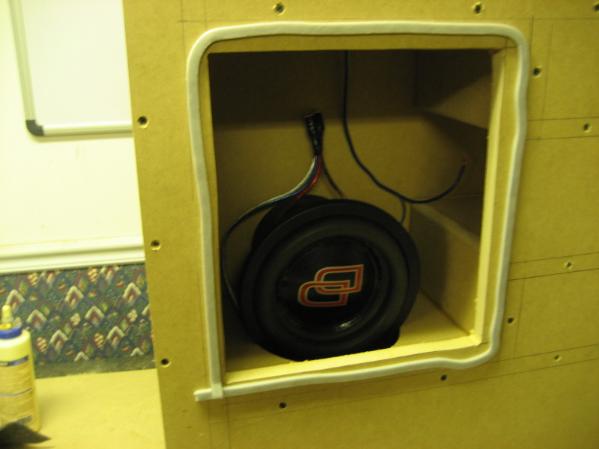

Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7549 Registered: Mar-04 | Here is another I built today. 6th order series tuned for 2 DD1508s4, its sick on ~600-700w from a DDm1a.      |
|
Diamond Member Username: WingmanaliveWww.stainles... .ecrater.com Post Number: 20824 Registered: Jun-06 | Where does the flucking mouse go lol?  |
|
Bronze Member Username: Cdb004I got 6 12s 153.1 daily Post Number: 92 Registered: Oct-08 | Cant wait to here this tomorrow. |
|
Platinum Member Username: Rovin1 15 = 152.5 DBs ...Trinidad & T... Post Number: 15266 Registered: Jul-05 | some interesting shapes indeed good work man .....  |
|
Gold Member Username: SomedonniedudeIllinois Braaap MX Post Number: 2732 Registered: May-07 | Looks sick! |
|
Gold Member Username: Tatonka-[Team Audible Insanity]- Post Number: 3035 Registered: Mar-07 | Here is a vid of the two 8s in my....daily driver The camera didn't capture the flex too well. Also this was on about ~500rms. It is pretty loud and gets low. |
|
Platinum Member Username: InsearchofbassYork, Pennsylvania Post Number: 11855 Registered: Jun-04 | Those 8's are workin it. |
