Like

A little something different



Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7322
Registered: Mar-04

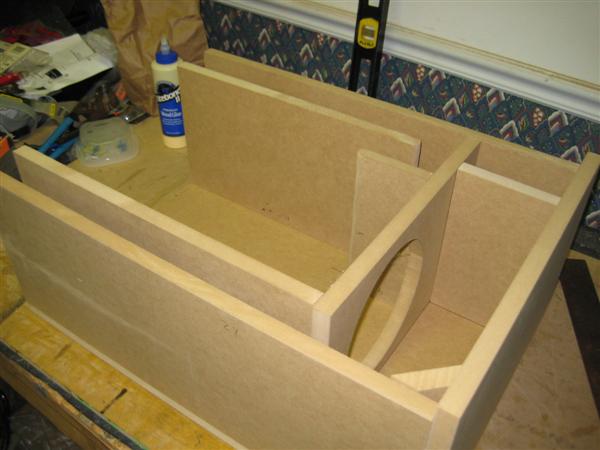

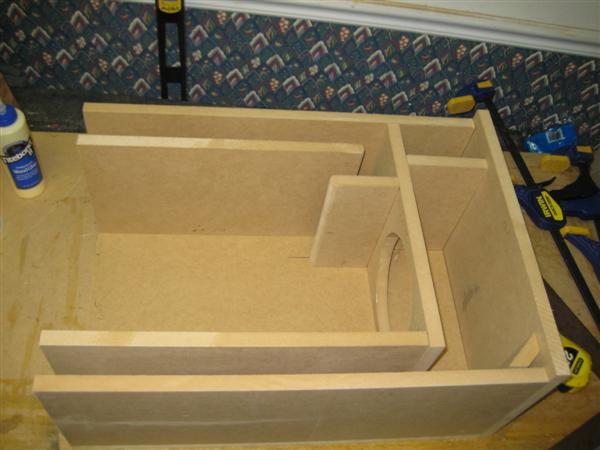

I wanted to try my hand at a little something kinda complex.

This is just the dry fit.
What you guys think?

Upload
Upload


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1710
Registered: Mar-07
trying to comprehend this is hurting my brain....... lol deff looks complicated what order is that?


Diamond Member
Username: Wingmanalive

Www.stainles... .ecrater.com

Post Number: 20025
Registered: Jun-06
How many ports is that thing gonna have? I see two?


Silver Member
Username: Wickedbass

Nashville, Tn

Post Number: 434
Registered: Jan-08
Interesting...


Silver Member
Username: Turnmat

Racine, Wi

Post Number: 920
Registered: Feb-07
Interesting. Looks good though


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7323
Registered: Mar-04
6th order for a DD1508
Still have 2 wedges to cut, forgot about them the first time around.


Gold Member
Username: Redliner

Wilmington, Ma

Post Number: 5009
Registered: Jun-05
looks nice experementing = awesome


Gold Member
Username: Jakeyplaysbass

St. Louis, MO / ASU

Post Number: 3567
Registered: Jul-05
Looks good Canaan but im sure its way bigger than if it was a normal ported. It would personally be hard for me to sacrifice the space to make something different.

Can we get the specs?


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7325
Registered: Mar-04
Box is 1cuft @ 38hz rear chamber, 0.3cuft @ 73hz front.

I stuck it in my roommates Mazda hatch today and DAMIT. It was running on a DDM1a @ 4ohm so it saw ~300-400wrms. The lows are insane for 1 8" sub, hammers all the way down to sub-30hz. Liked it so much, I'm installing it w/ a Powerbass asa600.2 tomorrow.

I'll get some Vids and TL #'s then.

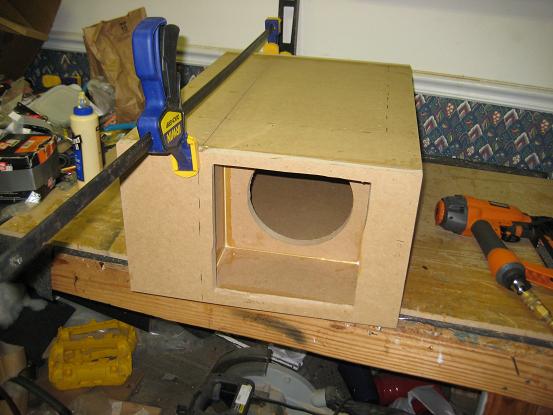

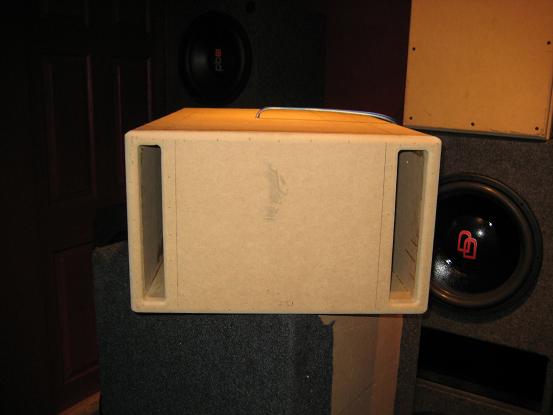

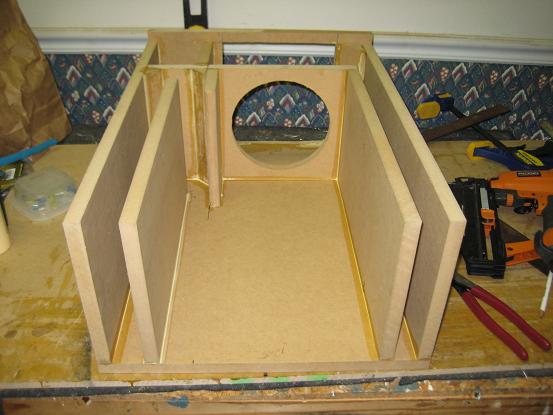

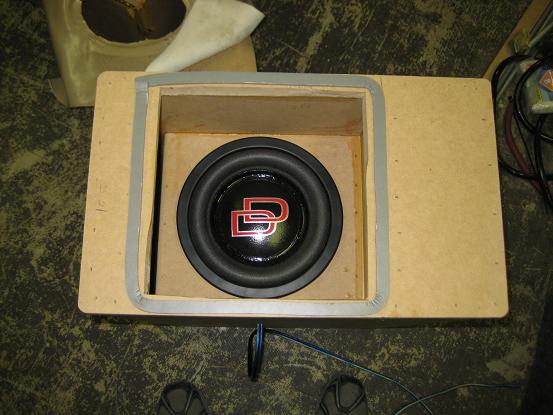

For now, here are a few build pics:


Upload
Upload
Upload
Upload


Silver Member
Username: M0nstar

Toledo, OH U.S.

Post Number: 185
Registered: Dec-08
oh my..

i want one.


Gold Member
Username: Tatonka

-[Team Audible Insanity]-

Post Number: 2762
Registered: Mar-07
Works almost as good as a suncoast box :-)


Gold Member
Username: Van_man

Boston South, MA

Post Number: 4686
Registered: Mar-06
Wicked...


Silver Member
Username: Turnmat

Racine, Wi

Post Number: 931
Registered: Feb-07
That looks sweet!!! Is that going to be for daily or comps?


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7326
Registered: Mar-04
Daily.
Built to have very good range.

Oh...and port noise ftmfw


Gold Member
Username: Hittin1

TEAM REVOLUTIONLake Charles...

Post Number: 2728
Registered: May-07
looking great as always, bro... ever get a new windshield?


Gold Member
Username: Jtown

Texas

Post Number: 3683
Registered: Mar-07
wanna build me one?


Bronze Member
Username: Cdb004

I got 6 12s

Post Number: 43
Registered: Oct-08
This thing sounds amazing not only decently loud but smooooth. He already has to build 2 more, never know might see something like it in the avalanche.


Gold Member
Username: Mendonmafia

USA

Post Number: 1748
Registered: Aug-06
SICK!!! wish i had the room to try a bandpass. especially a 6th order


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7327
Registered: Mar-04
Yea...I need test my 3515's and see what I can come up with. The 3500's completely slipped my mind...so has the avalanche.

May try a 4th or 6th w/ a pair, gotta see how they plot.

This new 6th order design is head and shoulders above the first one.


Gold Member
Username: Tatonka

-[Team Audible Insanity]-

Post Number: 2764
Registered: Mar-07
Lookin good as always.
Is it in the sound room? I wanna hear it.

btw: looks like you had some more problems with your jig-saw lol.


Bronze Member
Username: Cdb004

I got 6 12s

Post Number: 44
Registered: Oct-08
well if the new one sounds that much better then we all just might be running 8s lol


Silver Member
Username: Ducka

Houghton and/or Macomb, MI United States

Post Number: 931
Registered: Jan-08
That is absolutely sick! The boy is good.


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 7331
Registered: Mar-04

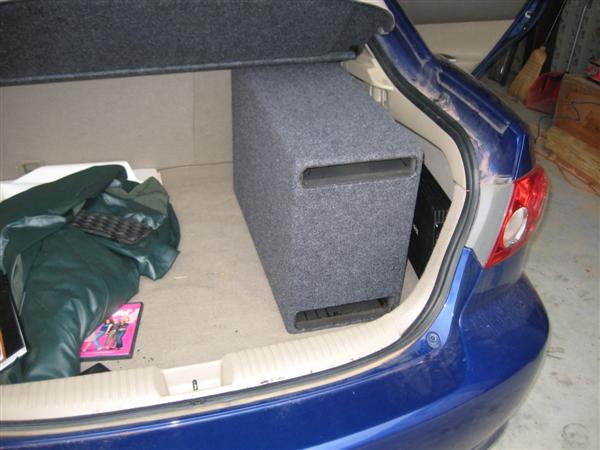

Got the 8" up and running today.
It sounds great and has very good range.

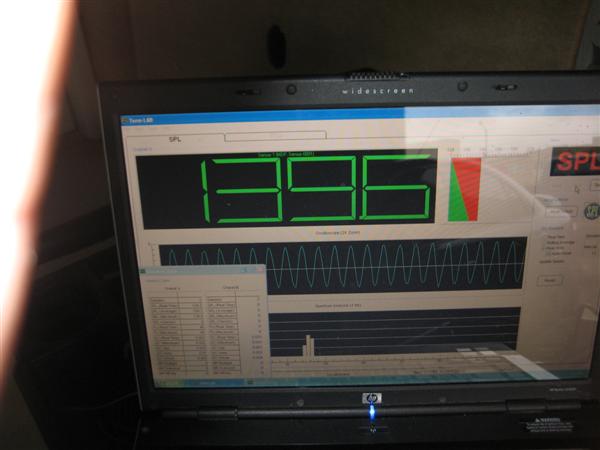

Peaks at 45hz in vehicle and can get LOW. Didn't really have any time to test properly, w/ a little more testing 140+ is more than doable.

Upload
Upload

The full install was:
Pioneer DEH4100ub
D1508s4
Powerbass ASA600.2 w/ 8ga

Leaves plenty of room in the trunk.


Gold Member
Username: Surferdude9371

Get loud or go home....

Post Number: 1721
Registered: Mar-07
impressive work as usual bud
