Any thing i should do different on this...



Bronze Member
Username: •cam•

Post Number: 15
Registered: Nov-06
So I figured out what i'm gonna get and measured the spot behind the back seat in my little tracker.
-1 Assassin 12
-The PPI AX606.2
-Panasonic MXE CQ-C7203U from Crutchfield for the head unit http://www.crutchfield.com/cgi-bin/ProdView.asp?g=300&tab=features _and_specs&i=133C7203
-Maybe these MB quarts
http://www.cardomain.com/item/MBQDKF116

Now onto the enclosure.
Here's the WinISD file:
http://www.filefactory.com/file/4fe814/

If you don't have WinISD the box will be 2.8cuft without the port or bracing or anything. I just need to figure out how much the bracing and the port will take away from the volume. When they say 2.0 cu ft on the AA site do they mean 2 cu ft without the sub in there or 2.0 cu ft + whatever the sub takes up? I guessed it would take up .8 cu ft but this is my first box and my first install so i have no idea. Anyway could you check that out n let me know if I screwed up.
heres a picture of it in winisd
imageshack .us/img122/8131/winisdboxel4.png


Bronze Member
Username: •cam•

Post Number: 16
Registered: Nov-06
bump


Gold Member
Username: Logan__tille

HD3, Www.Audioque... United States

Post Number: 2521
Registered: Feb-06
Is your tracker a 4 door?


Gold Member
Username: Adddisorder

West palm, Florida

Post Number: 1886
Registered: Jan-06
get a dif. HU probly a pioneer

and you using that PPI amp for sub or for the MBs


Bronze Member
Username: •cam•

Post Number: 17
Registered: Nov-06
nah two. its a '96 soft top. pics are comin. im gonna cut a hole in the middle of the back seat for the sub. amp is for both its 6 channel
http://www.usedvictoria.com/classified-ad/2150676&category=car-audio
yeah i'll look for another h/u but whats wrong with that one?


Gold Member
Username: Logan__tille

HD3, Www.Audioque... United States

Post Number: 2526
Registered: Feb-06
panasonics not that good...i would get this one...
http://www.woofersetc.com/index.cfm?fuseaction=product.display&Product_ID=3499


Bronze Member
Username: •cam•

Post Number: 18
Registered: Nov-06
heres some pics. http://profile.imageshack.us/user/camrennie/images/


Gold Member
Username: Adddisorder

West palm, Florida

Post Number: 1889
Registered: Jan-06
yup, ^^that one is nice though


Gold Member
Username: Logan__tille

HD3, Www.Audioque... United States

Post Number: 2527
Registered: Feb-06
I have a little tracker like that....but mines white.lol
Upload


Bronze Member
Username: •cam•

Post Number: 19
Registered: Nov-06
nice. yeah i dont have a license cuz im 14, but my dads got 10 acres so this guy he works with gave it to us for 50$. he's just gonna use it sometimes for camping. anyway im on a budget so i'll probably go with this hu.
http://www.crutchfield.com/cgi-bin/ProdView.asp?g=300&tab=features _and_specs&i=130DEHP380&cc=07


Bronze Member
Username: •cam•

Post Number: 20
Registered: Nov-06
but yeah how does the box look?


Gold Member
Username: Logan__tille

HD3, Www.Audioque... United States

Post Number: 2529
Registered: Feb-06

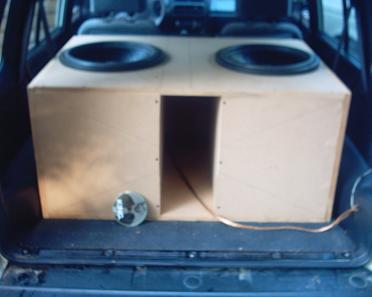

What about this?
http://www.woofersetc.com/index.cfm?fuseaction=product.display&Product_ID=3497

Upload

Thats whats in my tracker


Gold Member
Username: Logan__tille

HD3, Www.Audioque... United States

Post Number: 2530
Registered: Feb-06
Whats the box tuned too? You wont need to brace that box. The port will do enough bracing.


Bronze Member
Username: •cam•

Post Number: 21
Registered: Nov-06
check the pic that'll tell you most of it. im not exactly sure what im doin with this so thats why posted it. but to stop any spikes in the graph on winisd i tuned it to 20hz.


Bronze Member
Username: •cam•

Post Number: 22
Registered: Nov-06
how will the port brace it? im using a circular port.


Bronze Member
Username: •cam•

Post Number: 23
Registered: Nov-06
o sh_t the ports gotta be 1m to stop it from whistlin on this box. what a b_tch.


Bronze Member
Username: •cam•

Post Number: 24
Registered: Nov-06
anyone know the displacement of an assassin 12. i checked the site but i couldnt find it.


Gold Member
Username: Adddisorder

West palm, Florida

Post Number: 1891
Registered: Jan-06
its like .2 ish

its pointless to tune that low IMO it would be easyer to just seal it up.

and that last link logan posted is a good buy. but that one you posted isnt bad


Bronze Member
Username: •cam•

Post Number: 25
Registered: Nov-06
well if its .2 then ima guess the port will be .1. so thats 2.5 instead of 2 like i had so one sec.
Upload


Gold Member
Username: Adddisorder

West palm, Florida

Post Number: 1894
Registered: Jan-06
ok the ports displacement is more then .2

first figure out how big you want the sub to be in, id choose 2cubes plus port.

if your doing aero port i would get flared ends from partsexpress.com and use 4" pipe

then if you go that route instead of slot port determine the displacement of the aero port by 3.14r^2 i think.

subwoofertools.com and winisd are your friend


Silver Member
Username: Teamdeboy1971

OPTIDRIVE LN., TN Major Bass P...

Post Number: 136
Registered: Nov-06
hEY, What are the specs on the box in the picture? I am looking for a setup sorta like the one pictured! Tuned to 40hz or tuned to something that is spl worthy!!


Silver Member
Username: Andrew571

Stillwater/Edmond, Oklahoma USA

Post Number: 230
Registered: Oct-05
LOL logan, i knew it was about time u post that pic again. what is that? 20th lol jk with ya mang


Bronze Member
Username: •cam•

Post Number: 27
Registered: Nov-06
alright well im just gonna put 1 slot port firing under the seat.
the port will be 40.75" wide and 3" tall and 10.81" deep.
