17 x 39 x 16.5
5.046cu.ft (before displacement)

3 ports:

28hz - 10 x 3.5 x 25
35hz - 10 x 4 x 16.5
40hz - 10 x 6 x 20.5

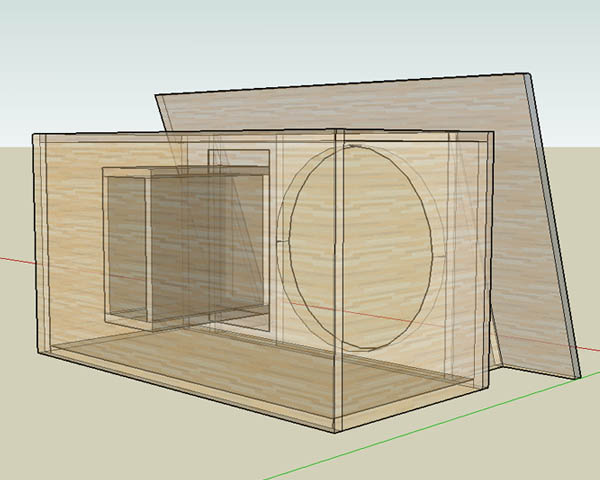

The front of the box that is grey will be carpeted and mounted behind the rear seats directly to the trunk. The purpose of it is to seal off the trunk from the cabin. Not only that but it will make for a lot cleaner looking install :-). Of course that part will be assembled in the trunk first then the box will slide to it where it will then be mounted. This is a rough sketch but you get the idea..

Upload
Upload
Upload
Upload


Gold Member
Username: Adddisorder

West palm, Florida

Post Number: 1305
Registered: Jan-06
looks cool, so i take it your looseing the back seat?

one thing to consider is after you put screws in and out of the same hole in mdf it doesnt really stay in there becasue it doesnt grip anything. so if your changing ports a lot the screws might not hold after a while so maybe think of a better way to keep it attached


Gold Member
Username: Frkkevin

Lake Worth, Texas US

Post Number: 1287
Registered: Nov-05
t-nuts and bolts for the ports :-) .. back seat is staying. this just mounts directly behind the back seat in the trunk.


Gold Member
Username: Redliner

Wilmington, Ma

Post Number: 2713
Registered: Jun-05
ya thats what t nuts and bolts are the best for


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 1680
Registered: Jan-06
Very nice! :-)


Gold Member
Username: Frkkevin

Lake Worth, Texas US

Post Number: 1289
Registered: Nov-05
Hopefully it gives the same performance if not better than my current box


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 3527
Registered: Mar-04
looks great kevin!


Silver Member
Username: Wingmanalive

Pine hill, Nj US

Post Number: 575
Registered: Jun-06
That box design looks....Upload


Gold Member
Username: Matt12490

The biggity biggity BAY, California USA

Post Number: 1382
Registered: May-05
G@Y?


Gold Member
Username: Extrmndor3

Chicago, Ill Us

Post Number: 2161
Registered: Feb-06
hey kevin wat do you use to make those designs???


Gold Member
Username: Frkkevin

Lake Worth, Texas US

Post Number: 1290
Registered: Nov-05
google sketchup


Gold Member
Username: Extrmndor3

Chicago, Ill Us

Post Number: 2165
Registered: Feb-06
thanks man


Gold Member
Username: Frkkevin

Lake Worth, Texas US

Post Number: 1291
Registered: Nov-05
i use bass box pro 6 for the actual box and then transfer my plan to sketchup


Bronze Member
Username: Kai2780

Post Number: 14
Registered: Oct-06
so, you insert the t-nuts into the baffle and then attach using screws through pre-drilled holes in the box. is this coorect?
will you be rounding the edges of the baffle?


Gold Member
Username: James1115

Ct

Post Number: 6963
Registered: Dec-04
look's sweet, that's a really good idea:-)


Gold Member
Username: Frkkevin

Lake Worth, Texas US

Post Number: 1293
Registered: Nov-05
yes .. and no .. the only edges that will be rounded is the port edges


Gold Member
Username: James1115

Ct

Post Number: 6965
Registered: Dec-04
smart! best way to avoid port noise.


Gold Member
Username: Bestmankind

WASSUPUSA

Post Number: 6312
Registered: Oct-05
take some sponge out of your backseat so the bass will enter the cabin better with the seat up.

nice design btw. looks like its going to take some time to build. have fun. too much work for a lazy azz like me though. lol.


Gold Member
Username: Safe_cracker

Chicago, IL US

Post Number: 1683
Registered: Jan-06
Hey how about "donating" me a copy of Bass Box Pro 6 ? Let me know, I can PP some "Donation Funds" to ya, lol. Polo.. :-O
