One last DD9515 question



Silver Member
Username: Sx3

Rockford, Illinois USA

Post Number: 277
Registered: Mar-05
Couple more questions actually lol. Whats the driver displacement of a 9515 and what is its Xmax?


Gold Member
Username: Basshead86

Google is your Friend, FL

Post Number: 4253
Registered: Aug-05
not sure. they have a 75mm suspension. but after top plate and bottom plate it is prob closer to 30-40mm.

not sure. Email DD and they will tell you exactly.:-)


Silver Member
Username: Sx3

Rockford, Illinois USA

Post Number: 278
Registered: Mar-05
I just need it for this box building web site for some reason so does it really matter. Can I just use like 35mm for the Xmax? Also did you know what the displacement was? If not can you just give me an estimate lol.


Gold Member
Username: Basshead86

Google is your Friend, FL

Post Number: 4255
Registered: Aug-05
i dunno dude. lol

try like .5 or something. haha


Silver Member
Username: Sx3

Rockford, Illinois USA

Post Number: 281
Registered: Mar-05
haha aright I guess my guess is as good as yours


Silver Member
Username: Sx3

Rockford, Illinois USA

Post Number: 283
Registered: Mar-05

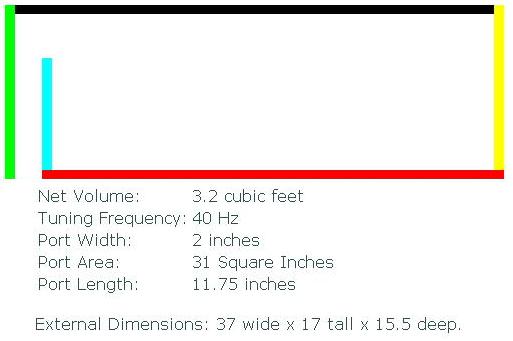

Does this look good for a box? Any suggestions?Upload


Silver Member
Username: Sx3

Rockford, Illinois USA

Post Number: 285
Registered: Mar-05
n/m Im lookin more at somethin like this.

Net Volume: 4 cubic feet
Tuning Frequency: 40 Hz
Port Width: 2 inches
Port Area: 31 Square Inches
Port Length: 8.5 inches

External Dimensions: 37 wide x 17 tall x 15.5 deep.

DD recomends more port area and length http://www.ddaudio.com/dd/caraudio/enclosureInfo/boxSize_hiEff.asp Does that matter?


Silver Member
Username: Sx3

Rockford, Illinois USA

Post Number: 286
Registered: Mar-05
?


Gold Member
Username: Basshead86

Google is your Friend, FL

Post Number: 4266
Registered: Aug-05
i would go with 4 cubes net.
16 sq. inches of port area per cubic foot.
and tune to say 35.:-)


Silver Member
Username: Sx3

Rockford, Illinois USA

Post Number: 287
Registered: Mar-05
why do i only have 31 square inches when i have a 4ft^3 box. the information i gave about the box was from a dimention calculator that said it was tuned to that frequency. what am i doing wrong?


Silver Member
Username: Zacdavis

Beloit, Wi

Post Number: 460
Registered: Dec-03
5 cubic ft, 90 square inches of port 16" long,
trust me :-)


Gold Member
Username: Jakeyplaysbass

St. Louis, MO

Post Number: 1358
Registered: Jul-05
my friends is 4.5cuft 80 inches of port at 38hz and it kills. if you have the room go huge.


Silver Member
Username: Zacdavis

Beloit, Wi

Post Number: 465
Registered: Dec-03
:-)
