How would i wire this?
|
New member Username: Aaron55Post Number: 7 Registered: Jun-06 | amp specs 125 W x 2 @ 4 Ohms RMS 250 W x 2 @ 2 Ohms RMS 500 W x 1 @ 4 Ohms bridged RMS sub specs(I have 2 subs) Power Handling, RMS: 250 Watts Power Handling, Peak: 1000 Watts Sensitivity: 91dB Frequency Response: 25Hz - 400Hz Impedance: 2 or 8 Ohms |
|
Gold Member Username: Thomas_gNM Post Number: 1347 Registered: Oct-05 | Wutz ur sub ohms?? SVC,DVC? |
|
Gold Member Username: JuliobSanto DomingoDominican Re... Post Number: 1123 Registered: Dec-05 | based on specs, i think that sub is infinity, if the sub is dual 4 ohm, you can only wire it parallel to a channel, you're gonna power it properly. |
|
New member Username: Aaron55Post Number: 8 Registered: Jun-06 | the sub is dvc |
|
Gold Member Username: RovinTrinidad & T... Post Number: 8372 Registered: Jul-05 | http://www.the12volt.com/caraudio/woofer_configurations.asp  |
|

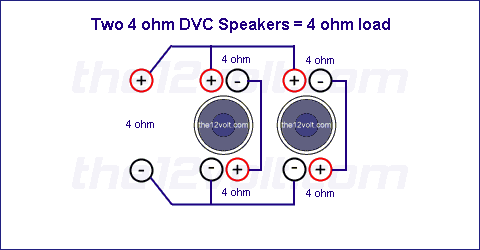

New member Username: Aaron55Post Number: 10 Registered: Jun-06 | does this diagram mean that the amp has to be bridged? does anyone know |
|
Silver Member Username: GangstafertJacksonville, Florida USA Post Number: 248 Registered: May-06 | yes, wire them like it says above then you should be giving your subs their rms. |
|
Gold Member Username: Dustin3Tigard, Or U.S. Post Number: 2069 Registered: Oct-05 | the problem is that you say you have 2 subs, and each one is 2 ohms, menaing you can only wire to a 2ohm load, where the amp does 250. if you had DVC 3 ohm subs you could bridge it and get 500 total watts. correct me if i'm wrong ,lol its 1:00 here |
|
Gold Member Username: Dustin3Tigard, Or U.S. Post Number: 2070 Registered: Oct-05 | DVC 4 ohm subs**** |
|
Gold Member Username: Dustin3Tigard, Or U.S. Post Number: 2071 Registered: Oct-05 | because you cant wire to each channel because its a DVC 2 ohm sub that can only wire to 1 or 4 ohms... |
|
Silver Member Username: AstrosafariDelhi, Ontario Canada Post Number: 461 Registered: Aug-05 | take the second sub off that chart, and its wired @ 4 ohms with 1 sub? |
|
Gold Member Username: TjmutlowPost Number: 2561 Registered: Sep-05 | there is no way to wire 1 dual 4 ohm sub to 4 ohms, |
|
Gold Member Username: Dustin3Tigard, Or U.S. Post Number: 2079 Registered: Oct-05 | and the chart that rovin showed is only if you had the DVC 4 ohm subs and bridged it to 4 ohm |
