ZX750.1 & (2)CVR 12" Wire ??



Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 298
Registered: Jan-06
My Brother Finally received his (2) cvr 12" DVC 2 ohm
And zx750.1

And we wired them @ this amplifier But the sound is Crapy . he had kenwood sub's and the sound is alot better .

what is the wrong with this setup .

he used a bad RCA and wires . Maybe that's the problem .

maybe the Ground (earth) wire .

maybe the battary . its standerd 50A .

what's the possible problems .

He said my kenwood is better than your crapy kicker .. What should i Do .Upload


Silver Member
Username: J_baby15

Kentucky

Post Number: 374
Registered: Feb-06
are you sure u wired them to 2ohm? did you adjust the gains and everything right? What kind of box?


Silver Member
Username: Reef

Post Number: 360
Registered: Oct-05
hey whats up night mirage, i had the same problem yesterday you cant go of the inter net wireing diagram its wrong. if he has the manuals for the CVRs then use that. after i wired them right damn there so damn loud lol but right now you guys have it wire down to .5 ohm like me i hooked it up the same way as the pic.


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 3022
Registered: Mar-04
NO...

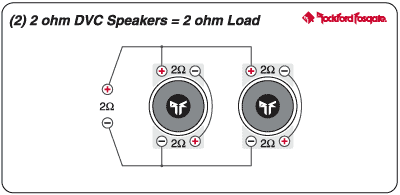

if you wire the subs like in the pic above, you will infact give the amp a 2ohm nominal load.

but w/ kicker subs you have to make sure you wire BOTH VOICE COILS.

make sure that on both subs the + terminal w/ the black dot is wired to the amp...and the - terminal w/ NO dot is wire to the amp aswell...then make a jumper wire from the - dotted terminal to the + no-dot terminal on each sub. (like in the pic)

this will give your amp a 2ohm load.


Silver Member
Username: Reef

Post Number: 361
Registered: Oct-05
acutally thats wrong marshall i had it wired like that. night mirage just go look in the kicker manual that came with the CVRs trust me


Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 299
Registered: Jan-06
thanks all ..

Reef in the manual cvr there is no dvc 2 ohm

just 4ohm load @ 1 ohm
or 2ohm load @ 4 ohm

my Brother will kill me if they will not woke fine ..

i make him sell his kenwood ..

i wired them as the pic , But very Crapy sound , As Sony Xpload , maybe worse .


Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 300
Registered: Jan-06
Jordan Singleton its Not Box ..

Just peace of wood .. @ his Car , But i don't think that's the Problem


Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 301
Registered: Jan-06
and there is another Problem ..

if i turn the Value up , The Amplifier turn off and back on directly .


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 3025
Registered: Mar-04
hold on...

you are running those CVR's free air??? (no box)
if so, that is your problem!!!


Also, are you saying that you have DVC 4ohm subs? if so, you will not be able to give the amp a 2ohm load. (and if you wire the subs like the pic you posted above, the amp is seeing 4ohms)




Devin...i am right, trust me...i have messed w/ CVR's way too many times :-)


Silver Member
Username: Reef

Post Number: 362
Registered: Oct-05
ok here this is how i wired them its right trust me i did it yestrday. click on this and look at my pics it will show how i wired them http://www.myspace.com/24430612


Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 303
Registered: Jan-06
marshall white
I did n't say they re dvc 4 ohm

they 're (2 sub's) 2ohm dvc ..

and he was running his Kenwood just like this and the sound was Good .

or he sould put them in Ported Box ..


Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 304
Registered: Jan-06

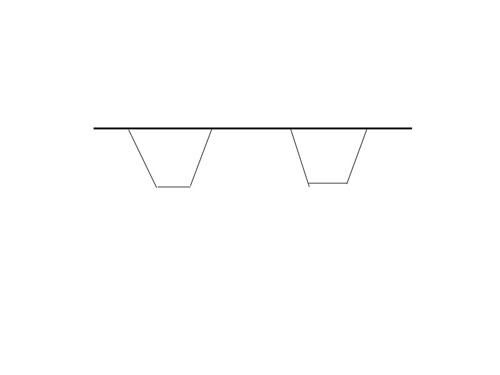

ITS LIKR THIS .

its okay or he should put them in Box .Upload


Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 305
Registered: Jan-06
Reef i could n't see your Photos Can u upload them here ..

you re running your cvr's @ Box ?


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 3026
Registered: Mar-04
CRV's are not built to run IB (infinite baffle)

build or buy a box for the subs.
1 to 1.25cuft per sub will be good.


Silver Member
Username: Lexuscoop

Pheonix, Arizona USA

Post Number: 916
Registered: May-06
Reef, that pic is hard to determin LOL


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 3028
Registered: Mar-04
that would be 28 to 35 liters.


Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 307
Registered: Jan-06
is that possible the problem is the Box .

But if its the prob , The sound will be fine . Not that Crapy sound .

There is no Bass At ALL .

The sub's Just Moving ..

and i want the Full Dimentions for ported box (2)cvr 12" . By CM . C-Meter .. Plz


Silver Member
Username: Night_mirage

AmmanJordan

Post Number: 308
Registered: Jan-06
Devin Reef

Plz i want to know how did you wire your Sub's ..?


Gold Member
Username: Rovin

Trinidad & T...

Post Number: 8174
Registered: Jul-05
running subs free air & ur dissapointed - well duh !lol

put them in a ported box asap !...


Silver Member
Username: Stnorris

Eldridge, IA US

Post Number: 405
Registered: Apr-06
https://www.ecoustics.com/electronics/forum/car-audio/239901.html

night mirage and marshall, you are both wrong. you cant wire exactly like the picture on the first post. you have to get the manual and wire them like that. im the one who told devin how to wire them like the manual, because I had the same problem with my 2 DVC Cvrs.

this is how to do it.

red with white dot, connected to solid black
solid red, and black with white dot, go to the amp.

lol, and if you dont know for some reason, make sure the black goes to the negative, and red to the positive on the amp.


Gold Member
Username: Southernrebel

Monroe, Louisiana USA

Post Number: 3029
Registered: Mar-04

quote:

make sure that on both subs the + terminal w/ the black dot is wired to the amp...and the - terminal w/ NO dot is wire to the amp aswell...then make a jumper wire from the - dotted terminal to the + no-dot terminal on each sub.




Steven Norris,

this is what i posted above...it is the exact same thing you are saying, i just said 'black-dot' instead of 'white dot' and i reversed kinda reversed the wiring. But w/ two DVC 2ohm subs, you would still get a 2ohm load to the amp wiring it this way.
