Building materials for built-in trunk enclosure (ideas).
|
Silver Member Username: Safe_crackerChicago, IL US Post Number: 576 Registered: Jan-06 | I am getting ready to build my built-in trunk enclosure but still haven't decided on materials yet. Should I go with a traditional mdf or can I use a plywood of some sort? I will be internally bracing it and using a good amount od adhesives with aluminum angle drilled and screws done from the inside. Once done I i will resin/glass over any forseen weak spots or edges. This is going to house a SINGLE new XXX. Thanks in advance for any and all help given! Polo.. |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 244 Registered: Feb-06 | dude u got the new xxx man if you do wow for ur question mdf is better than plywood plywood can flex more easily and mdf is porouse so its better. if i was you i made an enclousure of fiberglass with the xxx upside down to show the magnets check this out http://web.njit.edu/~cas1383/proj/main/ |
|
Silver Member Username: Sw9152Michigan Post Number: 268 Registered: Feb-06 | i would go mdf for sure. |
|
Silver Member Username: Safe_crackerChicago, IL US Post Number: 580 Registered: Jan-06 | I heard that plywood is stronger, less dense and the reason most use it is because it is cheaper than plywood/Birch. If able to I would prefer a lighter material because the sub itself is gonna be 76lbs byt itself, lol. Polo..  |
|
Silver Member Username: Extrmndor3Chicago, Ill Us Post Number: 250 Registered: Feb-06 | man use mdf and finish it with fiberglass did u saw the link that gave you the dude jump on the fiberglass |
|
Gold Member Username: Sploosh56Ohio Post Number: 1228 Registered: May-04 | like rob said use 3/4" mdf and fiberglass. If you have a spare tire well jsut fiber glass the inside of that with about 7 layers. You will want to lay down some sound deadening material over the walls of it before you fiberglass though or you'll get rattles. Then jsut lay a piece of mdf over it and seal it. |
|

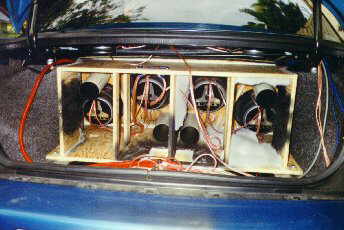

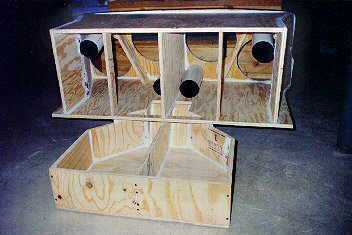

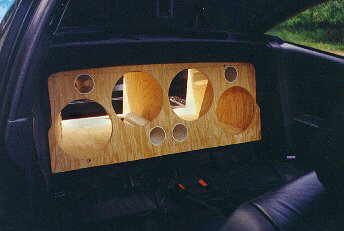

Silver Member Username: Safe_crackerChicago, IL US Post Number: 581 Registered: Jan-06 | You guys cannot be serious! This is a sub that is approx 13.5" DEEP, that means it will not fit in a spare tire well, not even close. Also this is going to be 5cf and ported through the back deck. I will be using a small amount of glass/resin on the inside but a custom FG enclosure is out of the question. What I am trying to do is to close off the trunk area te get rid of extra space to boost spl a little and to cut down on trunk lid flex. I have it all planned out but have mixed reviews on materials. I know MDF is always used becasue it is cheap, but there isn't a preset budget here. Here is a picture similar to what I am trying to accomplish. Polo.      |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 2562 Registered: Mar-04 | I would use 3/4" MDF and double up everything...prolly need 2 full sheets. Lots of wood glue and some threaded rod for sure. |
|
Gold Member Username: RovinTrinidad & T... Post Number: 6894 Registered: Jul-05 | i would def use 1 INCH MDF & some internal box bracing....... |
|
Silver Member Username: Safe_crackerChicago, IL US Post Number: 583 Registered: Jan-06 | Ya, threaded rod to hold it all in, now would the rods resonate(audibly), that is the only thing I worry about using any type of metal in cabinets. Polo.. |
|
Gold Member Username: SouthernrebelMonroe, Louisiana USA Post Number: 2563 Registered: Mar-04 | i have never noticed the rod resonating in mine or anyother installs. (use 1/2" threaded rod) make sure you put on nut and washer on both the inside and outside of the box. (4 nuts and 4 washers per rod) Lock-nut > washer > MDF > washer > Lock-nut |
|
Bronze Member Username: TonPost Number: 25 Registered: Jul-05 | dude, do what the other guys said. go with mdf, it's better than plywood. |
|
Gold Member Username: Sploosh56Ohio Post Number: 1230 Registered: May-04 | didn't see that you were using a xxx lol my bad. make sure you use mdf |
|
Silver Member Username: Langless28Post Number: 384 Registered: Dec-04 | on those pictures, what is the thing under the box, it looks connected, is it for the amps? |
|
Silver Member Username: LewassBoomfield Hills, MI USA Post Number: 438 Registered: Jan-06 | People don't use MDF because it's cheap. It's actually not that cheap.. Plywood is cheap.. MDF is the best acoustically while still providing the necessary strength.. |
