Like

DONT hook this up to your amp!



Silver Member
Username: B101

Queen City, NC USA

Post Number: 889
Registered: Sep-05
I wouldnt hook this up to most of you guys amps. =D

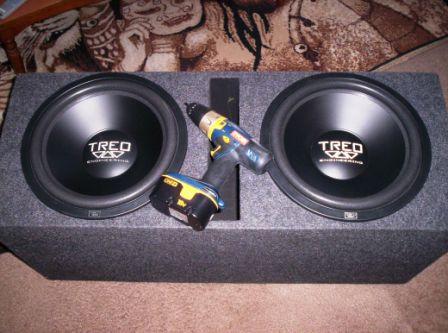

I got dual 2ohm subs now all already wired!! Exchange my old ones in, now I got new ones. I love warranties. Yeah baby....

Upload
Upload

More?
https://www.ecoustics.com/electronics/forum/system-showcase/190665.html


Bronze Member
Username: Safe_cracker

Chicago, IL US

Post Number: 83
Registered: Jan-06
What amp you got that is 1/2 ohm stable? Polo...


Gold Member
Username: James1115

Wilton, Ct

Post Number: 4833
Registered: Dec-04
yeah are you sure you have them wired right?


Silver Member
Username: B101

Queen City, NC USA

Post Number: 895
Registered: Sep-05
im positive i wired them correct. =D
box is tuned to 27hz also.


Silver Member
Username: Blainew

Post Number: 841
Registered: Nov-05

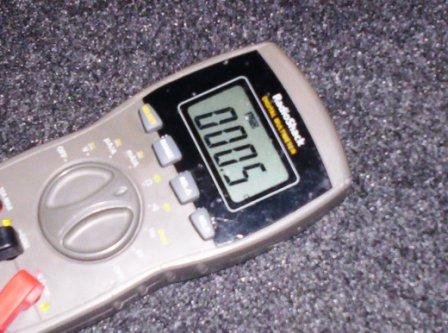

where did you get that ohm reader..and how much was it...and can that also tell how many watts the amp can play?


Silver Member
Username: Blainew

Post Number: 842
Registered: Nov-05
nevermind..radioshack...but does it tell watts?


Silver Member
Username: B101

Queen City, NC USA

Post Number: 900
Registered: Sep-05
no but you can calculate watts. lol
its a electricians best friend buddy. this is just my cheap one. lol


Bronze Member
Username: Safe_cracker

Chicago, IL US

Post Number: 84
Registered: Jan-06
Okkkkkk, so what ya trying to say, that you can rig a box for .5ohm? So what's your point, do you have an amp that will run it? Are you using multiple boxes orrrrrrr? Or are you showing that the coils aren't accurately constructed? Give us a hint because there is nothing you have in your systems list that will run that load..Polo. :-)


Silver Member
Username: 420pimp2

Post Number: 272
Registered: Jan-06
didn't someone say a while back that one of the old orion amps would handle that kinda load?


Gold Member
Username: Tjmutlow

Post Number: 1356
Registered: Sep-05
well, I do not think that unit is wrong, 2 dual subs will give you .5ohm load , it is ran parralel. each sub will load either 1ohm or 4ohm... and the old school orions handle .5ohm stereo load.


Gold Member
Username: James1115

Wilton, Ct

Post Number: 4848
Registered: Dec-04
yup .5 ohms stereo and 1 ohm mono. The soundstream reference series amps can handle the same load.


Bronze Member
Username: Lewass

Bloomfield Hills, MI USA

Post Number: 42
Registered: Jan-06
He can just use 2 1 ohm stable amps...


Silver Member
Username: Young_james

Canada

Post Number: 750
Registered: Sep-05
I would be much easier if we wait till he tell us,lol


Bronze Member
Username: Safe_cracker

Chicago, IL US

Post Number: 90
Registered: Jan-06
I am talking about his amp list in his profile, none of those will run a .5 ohm in any confg. I believe an Orion HCCA can run a .25 ohm load, VERY underated @4ohms, lol. :-O


Silver Member
Username: B101

Queen City, NC USA

Post Number: 918
Registered: Sep-05
polo, lol
im not using any of those amps!
however they are up for sale if someone wants them.
=D


Silver Member
Username: B101

Queen City, NC USA

Post Number: 919
Registered: Sep-05
polo the hint is about 3200 rms matched to an impedence of .5 ohm load!!!!
=D


Bronze Member
Username: Safe_cracker

Chicago, IL US

Post Number: 92
Registered: Jan-06
Hmmmmm, you gona pump 3200rms into two subs rated at 500rms each? Go figure..


Silver Member
Username: B101

Queen City, NC USA

Post Number: 926
Registered: Sep-05
yes, and im going to win alot of tropheies, certificates and gifts too.
Now go figure....
=D


Bronze Member
Username: Safe_cracker

Chicago, IL US

Post Number: 94
Registered: Jan-06
Righhhtt, those stamped basket subs really perform there little hearts out, lol. GoodLuck! Polo.. :-O


Silver Member
Username: N2audio

Lawrence, Ks USA

Post Number: 532
Registered: Mar-04
I would have suggested Lanzar Opti2000D Upload


Silver Member
Username: N2audio

Lawrence, Ks USA

Post Number: 533
Registered: Mar-04
"Righhhtt, those stamped basket subs really perform there little hearts out, lol. GoodLuck! Polo.."

Cheap stamped baskets means more money spent on parts that matter :-)


Silver Member
Username: B101

Queen City, NC USA

Post Number: 927
Registered: Sep-05
Optidriven, Polo doesnt know anything.. He is just being a chap! lol
He need to go back and read the site he tells people to read: http://www.bcae1.com/speakrat.htm


QUOTE"

Bottom Line:
No one can tell you if you will blow your speakers with a given amplifier. They may be able to tell you whether or not a pair of speakers will be able to handle a given amount of continuous RMS power. But... since they don't know your listening habits or your ability to hear (or even be concerned about) distortion, they (in my opinion) cannot actually tell you if a given amplifier (with you at the volume control) will blow your speakers.
"


Now im I still goin to blow my subs? OK
like Optidriven said "stamp baskets means more money spent on real parts the matter"

FYI the basket is powerder coated....



# Precision CNC-machined low-carbon steel motor structure
# Powerful and durable double-stacked strontium ferrite magnets with a protective rubber magnet boot
# Durable and attractive black oxide-treated motor structure
# High-flow large diameter pole vent
# High excursion motor structure and suspension design
# Wide three-layer UV-treated foam surround
# Resin-impregnated poly-cotton damper for increased cone control
# Integrated tinsel leads for increased reliability and enhanced sound quality at high excursion
# Mica-impregnated polypropylene cone and dustcap
# Cold-rolled stamped steel basket with rolled edges
# 3.0 inch high-temperature Aluminum voice coils


Silver Member
Username: B101

Queen City, NC USA

Post Number: 928
Registered: Sep-05
or does he think they wont do it?? << but who careS?
Treo will till you run 1K to each all day. And thats moderate..

Cause ive seen them with double what im about to give them! Playing all day every day!

They were even tested 4KW, for 2 hrs each day, guess what? they lasted 1 month!

Thats whats make a GOOD company, some people have alot to learn. =D


Platinum Member
Username: Glasswolf

Wisteria, Lane USA

Post Number: 10964
Registered: Dec-03
the only problem I see is that you're measuring DCR, not impedance. The DCR should be lower than the nominal impedance of the circuit.

I use a pair of dual 2 ohm coil subs myself, but I wired each sub with coils in series, and use a bridged amplifier on each sub at 4 ohms. I don't like running ultra low impedances on amplifiers.
It leaves very little in the way of head room, and increases heat and distortion, and decreases the SNR and damping.

The only real benefit you get is the added power and the cost of SQ.



Silver Member
Username: B101

Queen City, NC USA

Post Number: 932
Registered: Sep-05
yea its DC resistance. Im going to be runing @ .5ohms for competitions & daily! Im doin it for the benefit of the added power like you said. =D

Glasswolf Im not worried about the amp being able to handle it, cause its been tested & proven daily @ .5ohms without any major change in operating temperature. The amp also will be able to drop to .34ohm for burps at competitions..

If i set my gain low/boost and watch the hu, play with the eq, I think my SQ wont be bad at all!
Im just goin to have to be more responsible and attentive to the setup. It goin to be a STEET POUNDER!

=D


Bronze Member
Username: Lewass

Bloomfield Hills, MI USA

Post Number: 50
Registered: Jan-06
And in case you don't have this rule in place already:

NOBODY touches the volume but you! haha
