How should i wire my amps and subs



Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 78
Registered: Nov-05
Hi guys i was wondering how would i wire up my dvc 4 ohm alpine type S subwoofers.i currently have a hifonics brutus BX1500D(thanks chauncey). i want to hook it up the safest way as possible but with the most bang.I know the amp is way to powerful for those alpines so ill probly have to keep the gains down.


Silver Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 735
Registered: Oct-05
i would connect them in series-parallel to a 4ohm load. i believe that amp is 500wrms at 4ohms. with a 1ohm load you would really over power them.


Gold Member
Username: Chaunb3400

Huntsville, Alabama U.S.

Post Number: 1825
Registered: Jul-05
ur welcome


Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 79
Registered: Nov-05
ok another question my two subs are not hooked up together.they are in the same box but the back has to pairs of speaker input.one for each sub.how do i hook it up to 4 ohms.sorry for being such a noob.because it looks like the two subs are wired together and has 1 input on the back of the box.


Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 80
Registered: Nov-05

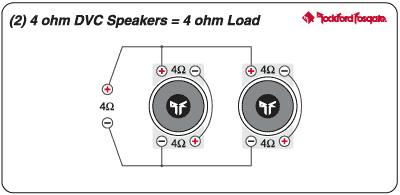

when i go to this site it looks like its wired together

Upload


Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 81
Registered: Nov-05
its wired like this right now
Upload
each sub.no wires connected to each other.how many ohms is this anyway.


Silver Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 741
Registered: Oct-05
just connect the subs like the first picture. aftere that take the positive from each sub and the negative from each sub and connect it to your amp.


Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 83
Registered: Nov-05
im lost lol.so only 1 of the in puts will be used?


Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 84
Registered: Nov-05
or should i say only one of the speaker terminals will be used.my box has two thats why


Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 85
Registered: Nov-05
two sets


Gold Member
Username: James1115

Wilton, Ct

Post Number: 4269
Registered: Dec-04
yes only 1 will be used unless you do each sub seperate and then bridge it going into the amp take the 2 +'s and the 2 -'s and go to the amp its the same thing but you will use bot terminals. I would only do it this way if there is a divider in your box.


Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 86
Registered: Nov-05
yes it has a divider.so how should i wire them up.


Bronze Member
Username: Islandboy808

Mililani, Hawaii US

Post Number: 88
Registered: Nov-05
bump


Silver Member
Username: Bestmankind

Los Angeles, CA USA

Post Number: 772
Registered: Oct-05
if you have a divider then do as james said. do each sub separately and bridge it going in to the amp.
