Dual voice coil in series



New member
Username: Kicker

Slave lake, Alberta Canada

Post Number: 4
Registered: Jun-05
how do you hook up 4 cvr12" kicker dual voice coil sub to one 2 channel amp 850.2 kicker keeping it at 2ohms


Silver Member
Username: Shadylimitedx

Pgh, Pa Usa

Post Number: 240
Registered: Apr-05
is it dual 4ohms or dual 2ohms


New member
Username: Kicker

Slave lake, Alberta Canada

Post Number: 10
Registered: Jun-05
dual 4ohms i do beleave


Silver Member
Username: Alias747

MN

Post Number: 316
Registered: Apr-05
your question doesn't make sense and you have to be sure what voice coil config you have or we cant help you. What exactly is it that you want to do?


Bronze Member
Username: Sq_junkie

Anchorage, AK US

Post Number: 43
Registered: Jun-05

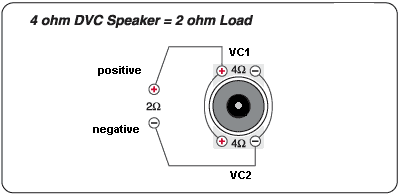

If they are dual 4 ohm coils then wire each sub to 2 ohms:

+to+ and -to- on each sub
then wire them like this:
sub1 series to sub2>>>(4ohms now)
sub3 series to sub4>>>(4ohms now)
then wire the:
sub1/2 combination in parallel with the sub3/4 combination.
That will give you 2 ohms at the amp.


New member
Username: Prettyboypunter

MS

Post Number: 1
Registered: Jun-05
I bought 3 800 peak audiobahn speaker sith the flames i got a 1400 watt audiobahn amp with the flames for them but im only hooking 2 to the 1400 watt amp whats the best way tp hook them up the amp is 2 ohm and im going to hook the other one to a 400 watt bridgable amp can i bridge one speaker all the speakers are dual voice coil what should i do


Silver Member
Username: Loudnobnoxious

Post Number: 134
Registered: Jul-04
www.jlaudio.com

hit tutorials then wiring your subs.

Your welcome for my assistance.


Bronze Member
Username: Invictuz

Seattle, Wa Usa

Post Number: 80
Registered: Jan-05
