Alright guys, I need a little help. I need all the dimensions of a ported box for a Digital Designs DD 9515d. I think DD recommends something like 2.75 - 3.5 cf tuned to 40 hz, not exactly sure. I'll be giving it about 900 rms form my HCCA 250, so first, what volume do you guys think I should shoot for. I'd also like to have the box tuned lower, something like 35 rather than 40. I know people say they have DD boxes built to specs, and they sound awsome, but I want it low. Now, I'm gonna need help getting all the measurements right. I could figure it out on my own, but I've been busy lately, and I know how much you all enjoy planning out boxes. (haha) Thanks
I know. I just get paranoid when I'm making stuff for myself instead of giving people advice on this forum. I'm really picky, and although very smart, I do things to fast sometimes and make simple little mistakes.

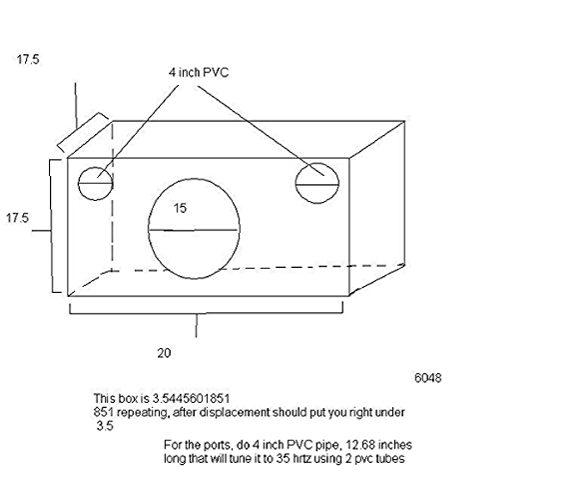

sean, how about this, ill design all the measurements and such and do everything if you promise to double check my work, joe, ill draw you somen up on paint, give it to someone to rescale cause i dont have photoshop or anyhting, but ill work on getting 3.5 cubic feet before displacement, that way it will still be inbetween there after displacement, then tune it to 35, this ok?
