Converge



Bronze Member
Username: Araknid

Post Number: 55
Registered: Nov-04
I had an idea today on making a duo enclosure by taking a sealed enclosure and a band pass and converging it together and srewing the speaker dead in the middle. what do u think? would it have the hard hitting of the sealed plus the higher sound of the bandpass? or something like that.


Gold Member
Username: Glasswolf

NorthWest, Michigan USA

Post Number: 6413
Registered: Dec-03
do what?
a bandpass enclosure conceals the driver inside the box, with sealed on one side and vented on the other side of the speaker for 4th order, or vented on both front and back of the sub for 6th order.

I have no idea what you're trying to do.

you may want to research just what a bandpass box really is before trying to engineer some new type of box.


Bronze Member
Username: Araknid

Post Number: 57
Registered: Nov-04
ok not the sealed but other box looks like this

_________
!OOOOOO!
!OOOOOO!O!
!OOOOOO!O!
!OOOOOO!O!
!OOOOOOO!
--------------------
OO = free air
the sub at the top and the air goes down and up out the side. this is not bandpass? or wait its ported right. Can I use paint to show u a accurate diagram of my box plan?


Bronze Member
Username: Redskin

LondonEngland

Post Number: 86
Registered: Dec-03
Ah yes thats much clearer???????????????


Bronze Member
Username: Araknid

Post Number: 58
Registered: Nov-04
the piant file im trying attach says its to large to upload how can i do it without doing the diagram over again?


Bronze Member
Username: Araknid

Post Number: 59
Registered: Nov-04
paint sorry


Bronze Member
Username: Araknid

Post Number: 61
Registered: Nov-04
or am i doing something wrong GlassWolf any idea?


Silver Member
Username: Jmloughrey

Farmington, CT

Post Number: 532
Registered: Jul-04
make it a JPG file not a BMP...worthless BMP files


Bronze Member
Username: Araknid

Post Number: 62
Registered: Nov-04
Upload


Bronze Member
Username: Araknid

Post Number: 63
Registered: Nov-04

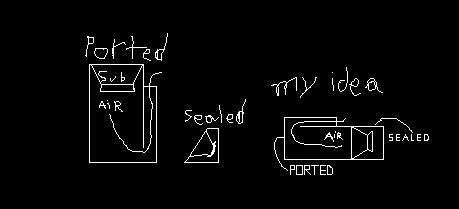

got it finally -- well?


Silver Member
Username: Jmloughrey

Farmington, CT

Post Number: 534
Registered: Jul-04
you basically drew a bandpass box dude...


JuNGLiST
Unregistered guest
You sir, are a c0ck.


Bronze Member
Username: Araknid

Post Number: 64
Registered: Nov-04
really..... damn......


Bronze Member
Username: Araknid

Post Number: 65
Registered: Nov-04
how about to subs facing each other in a sealed enclosure, battling each other but it would have to be completely custom and handmade and im not in the mood for another diagram.


Bronze Member
Username: Araknid

Post Number: 66
Registered: Nov-04
no because if it was a bandpass the sub would face away from the hole.


Silver Member
Username: Jmloughrey

Farmington, CT

Post Number: 535
Registered: Jul-04
pretty sure thats a isobaric enclosure...


Bronze Member
Username: Araknid

Post Number: 70
Registered: Nov-04
ok I know alot about car audio but isobaric is?


Bronze Member
Username: Help_2

MN

Post Number: 19
Registered: Dec-04
clam shell...
2 subs mounted facing eachother...


Gold Member
Username: Glasswolf

NorthWest, Michigan USA

Post Number: 6451
Registered: Dec-03
your drawing is fo a 4th order bandpass enclosure.
that's the type you see at best buy made by q-logic and sold for about $50.
sealed behind the sub, vented in front, or vice versa.

here's some info on box types with photos:
http://www.diysubwoofers.org/

check out each link on the left menu on that site.
look at the images and read up on em a bit.
then tell me what ya think.


Silver Member
Username: Solacedagony

New Jersey US

Post Number: 138
Registered: Oct-04
What you did was inversely mounted the sub in a 4th order bandpass. Like if you took a sealed enclosure and mounted the sub magnet out.
