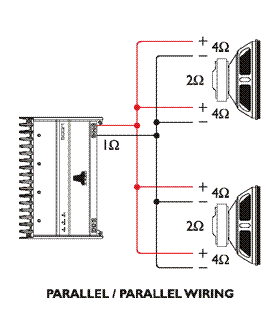

i know i have to wire my dual voice 4ohms to an 1 ohm stable amp. heres a picture but i dont know what the hell it means. what are all the dots. please please tell me what it means.
Your best bet would be to use butt connectors/other proper types or solder them together. Electrical tapes purpose is to cover up exposed wire, not so much hold it together. Everything you need can be found at RadioShack for the guage wire you are using.
No you don't have to cut the wires. In reality, you run the speaker wire from one terminal of the subwoofer to the other voice coils terminal, and the first terminal to the amplifier's output. Same for the other sub and other connections. So in reality, it'll look like this:
