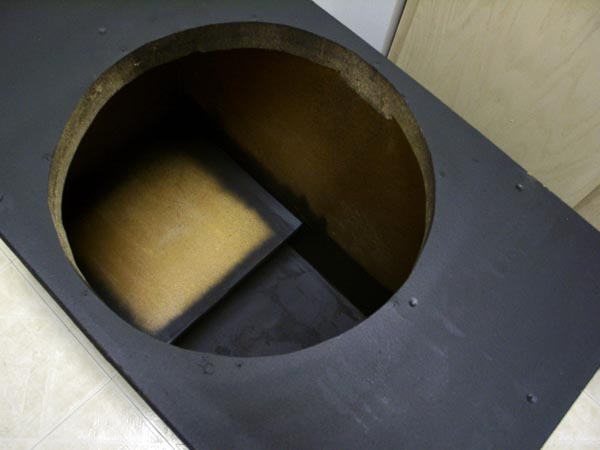

Single 15 Ported Enclosure



Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 1893
Registered: Nov-05
$60 + shipping

Type: Vented Box
Shape: Prism, square
Vb = 3.96 cu.ft
Fb = 47.11 Hz
Fill = none
No. of Vents = 1
Vent shape = rectangle
Vent ends = one flush
Hv = 14.5 in
Wv = 4 in
Lv = 13 in

Upload
Upload
Upload
Upload


Platinum Member
Username: Chaunb3400

Huntsville, Alabama U.S.

Post Number: 10558
Registered: Jul-05
damit if it wasnt tuned so freaking high...i would buy right now...and im not good with woodwork...so i cant re-tune it...


Gold Member
Username: Logan__tille

Post Number: 2884
Registered: Feb-06
What are the outside dimensions of the box?


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 1901
Registered: Nov-05
whoops forgot that.. my bad! lol

16(h)-28.5(W)-23.25(D)

chauncey.. you could make another baffle over the port and do PVC ports. would be the easier way to retune it.. or butt another piece of wood to it to make it longer.. if you bought it i'd help you figure out how long the port would need to be to tune it down..


Gold Member
Username: Logan__tille

Post Number: 2887
Registered: Feb-06
I want some pics of the port.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 1916
Registered: Nov-05

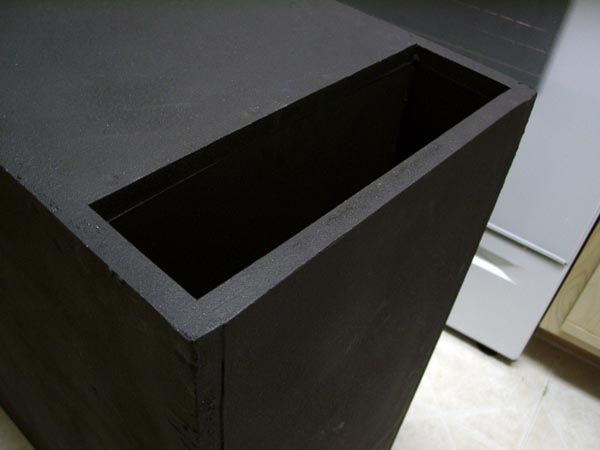

the last picture is the port.. and the one right before it shows the length.. not quite sure what more your asking for?

once i understand i'll take some more pictures lol


Gold Member
Username: Logan__tille

Post Number: 2896
Registered: Feb-06
like a pic that is farther away so i can see where it is on the box.


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 1920
Registered: Nov-05
my bad.. if you look at the first pic.. it would be on the left side. I'll try and get a pic up soon as I find some batteries that are actually charged. prolly end up going to the store later and buying some


Gold Member
Username: Logan__tille

Post Number: 2907
Registered: Feb-06
I want it, but its tuned to high. How hard would it be to retune it?


Gold Member
Username: Frkkevin

Resonant Engineering..., Fort Worth... Email

Post Number: 1935
Registered: Nov-05
you could just extend the port with another piece of 3/4 MDF.. or you could build another port 3" wide that slid down the old port.

I had a call locally for a buyer but won't know until tomorrow if he for sure is getting it


Silver Member
Username: Teamdeboy1971

OPTIDRIVE LN., TN Major Bass P...

Post Number: 353
Registered: Nov-06
What would it take to ship it to 37766 TENNESSEE?


Silver Member
Username: Teamdeboy1971

OPTIDRIVE LN., TN Major Bass P...

Post Number: 434
Registered: Nov-06
Box Specs 3XL-15D





Optimum Ported Vol.

Standard

Metric


Gross Vb Internal

5.0 cu. ft

141.58 Liters


Circular Port

6" x 7.5" D

15.24cm x 19.05cm D


Fb (Box Tuning)

40 Hz

40 Hz


F3 (-3dB Cutoff)

33 Hz

33 Hz


Pe (Watts-Rms)

250-500 Watts

250-500 Watts


Subsonic Filter Setting If Applicable

35 Hz

35 Hz


thats what I'm working with, will that box work?
