Winisd vs Factory recommendation



New member
Username: 87pontiac

Post Number: 1
Registered: Nov-14
Just a quick Hello to all, NEW GUY here! just a quick question. Factory recommends a 2.1ft3 ported box tuned to 44hz with 6in x 9in PVC round port,but Winisd gives a completely different result when T/S Parameters are put in.
Do I go with Factory or Winisd?
1998 Pontiac Sunfire GTX, workable space is 17.5"high x 35"wide x 36"deep(can go deeper).
Looking to put 2 15 in subs in ported box with 300rms to each sub(everyday driver) may upgrade later.
Thanks Alot!!!!!!




Upload
Upload
Upload
Upload


Gold Member
Username: Joe1234

Post Number: 1994
Registered: May-09
WinISD recommends a box aimed at home audio applications and sound quality so may not be adequate for your car due to cabin gain.

Subs are bad, if anything I would do a 5 net box with two 6" round ports firing driver's side tuned to 37Hz at most. Get Torres calculator to do calculations.

But honestly I would just change subs.


New member
Username: 87pontiac

Post Number: 2
Registered: Nov-14
Newly updated pics(2016)

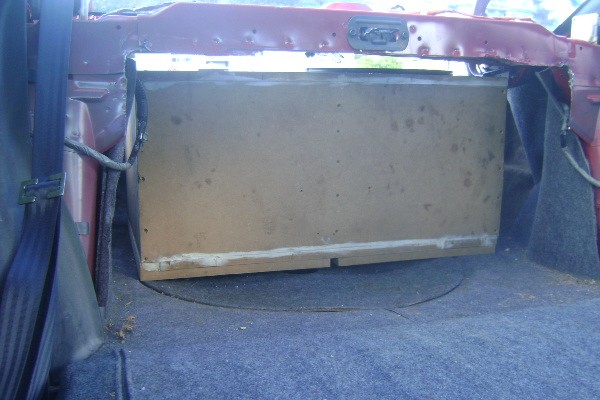

Bye bye trunk and rear seat

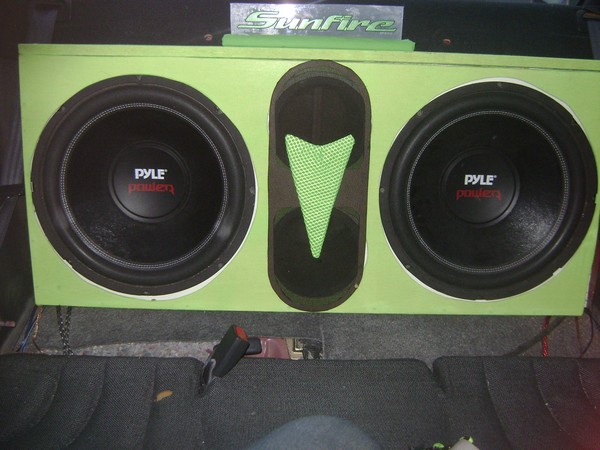

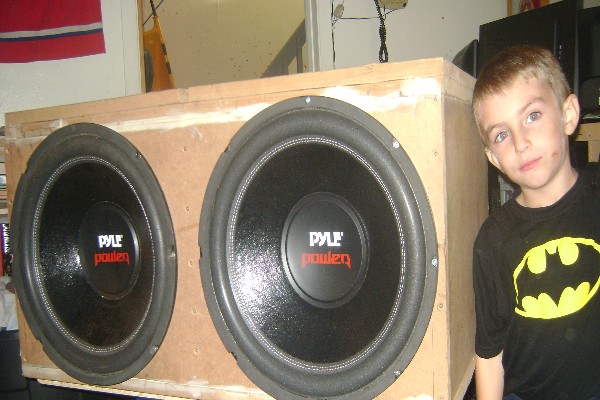

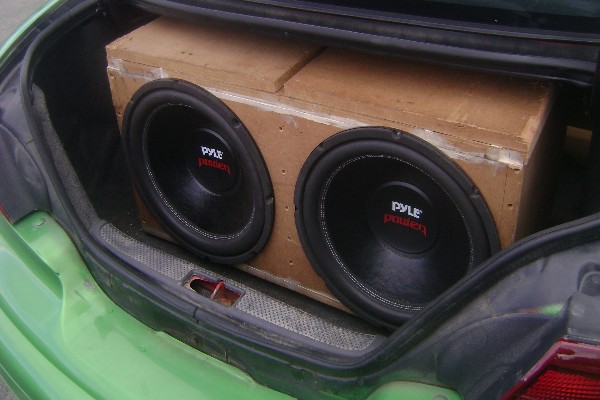

2 Pyle PLPW15D subs 1000w rms Dual voice coil

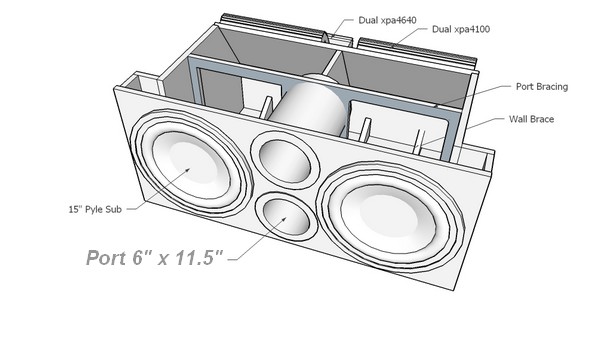

5.93 cu ft box
Port 6" diameter x 11.5" long
Internally braced
Doubled baffle board
Upload

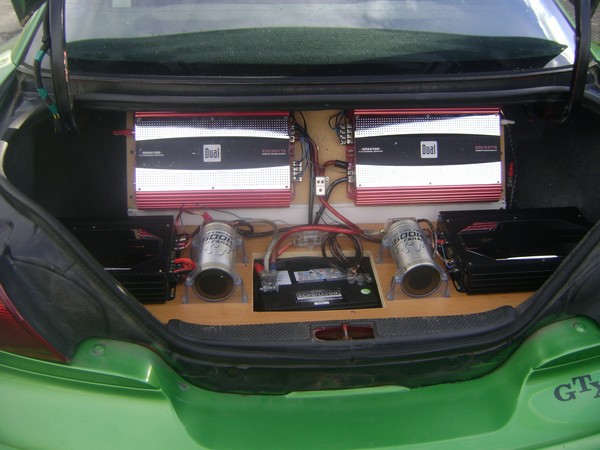

4 Dual amps 50w x 4, 150w x 2 bridged 4 ohms
Amp 1= bridged 150w x 2 to subwoofer #1
Amp 2= bridged 150w x 2 to subwoofer #2
Amp 3= 50w x 4 to 2 6 x 9 and 2 dash mount tweeters
Amp 4= 50w x 4 to 6 x 9 deck speakers

Upload

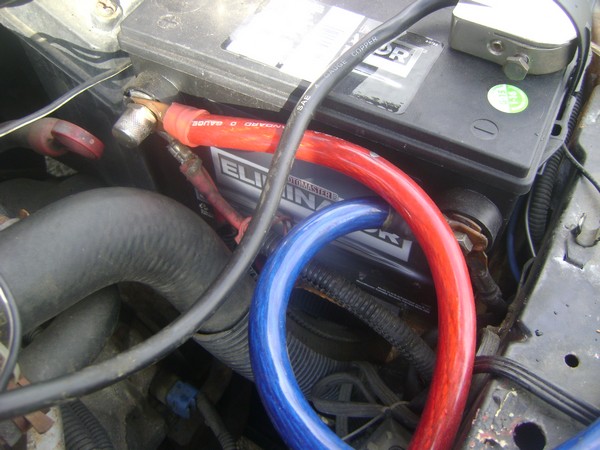

Big 3 1/0 positive and ground
Upload


New member
Username: 87pontiac

Post Number: 3
Registered: Nov-14
Newly updated pics(2016)
Bye bye trunk and rear seat
2 Pyle PLPW15D subs 1000w rms Dual voice coil
5.93 cu ft box
Port 6" diameter x 11.5" long
Internally braced
Doubled baffle board
4 Dual amps 50w x 4, 150w x 2 bridged 4 ohms
Amp 1= bridged 150w x 2 to subwoofer #1
Amp 2= bridged 150w x 2 to subwoofer #2
Amp 3= 50w x 4 to 2 6 x 9 and 2 dash mount tweeters
Amp 4= 50w x 4 to 6 x 9 deck speakers
Big 3 1/0 positive and ground

Upload
Upload
Upload
Upload


New member
Username: 87pontiac

Post Number: 4
Registered: Nov-14
Newly updated pics(2016)
Bye bye trunk and rear seat
2 Pyle PLPW15D subs 1000w rms Dual voice coil
5.93 cu ft box
Port 6" diameter x 11.5" long
Internally braced
Doubled baffle board
4 Dual amps 50w x 4, 150w x 2 bridged 4 ohms
Amp 1= bridged 150w x 2 to subwoofer #1
Amp 2= bridged 150w x 2 to subwoofer #2
Amp 3= 50w x 4 to 2 6 x 9 and 2 dash mount tweeters
Amp 4= 50w x 4 to 6 x 9 deck speakers
Big 3 1/0 positive and ground

Upload
Upload
Upload
Upload


Gold Member
Username: Joe1234

Post Number: 2055
Registered: May-09
A lot of effort put into that build, actually nice looking, congratulations on that.
