Fiberglass - 05 Acura RSX



Silver Member
Username: Alonzoub

Post Number: 261
Registered: Apr-10
Just thought I would share some pics from this little project me and a couple friends took on a cpl weeks ago.

So my buddy has had a single Image Dynamics ID10v3 in a sealed ~1cu.ft fiberglass box on ~250 wRMS for a while and he decided he wanted a bit more oomph. Luckily for him I had an extra ID10v3 sittin around and we had alot of extra supplies from the first build.

Heres pictures from the second box build, this time with an amp rack too!

Covered the area with tin foil.
Upload

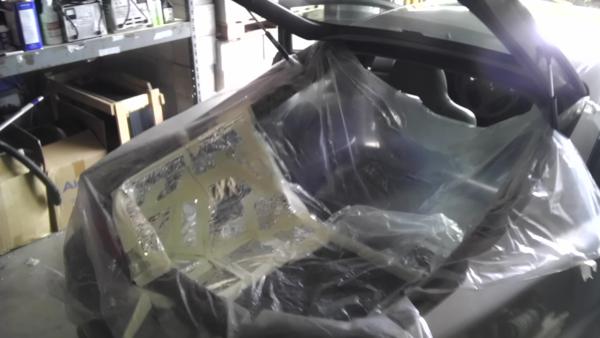

Tarped over everything else to keep it clean.
Upload
Upload

First layer of fiberglass mat applied.
Upload

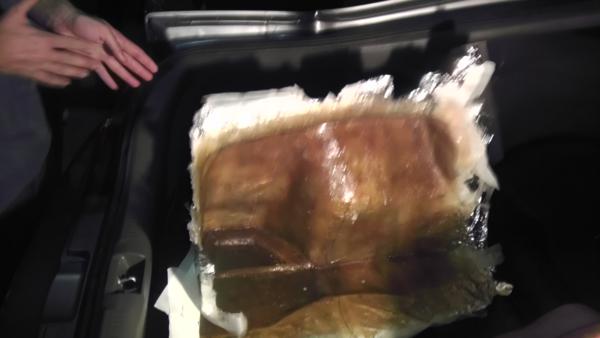

Second layer of mat applied and 3rd layer in fiberglass cloth.
Upload

Fourth Layer in mat and 5th layer in cloth.
Upload

What happens to plastic cups when you use too much hardener lol...
Upload

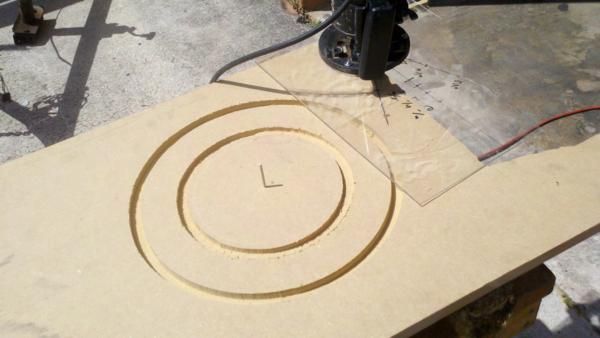

Cuttin out the speaker baffle.
Upload

Hot glued the baffle in with dowels and also glued the amp mount in.
Upload

Hot glued fleece over the area and trimming it up.
Upload

Soaked the fleece in Fiberglass resin with tons of hardener.
Upload

First layer of bondo on the front for strength.
Upload

Second layer of bondo (after hardened)
Upload

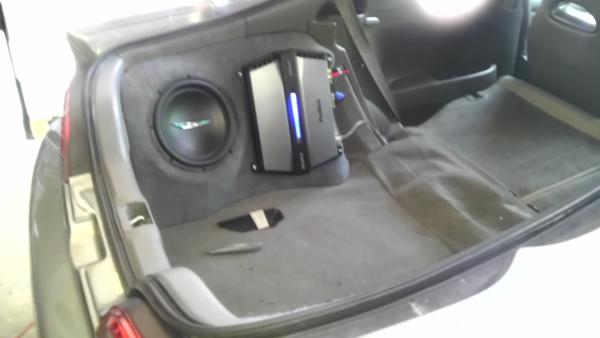

Put in the makeshift amp mount bolts, covered the box in carpet, and mounted the speaker! The box on the left is the first box we made like 1 year ago.
Upload

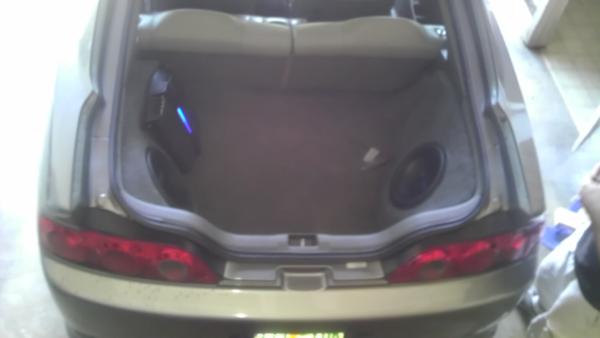

Box in the car.
Upload
Upload

Yes that is a sony explod amp, but it sounds fantastic. Pretty soon im going to Oscope/clamp that amp to prove to people that Sony amps are good budget amps.

All in all a successful build!


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 3209
Registered: May-07
Very nice work!


Silver Member
Username: Joe1234

Post Number: 328
Registered: May-09
Sony owes you for this.
