My new build. 2009 Charger PICS



Platinum Member
Username: Nd4spd18

Philadelphia, PA

Post Number: 11916
Registered: Jul-06
So I finally got my new equipment installed. I will start by saying my goal with this build was to keep a completely stock look, but make it sound great.

So lets cut the BS and get to the PICS




Heres the car, old pic when there was snow on the ground lol

Upload


Parts list for the system:

RE Audio RE6.5C components
RE Audio SRX12D2 subs
PAC AOEM-CHR3 factory HU interface
Sundown Audio SAZ-1500D and SAX-125.2



Upload

Upload

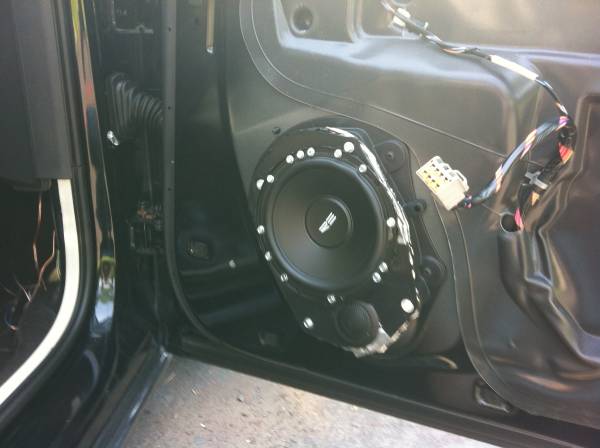

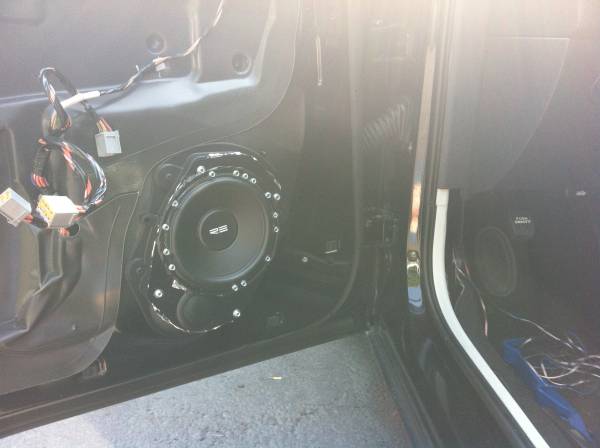

Components installed in the doors. The silver is dynomat, I always use it between speakers and baffles. Used adapter brackets to mount the 6.5" and tweeter in the factory 6x9 opening, but I had to mod the adapters on the grinder quite a bit, the holes were not big enough for these speakers. lol.



Upload

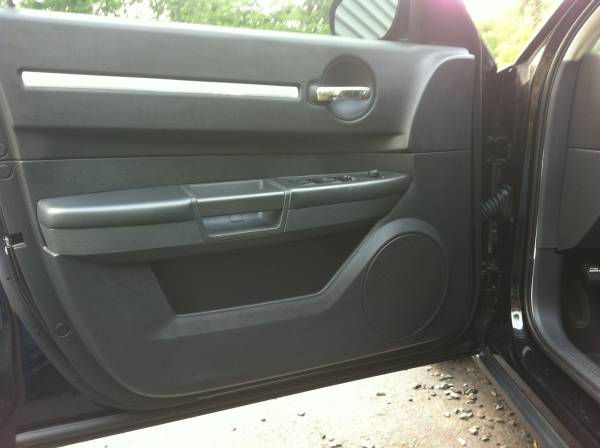

The door looks completely stock with the panel back on.



Upload

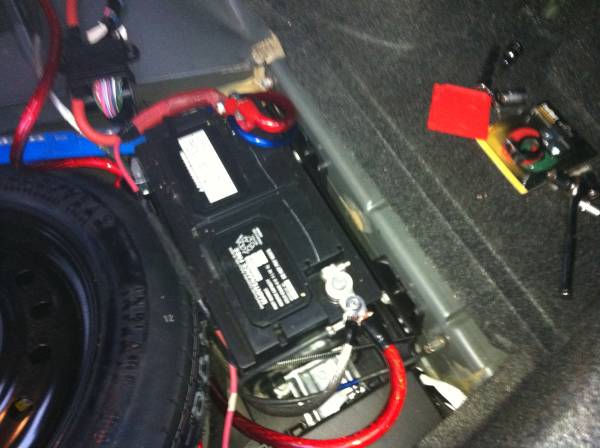

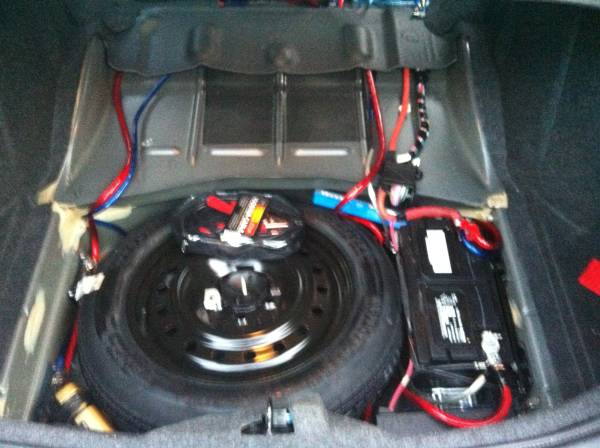

View of the battery / spare tire compartment with the trunk liner still out, fuse blocks mounted on the left.

Upload

Upload

Upload

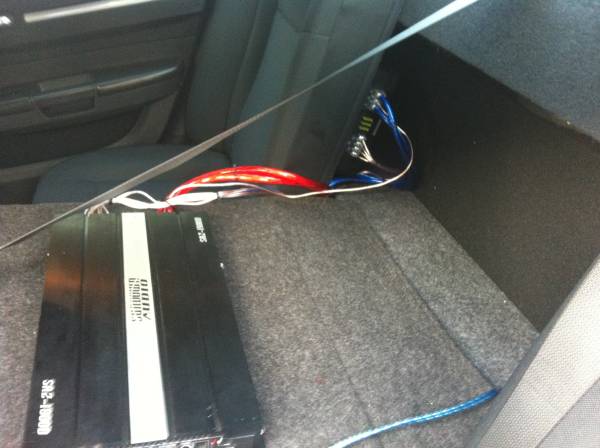

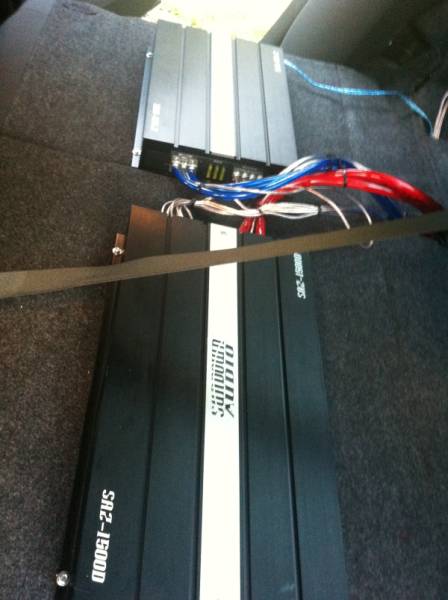

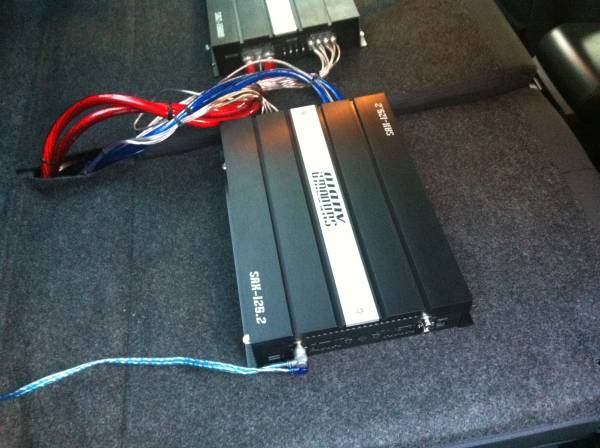

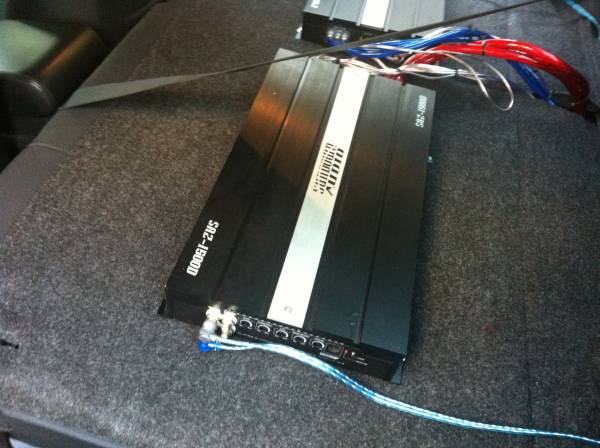

Amps on the back of the seats.

Upload

Upload

Upload

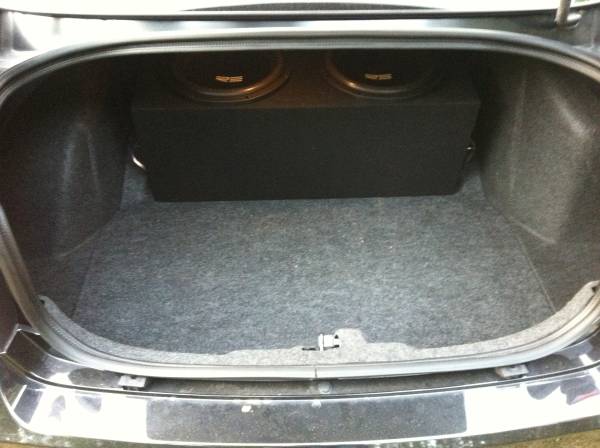

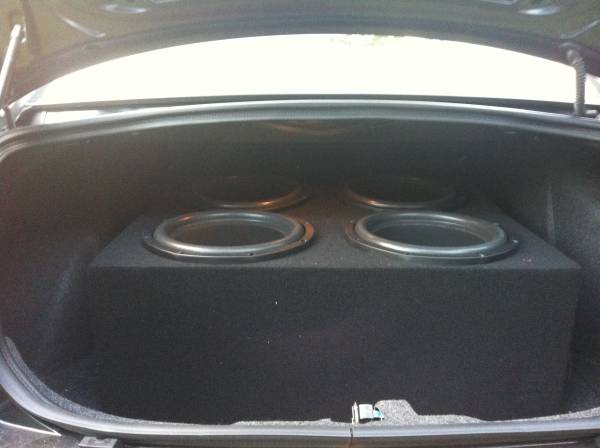

I bought 4 subs since they were a deal at $100 each, and I was impressed by how loud it was... actually was WAY more bass than I need lol. So I took 2 of them out and sold em to a friend, so now I'm only running two of them at a 2 ohm final load to the 1500D, so getting ~800 watts. And it's still plenty loud.

Upload

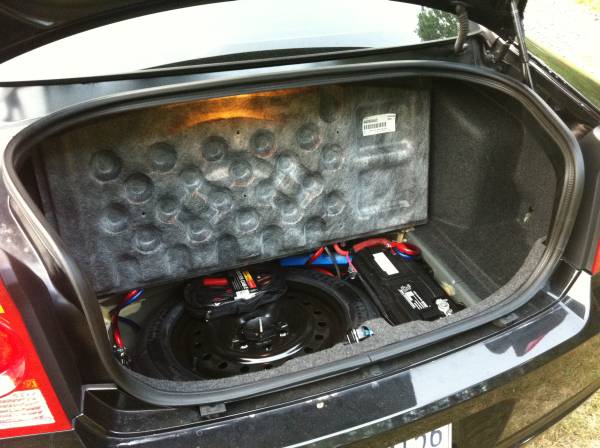

And this way, the spare tire compartment is easilly accessible since the box doesn't sit on where it folds up. And I half half my trunk left.

Upload



The split rear seat can still have half folded down.

Upload

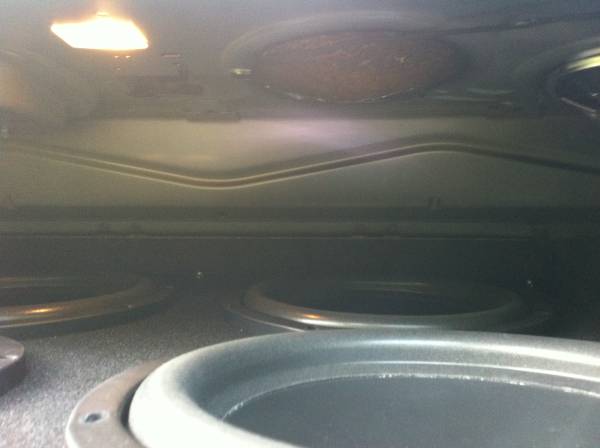

The car also had a spot in the rear deck where an 8" factory sub would go if it had the "premium" stereo. So I just cut out the sound deadener that covered it, and now the truck is vented into the cabin thru that opening.

Upload

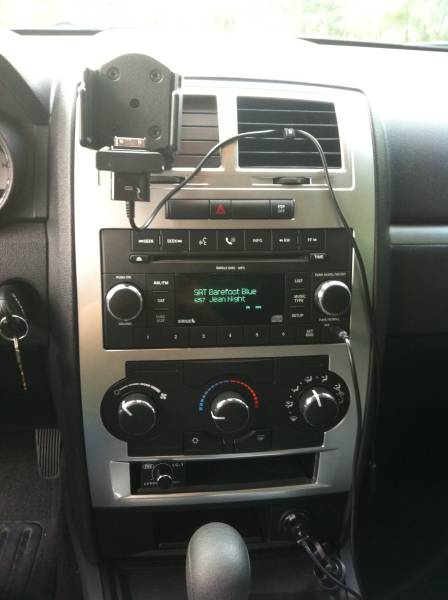

I used a PAC audio interface to get RCA outs from the factory radio. Here you can see the radio with my iphone mount, and PAC audio bass level control.

Upload



Questions / comments welcome.


Gold Member
Username: Kaerfpl

Spencerport, NY USA

Post Number: 1174
Registered: Jun-06
Looks good. How do those RE Audio components sound? I've always been curious and tempted to buy em' myself.


Gold Member
Username: Wolf_hound

Phoenix, AZ

Post Number: 1409
Registered: Sep-05
looks great. Those chargers have some big azz trunks


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 3193
Registered: May-07
Lookin' good! still have the blazer or is it gone?


Gold Member
Username: Jbpitt

Pittsburgh, Pa. Usa

Post Number: 1265
Registered: Jul-09
Nice man! Looks really clean...


btw, what did you use to mount those amps on the back of the seats?


Platinum Member
Username: Nd4spd18

Philadelphia, PA

Post Number: 11917
Registered: Jul-06
" How do those RE Audio components sound? "

Awesome is how. lol. They are easily the best $130 speakers out there. They sound I'd say 90% as good as the $350 set of CDTs in my truck.



" still have the blazer or is it gone? "

It is gone, but my I miss that little old truck. That thing served me well for 7 years and 80k miles. Had 210k on it when I sold it and still ran great. My new truck is a 94 Chevy 1500 so I have that and the charger now.




" what did you use to mount those amps on the back of the seats? "

Just hardware store zip screws into the metal frame of the seat back.


Platinum Member
Username: Nd4spd18

Philadelphia, PA

Post Number: 11918
Registered: Jul-06
Upload



There's both trucks


Gold Member
Username: Joebruce

Crescendo Audio FTMFW!!!, AA Havoc 15 ... Your Mom FTW!!!

Post Number: 3624
Registered: May-04
Nice car and nice install! Very clean and simple.


Gold Member
Username: Southernrebel

Monroe, Louisiana Team Audible...

Post Number: 8510
Registered: Mar-04
Is that the Xscorpion cable and connections, MS?
Did you have enough?


Gold Member
Username: Van_man

Boston South, MA

Post Number: 5488
Registered: Mar-06
Very nice..Clean. Nice job with the door panels.. Looks alot better then the Spongebob Squarebox ones you had in the blazer.


Platinum Member
Username: Nd4spd18

Philadelphia, PA

Post Number: 11921
Registered: Jul-06

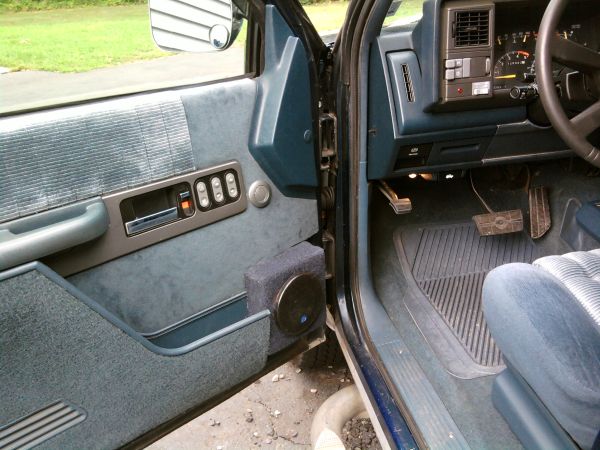

Hey those square ones worked great... lol. I recovered them in blue carpet and they are in the truck now haha. Both trucks have the same issue, no depth available in the door to mount speakers, stock ones are in the dash.


Upload



@ Canaan, Yes I used all the wiring and accessories you sent me, thanks man. Had to run down to the local audio shop for one extra set of ring terminals but that was it.
