Box Build: Alpine SWR-1243D



New member
Username: Bhobbie

Post Number: 8
Registered: Sep-10
I have 2 Alpine Type R's [SWR-1243D]

Okay i found someone to custom make me a Ported box for these subs and these are the specs he recomended/ And i agreed. Before i give him the "Go" to start working on it i want to get other peoples opinions/sugestions and or comments.

*Chambers: 2 Each subwoofer with its own chamber
*Cu Ft per chamber: 2 cu ft
*Tuned from anywhere from 30Hz-35Hz (Please give a suggestion...Im thinking of 32Hz)
*3/4" MDF

Now i am stuck on which design i want to go with...
The 2 ports/Vent side by side in the middle such as...
http://yfrog.com/neportedbox2j
or
The ports/vents on the sides of the subwoofers such as...
http://yfrog.com/5eportedboxj
Your advice/comments well apreciated.
Thank you


Platinum Member
Username: Rovin

1 15 = 153 DBs ...Trinidad & T...

Post Number: 16661
Registered: Jul-05

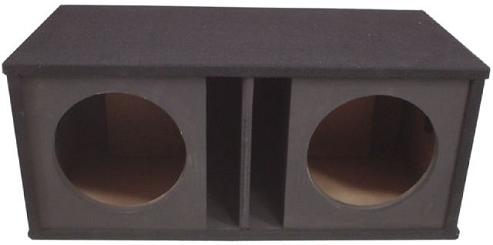

id pick each subwoofer with its own chamber & port like in that 1st pic :

Upload

3\4" mdf is fine

32-33hz is good

between 2.2.25 after sub port displacement is good too ...
