OK i'm a little new to the who box building thing. I made a box for a jlw6 a while back but i just followed the directions off the jl sit.

First off i need to know if i can fit the 15 hdc3's or if i will have to go with the 12's. My measurement show that i have about 9 cubic feet to work with. I tried making a couple sample boxes on reaudio.com but it seems i might not have enough volume once the port and driver are added in. I can squeeze a little more out if i have to. I would like to keep my trim in though.

Another dilemma I'm running into is i cant make up my mind which way i want the subs to be facing along with the port.

let me know what you guys think and if you have any articles or so forth for beginner spl box builder's i would love to read them.


Gold Member
Username: Delsole

Post Number: 1494
Registered: Feb-05
Upload
Upload


Gold Member
Username: Delsole

Post Number: 1495
Registered: Feb-05
Upload
Upload
Upload
Upload


Gold Member
Username: Delsole

Post Number: 1496
Registered: Feb-05

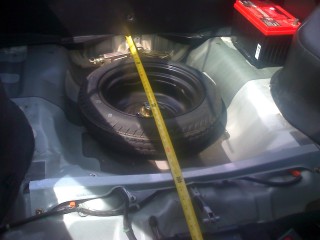

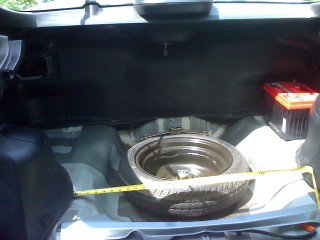

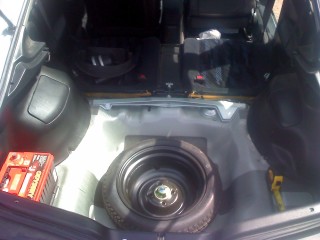

My length is about 40 inches the depth is about 30 and my height is 16 inches.


Gold Member
Username: Delsole

Post Number: 1497
Registered: Feb-05
I would have kept everything in the other post but it seemed to be getting a bit cluttered.


Gold Member
Username: Dustin3

Box Designer & Builder...Dustin

Post Number: 5577
Registered: Oct-05
It could be done, I would have to sketch it out and see if they would fit but it's definitely possibly especially if you used aero's.


Gold Member
Username: Delsole

Post Number: 1498
Registered: Feb-05
Where can i buy or what is recommended to use as areo's?


Gold Member
Username: Delsole

Post Number: 1499
Registered: Feb-05
Upload

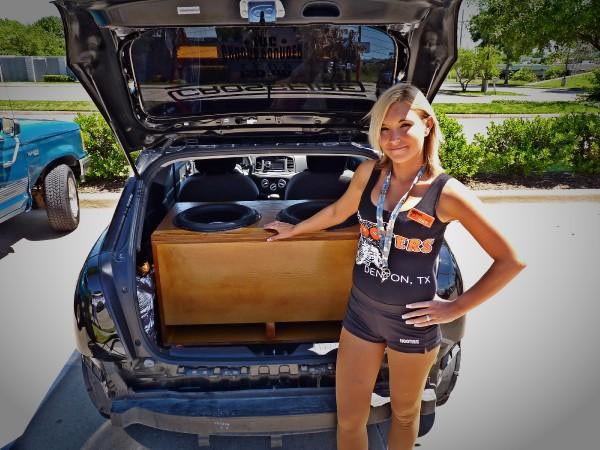

I really like the way this box looks. I don't have the height to make that but i think i can make up for it in the length. Does anyone know what this box is tuned to? And perhaps How many cubic feet is is?


Gold Member
Username: Dustin3

Box Designer & Builder...Dustin

Post Number: 5579
Registered: Oct-05
http://www.parts-express.com/pe/showdetl.cfm?Partnumber=268-352

That's an aero.


Gold Member
Username: Kyle_lowe

Post Number: 1067
Registered: Apr-06
here is the link to the 6" flare ports
you can just navigate back to the port tubes page to find the smaller sizes
http://www.parts-express.com/pe/showdetl.cfm?Partnumber=268-354&vReviewShow=1&vReviewRand=2775929

and here is the link to the calculator for those ports
http://www.psp-inc.com/tools.html


Gold Member
Username: Delsole

Post Number: 1501
Registered: Feb-05
Do these ports sound as good as slot ports?


Gold Member
Username: Dustin3

Box Designer & Builder...Dustin

Post Number: 5580
Registered: Oct-05
Yes, and they displace less volume.
