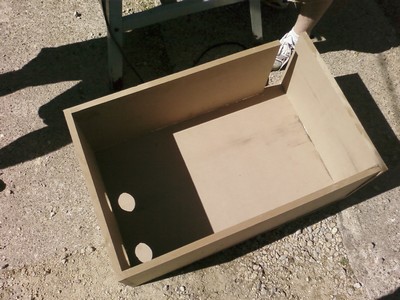

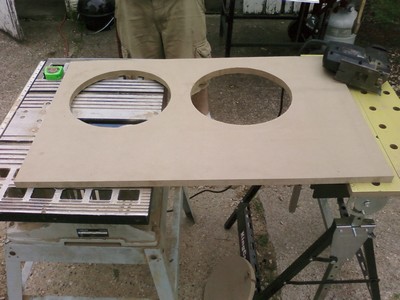

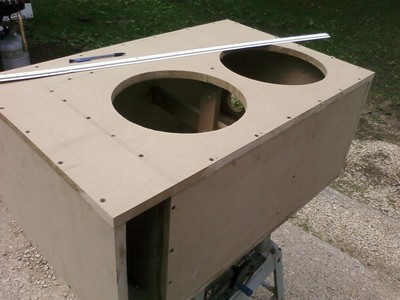

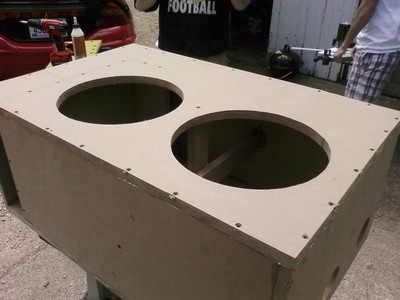

well got done helping a friend build a box. here are some pics...we weren't shy with the glue...still needs a little paint and carpet, but came out pretty good. especially considering we had a small table saw and no clamps to help us

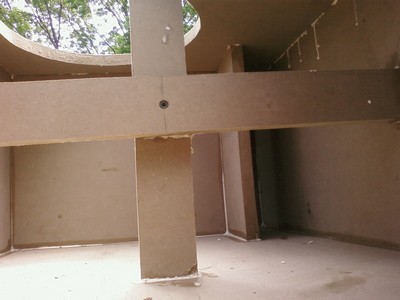

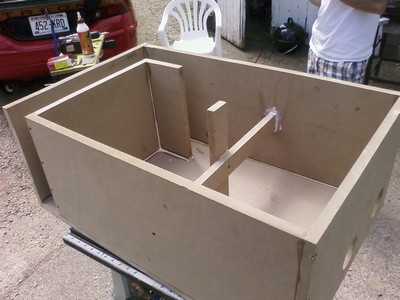

3.43 cubes at 32.5 hz....sub disp, port, port end correction factor, and bracing accounted for
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload

Upload


Gold Member
Username: Dustin3

Box Designer & Builder...Dustin

Post Number: 5572
Registered: Oct-05

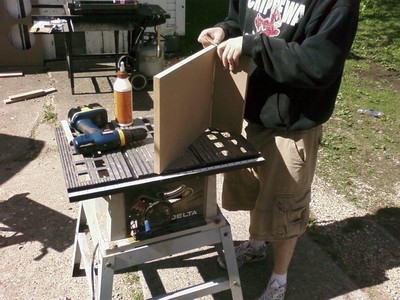

That's a nice Delta saw. Dad used to have it. Looks good tho!


Silver Member
Username: Gcs8

Atlanta, Ga

Post Number: 462
Registered: Sep-09
nice build.


Silver Member
Username: 813thumper

Tampa, FL United States

Post Number: 160
Registered: Sep-09
dos xplods need dat bracing yo lawl


Platinum Member
Username: Insearchofbass

2 hifonics 2607s, 2dcSounds12xls SPL\idmax12SQ

Post Number: 13967
Registered: Jun-04
Nice build for what you had


Silver Member
Username: Dlavante

C-town, Oregon

Post Number: 252
Registered: Feb-07
looked good up until the last pic lol


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4438
Registered: May-07
I take it that the holes on the side will be where theterminal cups go, huh?


Silver Member
Username: Boomtank

Rochester, NY USA

Post Number: 694
Registered: Oct-06
Sony Xplods ... Weak Sauce lol, nice box build though.


Platinum Member
Username: Rovin

1 15 = 152.5 DBs ...Trinidad & T...

Post Number: 16256
Registered: Jul-05
looking good & i bet in spite of the reputation of those subs u will get a decent amt of bump from them ....


Silver Member
Username: Jbpitt

Pittsburgh, Pa. Usa

Post Number: 387
Registered: Jul-09
Nice box man! You couldnt talk your friend into some better subs?lol


Gold Member
Username: Deadrabit

Marionville, MO

Post Number: 2408
Registered: Jun-07
don't listen to these guys talking bad about ur subs.
it looks good.
one of those subs look kinda close to ur port.. hope it doesn't free air! if it doesn't i bet those sonys will impress a lot of people


Bronze Member
Username: Schinner

Post Number: 93
Registered: May-07

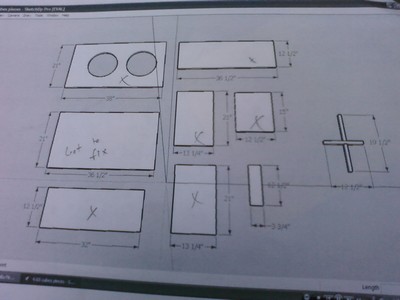

thanks for all the comments guys...the whole project was designed by me but my friend built it....i simply guided and acted as a clamp so i take no offense to the choice of woofers.

i didnt snap a pic with the terminals in and the inner seams glued again. the sub is a little close to the port but it is def sealed real well so im not worried. i only got to hear it for a little bit, sitting out on the table saw wires running into the other guys car. seemed smooth for being out in the open and with a highpass at 50 hz and no lowpass what so ever!!! (we need it in his car to use the hu for highpass and amp for lp...but since we didnt have any crossovers with the other guys headunit we had to use a highpass with the amp that only went down to 50 hz)

im back home for the summer (i was away at school) so this next week ill be starting a new build for my own car.
