What enclosure should I use?



Thomas
New member
Username: Teltic

Post Number: 1
Registered: Apr-10
Posted on
I have four 8" audiobahn AW831T subwoofers.

sealed or ported?

I really want to build a ported box, I've read countless forums about building... Tried to use WinISD, building a ported box is complex!

Anyone want to help me build a box?

This is the space I have to work with. (38L x 16 h x unlimited amount deep)

slot or ported?


Kyle Longbrake
Gold Member
Username: Kyle_lowe

Post Number: 1034
Registered: Apr-06
Posted on
the audiobahn website does not have a recommended enclosure volume so i will just go ahead and take a guess at maybe .5^3 ported each

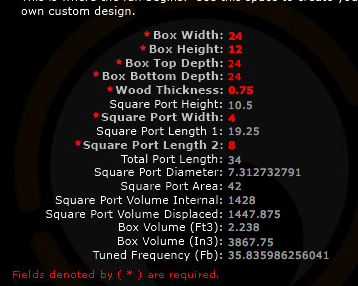

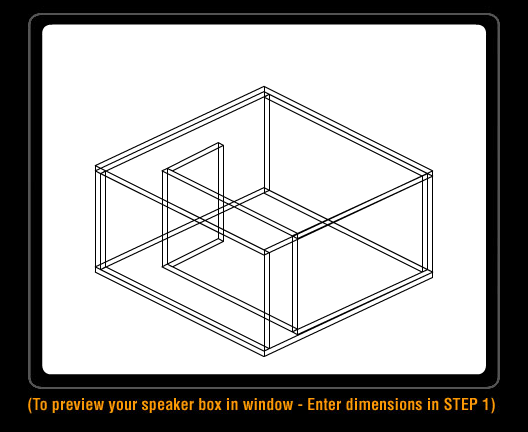

i went ahead and did one really quick using re audio software and came up with something like this. subs firing up

Upload

here are the specific dimensions
Upload

that should leave you room for sub displacement


Kyle Longbrake
Gold Member
Username: Kyle_lowe

Post Number: 1035
Registered: Apr-06
Posted on
oh, here is the link to the re box calculator if you want to play around with it yourself

http://reaudio.com/speaker_box/LPort_Box_Calc.html


Thomas
New member
Username: Teltic

Post Number: 2
Registered: Apr-10
Posted on
okay question... Can I put all 4 subs in one box? Or do I need to make individual boxes for each subwoofer?


GlassWolf
Platinum Member
Username: Glasswolf

Columbia, SC USA

Post Number: 13058
Registered: Dec-03
Posted on
the subs can share a single chamber.


Thomas
New member
Username: Teltic

Post Number: 3
Registered: Apr-10
Posted on
Okay so correct me if I'm wrong (I'm most likely wrong..) but I used that program and did this.

http://www.audiobahn.com/Audiobahn06/images/tech/2007/boxParams/Natural_box_specs.pdf
this site says I need .75 cu ft per sub... i have 4 subs so I need 3.0 cu ft.

I design a box with that program so I have 3.0 cu ft like so.


almost seems too easy, I have to be doing something wrong... any comments/criticism/tips?
image/bmpUpload


Thomas
New member
Username: Teltic

Post Number: 4
Registered: Apr-10
Posted on
image/bmpUpload
