Back to the drawing board.
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4369 Registered: May-07 | Well did not do too good today after getting metered at the local car show. Very disappointed with my score. I need to add more port area to the next box I build or have built. I'll still won my class by 6 dB, but I am not happy with the score. 151.0 db tl outlaw. |
|
Gold Member Username: Van_manBoston South, MA Post Number: 5262 Registered: Mar-06 | 151 is decent. What would that translate in a legal metering? Out law is what? when a door or window is open? Mic in the port? On the head rest? |
|
Gold Member Username: TejcurrentPost Number: 2197 Registered: Apr-07 | What equipment/class? Enclosure? |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4370 Registered: May-07 | Well chit!. Just noticed that the vid didn't load(posted the ot from my iPhone.. |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4372 Registered: May-07 | double-click on vid for more info. |
|
Platinum Member Username: InsearchofbassYork, Pennsylvania Post Number: 13829 Registered: Jun-04 | its a nice start anyway |
|

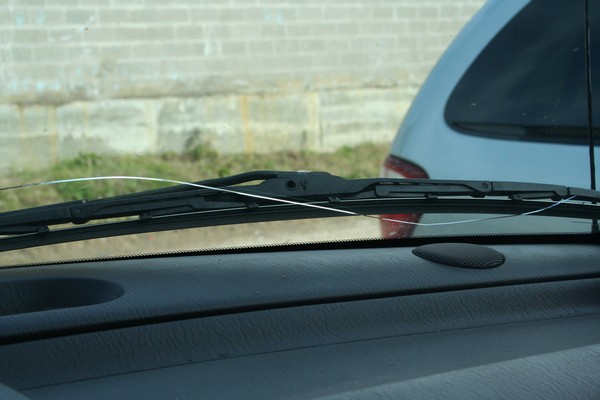

Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4373 Registered: May-07 | Mic on the kick panel or windshield and doors open or closed. |
|
Gold Member Username: HdubbTeam Revolution Post Number: 4296 Registered: Nov-04 | mark have you tried a box design with subs firing to the side and ports back? it might work. but im unsure. |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4375 Registered: May-07 | no hunter, I've never tried anything in this vehicle other than subs up port back. I'm sure that this setup can be a lot louder with more poert area.. i changed my design at the last minute when I designed the box wanting to maintain some musicallity. I'll likely build a f@rt box and swap em out for competition, or let someone like canaan design and build a box with aeroprts and plug one of em for daily. When the money can be freed up, i'll be looking to double up on power(adding a 2nd 5750) for competition and running one for daily. i changed very little for the competition (as far as settings), so doing 150's+ daily is more than enough for me. I'm not pushing the Heavyweights near hard enough with a single 5750 as you well know. The score really isnt that bad, I just expected a little better. Like I said earlier, i won my class by 5.5 db (someone improved their score from yesterday). Ide almost bet Canaan could probably gain -2-3 db with a one of his designs,. I know just enough about box building to get me into trouble. |
|
Gold Member Username: ZacdavisBeloit, Wi Post Number: 1768 Registered: Dec-03 | What vehicle are you using? |
|
Gold Member Username: Snowball123West Allis, WI Post Number: 3489 Registered: Oct-07 | ^ 2000 Jeep Grand Cherokee. |
|
Gold Member Username: SomedonniedudeIllinois Braaap MX Post Number: 3007 Registered: May-07 | Hmm...build a f@rt box for one of them? a single hw would love that power. |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7964 Registered: Mar-04 | Unless you are willing to go ahead and wall that Jeep, I would for get running 2 -18's. I bet you would be louder w/ 1 18" than you are w/ 2 now. |
|
Gold Member Username: ZacdavisBeloit, Wi Post Number: 1770 Registered: Dec-03 | This may sound goofy but build a tiny tiny 4 12" box, subs up, ports back in that vehicle, box pushed towards the front drivers side against the back seat. If you've ever seen thee old style 4 12" set ups people used to do for Rex's you'll have a really good start ;) I did a 156 in a Cherokee with about 7k rms with that type of sub set up. (outlaw) |
|

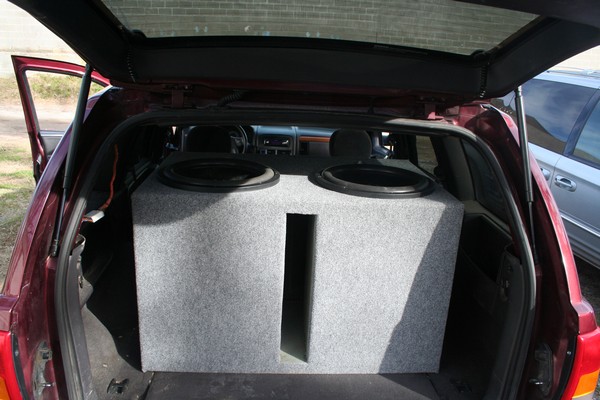

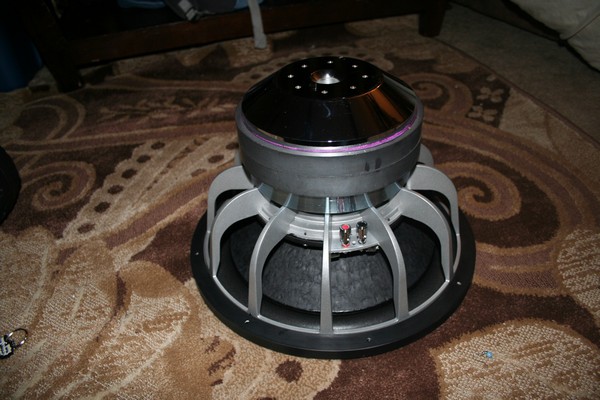

Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4377 Registered: May-07 | i'm running 2 15" HW V.2's in my 1999 Jeep Grand Cherokee Laredo 4x4. 260 amp DC Power Alt. 6 c+d tech. batts 100^2 ft. Fatmat, few runs of 0ga. power wire. Box is 7.5^3 ft after displacements with 80^2 in port, tuned to 40hz. on paper. Peaked @ ~47-48hz. I have since changed aroung the backseat area.. Added 1 rear seat and made the amp rack behind passenger seat built over battery bank. |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4378 Registered: May-07 | Canaan.. I was running 2 18" Alphas. Now they are 15" HW's. |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4379 Registered: May-07 |         |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4382 Registered: May-07 | input anyone? |
|
Gold Member Username: MendonmafiaUSA Post Number: 2025 Registered: Aug-06 | seems to me like it should be much louder, i did 145 sealed on the dash with 2 12" alphas tuned to 37hz on music with ~3500 rms in a trunk car....no clue what that correlates to on outlaw but i would imagine about a db just from opening the door and possibly another db with a tone so call it a 147. my ports were huge though 48" area per sub. I would say go for a bigger port. do like 20 " per cube and see how it does. musically the large ports killed the upper response though, at least in my application but the lows were brutal. i noticed that your voltage is dropping to right about 12 volts in the vid. seems like with a 260 amp alt and 6 batts and only 6krms that you shouldn't drop that low. maybe you have a bas connection somewhere, probably not but its something to check for. |
|
Gold Member Username: Dustin3Box Designer & Builder...Dustin Post Number: 5488 Registered: Oct-05 | I would give it a little more port area... |
|
Gold Member Username: HdubbTeam Revolution Post Number: 4301 Registered: Nov-04 | more port AND i would do pvc. lol i preach pvc. i gained over a db by putting it on my port edges |
|
Gold Member Username: The_image_dynamicSan Diego, California Post Number: 5702 Registered: Dec-06 | Mark totally nailed that tubby in blue... |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4390 Registered: May-07 | lol Brad.. Hunter, can u post a pic of exactly what your are referring to with the PVC? Thanks |
|
Platinum Member Username: GlasswolfColumbia, SC USA Post Number: 13002 Registered: Dec-03 | did you leave the kid in the box when you put the subs in? does it cause any port whistle? how much did your suspension sag when you forklifted that box into the back? |
|
Platinum Member Username: Rovin1 15 = 152.5 DBs ...Trinidad & T... Post Number: 16178 Registered: Jul-05 | ^^.... |
|
Gold Member Username: FrkkevinTeam DLSSuperNatural... Post Number: 7599 Registered: Nov-05 | change the slot port to be on the bottom with more port area as suggested. |
|
Gold Member Username: 04redmach1Giggidy, GA USA Post Number: 2715 Registered: Mar-06 | Maybe try little more port area and subs forward port back. I think that is the design that got very loud. Have to talk to AMI about that, he built it. Shoot me an email Mark, I will see whats up. lowhz01@yahoo.com |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4394 Registered: May-07 |
That was with 3 batts (in the vid). Currently unless I'm idling for a long time with it at full tilt it wont go below 14V. even then it only gets to ~13.6v at the least.. Glasswolf-If he had his way, he would still be in there.. As for the weight, well the batts outweigh the box/subs by a good margin... But it did take 2 people to lift it and it was a struggle.. As for the suspension sag, With the Cherokee being a 4X4, you cant see or notice any sag.. Fuel milage ~13 mpg. with system fuel milage ~15 mpg w/o system |
|
Platinum Member Username: GlasswolfColumbia, SC USA Post Number: 13014 Registered: Dec-03 | oh, you have a 4L i6 I see |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4396 Registered: May-07 | yessir.. unfortunately |
|
Platinum Member Username: GlasswolfColumbia, SC USA Post Number: 13018 Registered: Dec-03 | haha I had a '94 with the 4L and a 5sp manual, but mine was a grand cherokee. http://www.glasswolf.net/cars/jeep/index.html I sold that car back around '03 and went to a 2001 JGC Limited with the 4.7L |
|
Gold Member Username: Hittin1TEAM REVOLUTION, La. Lake Charles... Post Number: 4397 Registered: May-07 | Yeah, I would have liked to V8 a lot better.. Mine is also a JGC Laredo 4x4. 1999- 2004 share the same body style. |
|
Platinum Member Username: GlasswolfColumbia, SC USA Post Number: 13022 Registered: Dec-03 | yeah. WJ chassis. my older one was a ZJ. I liked that old AMC inline 6cyl, 4L. really tough engine. |
