Canaan's Avalanche 6th-order buildlog.
|

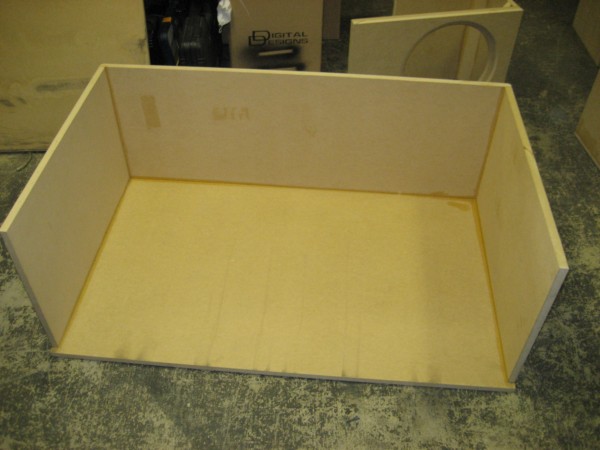

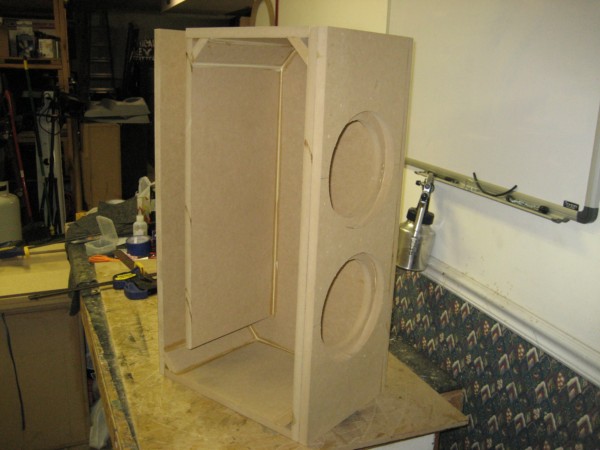

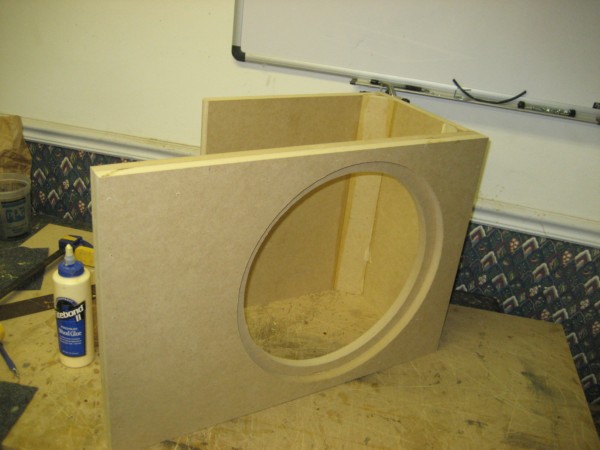

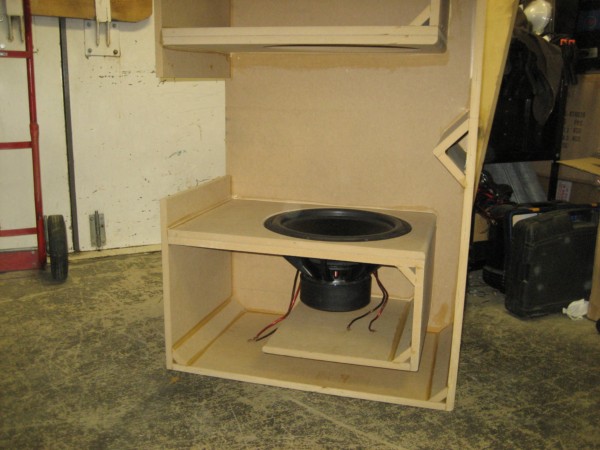

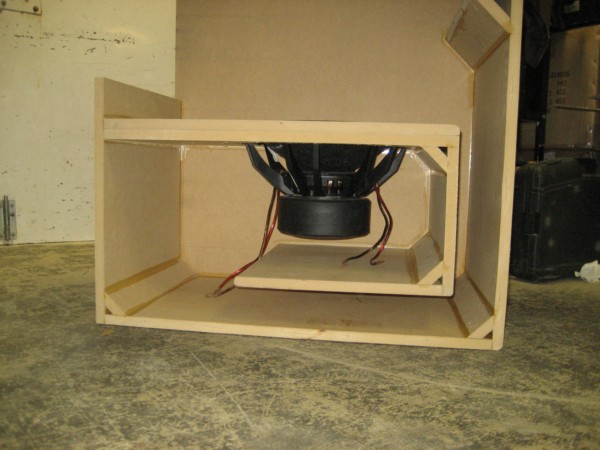

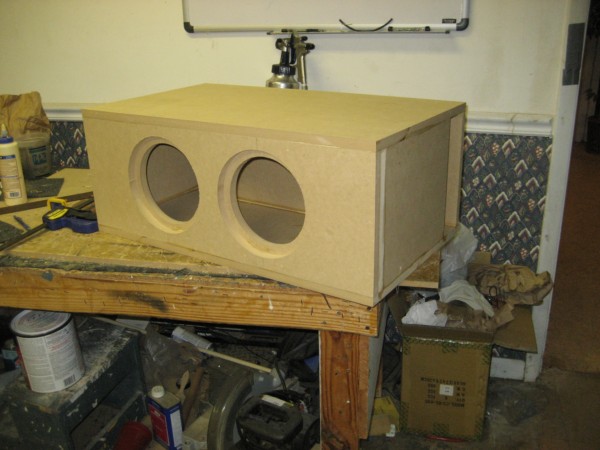

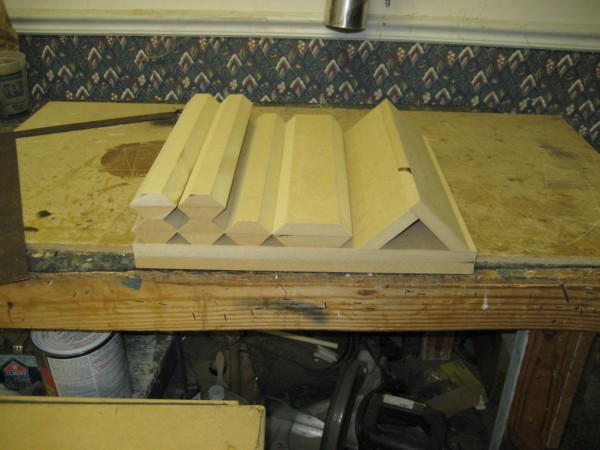

Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7829 Registered: Mar-04 | Well its been a long time coming, been without subs on and off since I bought the avalanche a about 6months ago. Got my DDA-series mids and highs in w/ the C4a awhile back, but only built the shell for my 2-DD3515 6th order. Been sticking single 10's and 8's in the shell to demo, did 144.x @ 47hz w/ a single DD2510 in a half-assed 6th order using the shell. Got my alarm/rs on, so now its time to actually build this thing! HELL of a lot of wedges:  The shell, allows me to have 1/2 the bed.  Double baffle w/ recessed subs. A few of the wedges going it.   Mocked up in the shell for a pic.     Also built a 2-DD1508 box for a customer today. 1.8cuft, ~37hz, recessed subs and wedges everywhere. Its for an '04 Mustang, going w/ a DDM80 for power.     I'll be back at it tomorrow. Not sure what color I'm going to paint the inside of my 6th order. Make some suggestions. Interior of the Avalanche is grey, exterior is black. Still have to deside on an amp for the 2 DD3515's too. I have an IA 20.1 for now, but going w/ a DD amp or 2 later. They are D1.5ohm |
|
Gold Member Username: Dustin3D&L Audio Tech.Dustin Post Number: 5227 Registered: Oct-05 | looks nice man. |
|
Silver Member Username: Armykyle1Ms Us Post Number: 858 Registered: Dec-08 | Can you give the outside deminsions of the box? What's the purpose of a 6th order. I don't know what the diff orders are lol |
|
Diamond Member Username: WingmanaliveWww.stainles... .ecrater.com Post Number: 21757 Registered: Jun-06 | Bass hitting strobes.  |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7830 Registered: Mar-04 | paul......no. no gheylites. kyle, this in a series tuned 6th order. low tuned ported bow firingi nto a high tuned ported chamber. i designed this one to have pretty flat responce from 30 to ~100hz. should a little boost down low ....30-45hz. outside demins are 49w * 19t * 30d. i plan on building an amp/batt rack in front of the box and wrapping it in black vinyl. |
|
Silver Member Username: Armykyle1Ms Us Post Number: 859 Registered: Dec-08 | So basically it helps get more out of the subs? |
|
Diamond Member Username: WingmanaliveWww.stainles... .ecrater.com Post Number: 21758 Registered: Jun-06 | You no like the 70/80's?  I keep forgetting you're all about 10/20+ years behind me...... |
|
Diamond Member Username: WingmanaliveWww.stainles... .ecrater.com Post Number: 21759 Registered: Jun-06 |   |
|
Silver Member Username: Armykyle1Ms Us Post Number: 860 Registered: Dec-08 | ROFL |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7831 Registered: Mar-04 | So, what color do you guys think I should paint the inside of the box? The subs and common chamber will be very visible. The front port is 12"w x 17.5"t. The 3515's have 6" carbon fiber dustcaps also...the same ones I ran in my '98 silverado awhile back. I'm finishing the box today. Came into the shop to work on it. Should have it shot together in about an hour...need to run to Lowes and get the paint. Thinking silver/grey? |
|
Silver Member Username: Armykyle1Ms Us Post Number: 870 Registered: Dec-08 | Outside black inside grey? I say lighter color in the chamber. So is this box more for SQ or spl or inbetween? I'd like to do something diff for my car but I want 65/35 SQ/SPL. either with the D6s or RL-is. You guys are like 4hrs from the coast right? I don't think my local shop built my 3 10 box right |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7832 Registered: Mar-04 | I'm in Monroe, La. Just north of I-20. This box is designed to (hopefully, lol) sound great and hammer the lows...30-45hz. But still play 50hz-80hz pretty flat. |
|

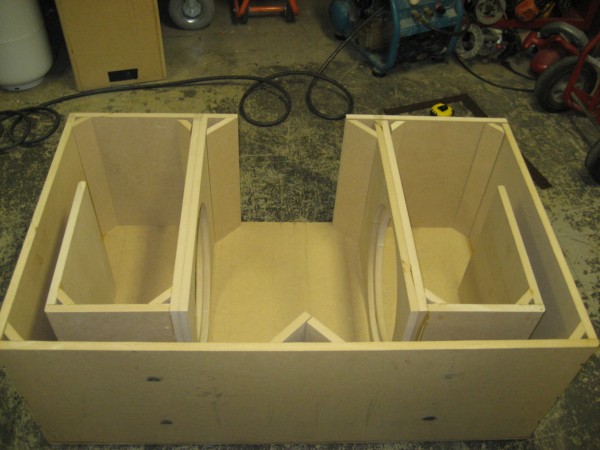

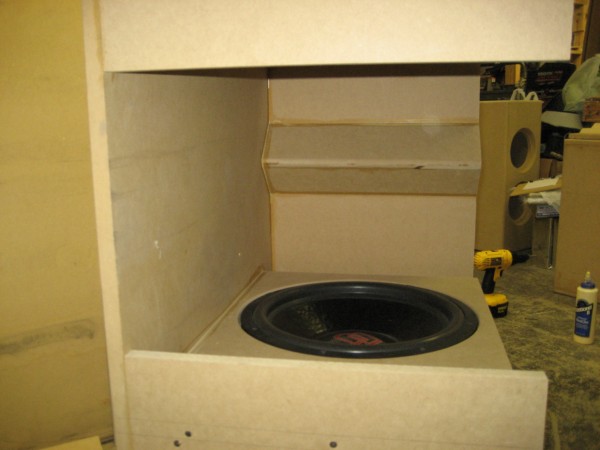

Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7833 Registered: Mar-04 | Pretty much put together, starting the amp/batt rack now.    Pretty much what it will look like when you look thru the port.  |
|
Silver Member Username: Armykyle1Ms Us Post Number: 873 Registered: Dec-08 | Really nice man. How would you setup 4 10s? I know you guys do good work. That van was sick. I'd like to see yalls shop |
|
Silver Member Username: DangerangerFredericktown, Ohio United States Post Number: 221 Registered: Mar-09 | what would you set your amps filters to? and do you plan on putting leds in the box? |
|
Gold Member Username: Tatonka-[Team Audible Insanity]- Post Number: 3248 Registered: Mar-07 |
I don't think he wants L.E.Ds, if he did I have alot laying around lol. Canaan, you could always go to walmart and pick up some rope lights and run them down your port  |
|
Platinum Member Username: Rovin1 15 = 152.5 DBs ...Trinidad & T... Post Number: 15801 Registered: Jul-05 | i say use a same shade red as the DD logo ... |
|
Silver Member Username: DangerangerFredericktown, Ohio United States Post Number: 223 Registered: Mar-09 | lol so gheylights = leds. gotcha |
|
Gold Member Username: Loc_outSoCal Post Number: 3066 Registered: Feb-05 | Looking good Canaan. Maybe you can design me a new box for my avalanche. |
|
Silver Member Username: Armykyle1Ms Us Post Number: 883 Registered: Dec-08 | I'm deff interested to hear this. Red LEDs would be cool |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7835 Registered: Mar-04 | Kyle, There is a USACi comp coming up in Jackson at Top Dollar Pawn on 1/30 at noon. I'll either have the van or my Avalanche there hopefully. As for the lights, I'll have to see how dark it is inside the box after I get it in the truck. |
|
Silver Member Username: DangerangerFredericktown, Ohio United States Post Number: 230 Registered: Mar-09 | so how do you set the filters on your amp with that type of box? |
|
Platinum Member Username: InsearchofbassYork, Pennsylvania Post Number: 12935 Registered: Jun-04 | Looking good |
|
Silver Member Username: Armykyle1Ms Us Post Number: 893 Registered: Dec-08 | Thas in the ghetto lol. But I'll come by. Its about 2hrs my driving lol. Let you hear the 3 10s lol see if you can build a better box cause I don't like my current one |
|
Gold Member Username: FrkkevinTeam DLSSuperNatural... Post Number: 7512 Registered: Nov-05 | canan you should post this up on carstereoforum |
|
Gold Member Username: Van_manBoston South, MA Post Number: 5149 Registered: Mar-06 | Reminds me of "the Wicked one" box from.... http://www.decware.com/whorn.htm |
|
Bronze Member Username: Re_xxxGreen River, Wyoming U.S.A Post Number: 75 Registered: Apr-07 | Looks good! How well do those type of banpass's meter? Never been a bandpass kind of guy, but i am intrigued |
|
Silver Member Username: DomenicoBanginGMCArizona Post Number: 402 Registered: Apr-09 | vids? |
|
Gold Member Username: Tatonka-[Team Audible Insanity]- Post Number: 3263 Registered: Mar-07 |
I've had my build log on there for 3 days. Only one reply and 16 views. |
|
Platinum Member Username: InsearchofbassYork, Pennsylvania Post Number: 13021 Registered: Jun-04 | LOL If thats not a dead forum |
|
Silver Member Username: Simple_smithLapeer, Michigan United States Post Number: 213 Registered: Dec-08 | update? maybe? |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7873 Registered: Mar-04 | Yes, will update soon. I built the box and it has just been sitting in the back of the shop. NickV is laying fiberglass on his pods right now, we are going to get on trim panels and amp rack for my Avalanche tonight. |
|
Silver Member Username: Simple_smithLapeer, Michigan United States Post Number: 214 Registered: Dec-08 | nice. what kind of numbers are you hoping for? |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7874 Registered: Mar-04 | Not really looking for #'s, more for flat response. Daily 148ish will do just fine, great sound is the plan...we have the van to be a little louder. |
|
Silver Member Username: Simple_smithLapeer, Michigan United States Post Number: 215 Registered: Dec-08 | true, true. how did you design this box? Win ISD? |
|
Gold Member Username: SouthernrebelMonroe, Louisiana Team Audible... Post Number: 7875 Registered: Mar-04 | Well, somewhat...more based some ideas I have been working on. You can't really plot in-cabin response w/ box building programs like WinISD and BBP6. My ideas and calculations seemed to have worked out in SuperGumby's build over on CA.com...He designed the box and I ran his box design thru my calcs and the response he say in-cabin were pretty much dead on w/ my predictions. Hopefully its not a fail, lol |
|
Silver Member Username: Simple_smithLapeer, Michigan United States Post Number: 216 Registered: Dec-08 | yeah definitely. have you done any 8th order boxes? (bandpass boxes fascinate me lol) |
|
Platinum Member Username: InsearchofbassYork, Pennsylvania Post Number: 13188 Registered: Jun-04 | I want to see what this thing does when its finished. Common man hurry up. |
|
Gold Member Username: Dustin3Box Designer & Builder...Dustin Post Number: 5287 Registered: Oct-05 | It looks like it should work out pretty well canaan. :D |
