Beefy New subs to replace the 18" Alphas *PICS*



Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4192
Registered: May-07
Upload
Upload
Upload
Upload

Upload
Upload
Upload
Upload

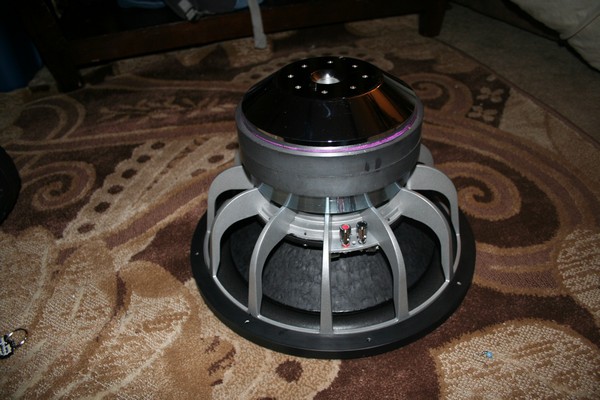

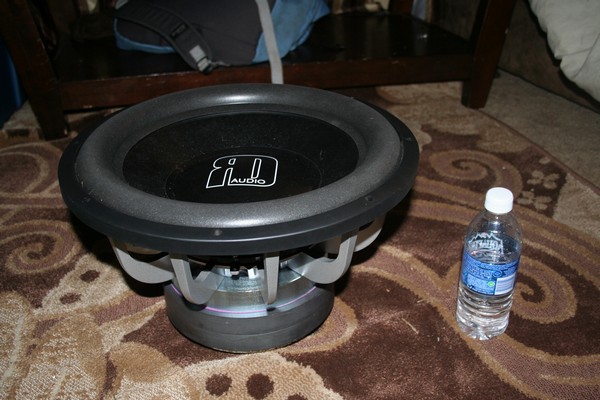

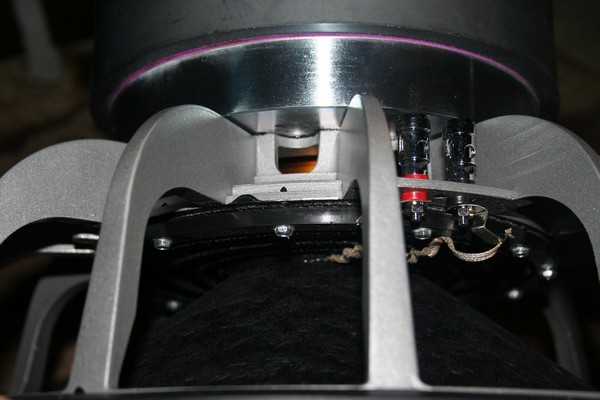

The smaller sub is a 15" Sonance. It is pictured for a reference/ size comparison. Only one of the new subs is pictured.. The other is still in the original box.I hoping to gain a few DB's over the 18" alphas and being able to put at least 1/2 of the rear seats in (for son's car seat). Have to figure out where the batt's and amps will fit into equation. without having to change up Power wires too much..


Diamond Member
Username: Wingmanalive

Www.stainles... .ecrater.com

Post Number: 21730
Registered: Jun-06
Nice ear rings you have there.


Gold Member
Username: Stateprop486

Phnom Penh Cambodia

Post Number: 1854
Registered: Jan-08
nice headband you have for your son there. lol


Gold Member
Username: Somedonniedude

Illinois Braaap MX

Post Number: 2892
Registered: May-07
Sick!


Gold Member
Username: Kingandsons07

TEAM NEBRASKA Lincoln,NE

Post Number: 1119
Registered: Aug-08
can't wait to see this build log =)


Gold Member
Username: Snowball123

West Allis, WI

Post Number: 3370
Registered: Oct-07
still going with RD.

you have guts Mark.


Silver Member
Username: Armykyle1

Ms Us

Post Number: 844
Registered: Dec-08
That's gonna be nasty.


Gold Member
Username: Stateprop486

Phnom Penh Cambodia

Post Number: 1855
Registered: Jan-08
i still got my 15" rd alpha snow ;)


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4193
Registered: May-07

quote:

nice headband you have for your son there. lol




lol yeah.. it is the magnet boot for the sonance.. He was enjoying the hell out of it. As you can see, He likes to be the center of attention..
I'll be building 2 boxes at the same time.. Both boxes will be for 2-15" HW's.. The other box is for a forum member who lives in Baton Rouge.. He has the Hw Ground Pounders.. They will be going in a 2004 Impala..He is waiting for his D9 to arrive. Will be a nasty Impala when it is done.. He's buying all the MDF for both boxes.and will be helping me with some of the more monotinous tasks.. We'll make a day out of it... I figure that's a fair deal and I don't mind helping a member out since he is willing to get decent equipment and do the nessessary upgrades to properly run that much power...
My HW's are the Heavier duty SPL versions.. I'll be running the same RD5750 but I will be able to run it to it's full potiential as opposed to when I was running the Alphas.. . Upgraded batts and adding more deadner.. I'm gonna try a different box design for the Hw's.. Should be interesting..


I can't tell you how pleased I am with the DC Power alt.. The best decision I've made was getting rid of the Mechman..


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4194
Registered: May-07
Yeah, I miss my Alphas too.. The Aq's have done a fine job filling in until this is completed


Gold Member
Username: Kingandsons07

TEAM NEBRASKA Lincoln,NE

Post Number: 1123
Registered: Aug-08
i'd like to work with one of those DC alt in my next setup. but i can't make up my mind DC or Ohio hmm. lol

great work Mark this should be a great setup!


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4195
Registered: May-07
I just wish I was as talented a box builder as some of the peeps on here.. Thanks Q


Gold Member
Username: Kingandsons07

TEAM NEBRASKA Lincoln,NE

Post Number: 1124
Registered: Aug-08
your welcome Mark.

and i feel ya on the box stuff. if i was a good craftsmanship i'd do my own stuff :-(

bj does a great job but don't see him here any more.

i have been looking in to mike with ami and his stuff just looks so amazing


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4197
Registered: May-07
yeah, the design I am going to base mine off of is one I found online.. Turns out that it was one of Mike's boxes. lol..


Platinum Member
Username: Rovin

1 15 = 152.5 DBs ...Trinidad & T...

Post Number: 15790
Registered: Jul-05

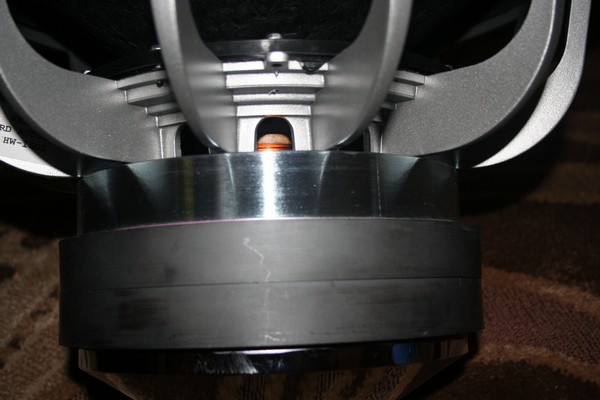

sonance motor looks like a baby next to that SHW ....


Gold Member
Username: Kingandsons07

TEAM NEBRASKA Lincoln,NE

Post Number: 1127
Registered: Aug-08
nice Mark lol

Mike's design are really good, well work the drive when i'm ready


Gold Member
Username: Wolf_hound

Phoenix, AZ

Post Number: 1114
Registered: Sep-05
Werd snow


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4211
Registered: May-07
ALMOST DONE. FORGOT TO TAKE PICS OF STEP BY STEP PROCESS, BUT I DO HAVE SOME PICS.. WILL POST EM WHEN I GET A CHANCE. sorry about the caps.

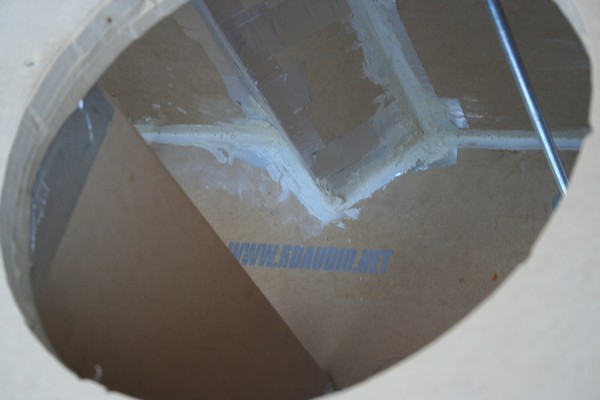

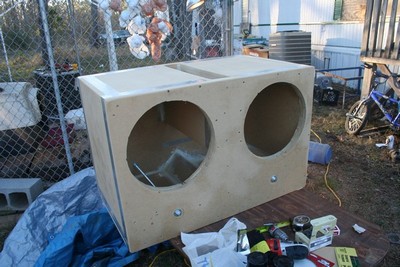

RotoZip sucks for sub cutouts.. Even with the circle jig. for that reason i opted for the double baffled top mount w/ dual all-thread for added bracing. Trying out a couple of new things... Using a aluminum tape (inside and outside) as well as caulk(inside only) to insure a good seal.. Way overkill. This tape is special orde3red and used primarily when manufacturing aircrafts. It will bleed you out if you are not carefull. lol The weather has not been ideal for box building so I have been doing what I can outside untill It gets to cold to function. then I bring this heavy mofo inside and do what I can in there. most of the rotozip work was done indoors which the old lady just LOVED. Good thing we have a new vacuum.. waiting for paint to dry then I need to carpet and install wiring and subs. It doesn't look as good as the professional box builders on here. but I'm sure it will prefom well. (fingers crosswed) Then I will start the complete process over again for edward and his 2 HW's..


Silver Member
Username: Kickerman

Post Number: 244
Registered: May-06
lol i cant wait


Gold Member
Username: Snowball123

West Allis, WI

Post Number: 3385
Registered: Oct-07
Hey Mark, you still interested in getting rid of the AQ's?

I might take them off your hands now.


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4212
Registered: May-07
WITH OR W/O BOX AND/OR AMP?


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4214
Registered: May-07

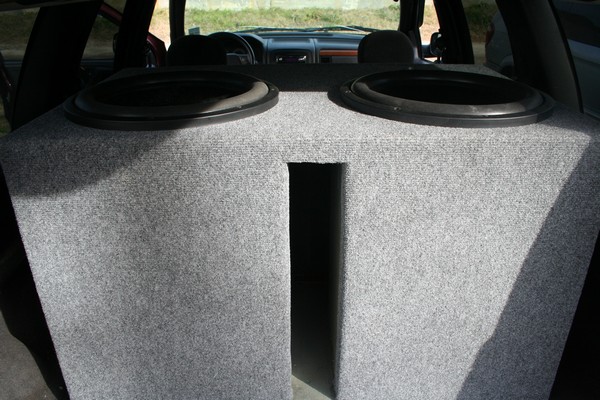

a few pics

Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload


Gold Member
Username: Snowball123

West Allis, WI

Post Number: 3386
Registered: Oct-07
WITHOUT THE BOX AND AMP.


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4215
Registered: May-07
shoot me an offer + actual shippiung and PP fee's


Gold Member
Username: Snowball123

West Allis, WI

Post Number: 3389
Registered: Oct-07
Sorry I didn't answer your call Mark.

But what are you thinking about for a price?

I have no idea how much to offer you, but the price you offer is good I'll take them off your hands.


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4217
Registered: May-07

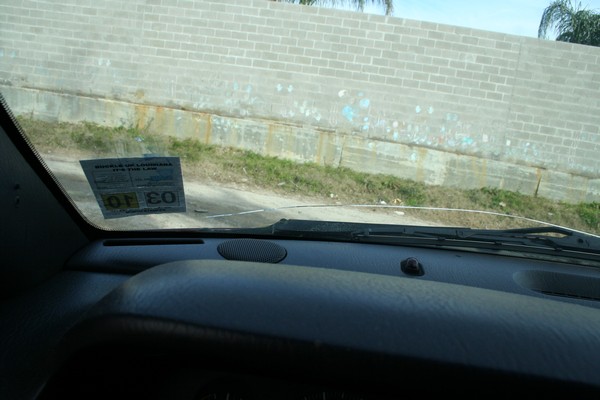

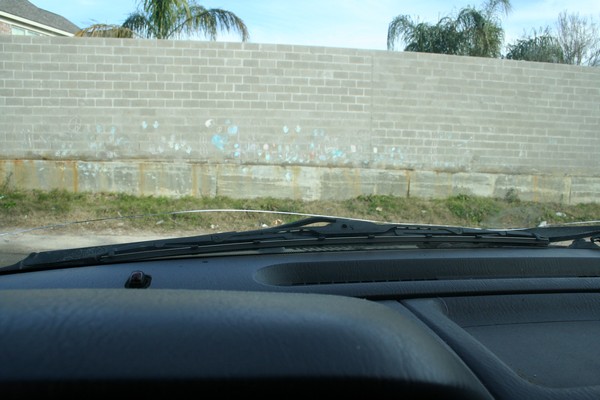

repeat pics of cracked windshield thread.
45" crack along the bottom of what was a perfect windshield. And yes, they are a lot louder than the 18" Alphas!.
Upload
Upload
Upload
Upload
Upload
Upload
Upload


Gold Member
Username: Kingandsons07

TEAM NEBRASKA Lincoln,NE

Post Number: 1167
Registered: Aug-08
WE NEED VIDEO RIGHT NOW!!!!!!!!

NOT LATER!























NOW!!





























thanks mark lol

must be nice


Bronze Member
Username: Re_xxx

Green River, Wyoming U.S.A

Post Number: 74
Registered: Apr-07
Looks good!

HW's are one of the top, if not the baddest ground pounder subs made.


Silver Member
Username: M0nstar

Toledo, OH U.S.

Post Number: 424
Registered: Dec-08
holyyyyy CHIT!


Platinum Member
Username: Insearchofbass

York, Pennsylvania

Post Number: 13332
Registered: Jun-04
You cracked your windshield with the last subs and you want to go louder.


Gold Member
Username: Hittin1

TEAM REVOLUTION, La. Lake Charles...

Post Number: 4285
Registered: May-07
I cracked my windshield with this new setup (on the first day).. I don't want it any louder for daily, but I wouldn't mind doubling up the power for competions only.

Since the subs upgrade I've :
-Sound deadned the hatch window and filled in the window area with a hard foam and spray foam , covered by the same carpet tat was used on box. On top of keeping the window from opening and rattling due to the pressure, I extended the carpet to reach into the hatch lining helping it do the same. Nowhere near as noisy and a lot less hatch flex.
removed the keeker linces plate fram and fat matted behind licese
- sound deadned the floor in cargo area
- filled in some body panel spots with spray foam
-pulled batts, amps, amp rack, ect out.
-re-installed driver-side rear seat for sons car seat (when needed)
-re-configured all 6 rear batts and reshaped the buss-bars to fit the different levels

painted the wood to be used as amp racks which will strattle all 6 batts all ina straight line between the pass side front seat and sub box.
still need to re-run some wires, build the racks mount the amps, crossovers (comp sets) and re hook all the power wires.


Gold Member
Username: Mendonmafia

USA

Post Number: 1916
Registered: Aug-06
top plate anyone? how will hw's do on 2-3k rms i might try them out.
