Box build (lots of pics)



Silver Member
Username: Dlavante

D&L Designs, Daniel Tigard, Or, USA

Post Number: 216
Registered: Feb-07
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload
Upload


Silver Member
Username: Cozce

St. Louis ILLside, Pronounced: ... U.S.A.

Post Number: 805
Registered: Mar-08
In for vids.


Silver Member
Username: Dlavante

D&L Designs, Daniel Tigard, Or, USA

Post Number: 217
Registered: Feb-07
The specs are 7.5 cubes at 38hz. We got some testing done yesterday but tonight and tomorrow are going to be the real tests. A local dj will be using it an event for 4+ hours tonight and tomorrow night it will be demoed for a local club looking for some new subwoofers


Gold Member
Username: Dustin3

D&L Audio Tech.Dustin

Post Number: 4984
Registered: Oct-05
Yep. Daniel and I are both really anxious to see how they will sound tonight. Put the Vid up daniel


Gold Member
Username: Dustin3

D&L Audio Tech.Dustin

Post Number: 4985
Registered: Oct-05

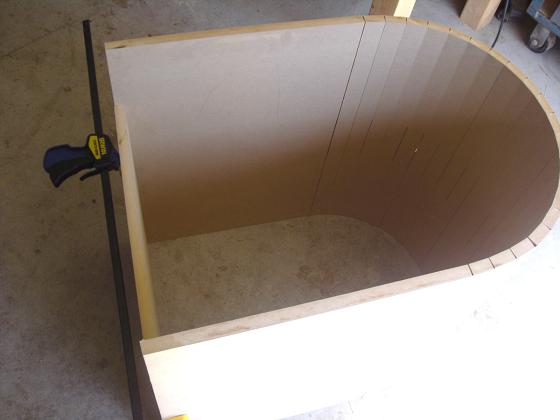

We also resined the whole inside of the back wall (where the kerfs are)


Silver Member
Username: Dlavante

D&L Designs, Daniel Tigard, Or, USA

Post Number: 218
Registered: Feb-07
The videos didn't turn out very well. Ill get a couple of good vids tonight


Gold Member
Username: Jakeyplaysbass

St. Louis, MO / ASU

Post Number: 3686
Registered: Jul-05
Looks very clean.

Specs on everything?... subs, box, etc.


Silver Member
Username: Dlavante

D&L Designs, Daniel Tigard, Or, USA

Post Number: 220
Registered: Feb-07
18" modified BTL. 7.5 cu ft net. 38hz. 168lbs total weight. It will be powered by a Behringer EP2500 The amp has been tested at 1900-2100wrms at 4ohms. The lowpass will be set for 125hz and the subsonic set at 35hz, both at a 12db/oct slope. still needs handles but we didnt have to time get them from PE


Platinum Member
Username: Rovin

1 15 = 152.5 DBs ...Trinidad & T...

Post Number: 15272
Registered: Jul-05
good job ! .....


Silver Member
Username: Dlavante

D&L Designs, Daniel Tigard, Or, USA

Post Number: 223
Registered: Feb-07
thanks rov, ill have some vids up in a few. last nights "test" was very successful. we ran it on a solid 2000wrms for at least 5 hours with no problems, and the dj said he had never heard anything like it before and that it hit the lows better than the quad 18" setup he used a few nights ago.

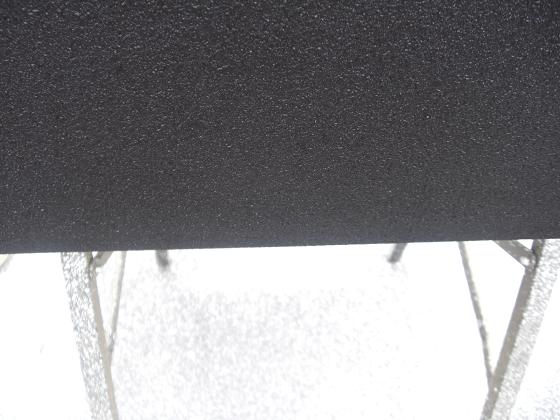

im also really impressed with that behringer amp. It ran all night while only getting warm to the touch, and the clip indicator never came on. the only problem im running into now is the finish
